TL180 Galvanized Steel Cable Carrier with Integral Hole Stay (115x300mm)

The TL180 galvanized steel cable carrier is engineered for heavy-duty industrial applications requiring maximum load stability, high wear resistance, and reliable cable protection. Featuring a 180mm pitch and an internal clearance of 115mm height by 300mm width, this heavy-duty steel drag chain incorporates an integral unsplit hole stay (profile aluminum stay) designed to isolate each hydraulic line and electrical conductor. By eliminating friction and movement between cables, this zinc-coated steel cable track guarantees optimal operational safety in high-stress environments. Furthermore, flexible OEM/ODM options are available—the material, inner and outer width, as well as the stay bar structure can all be customized to meet your specific machine requirements.

TL180115144300 Technical Parameters

Precision Stamping & Side Plate Fabrication

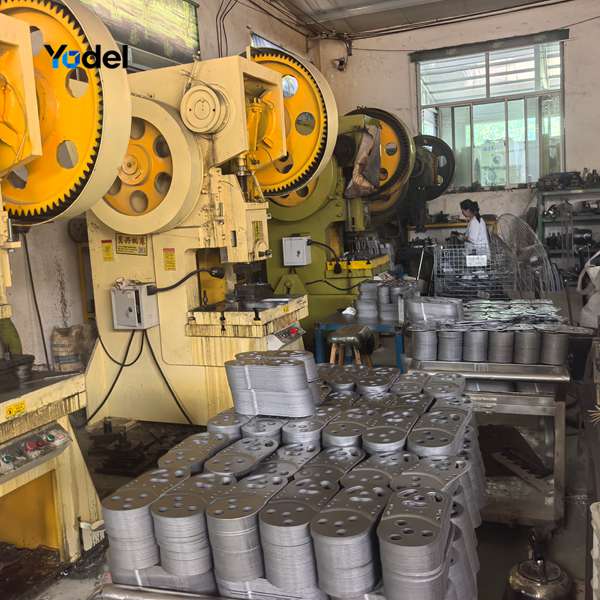

The structural integrity of our galvanized steel cable carrier originates from precision cold-stamping manufacturing. Each side link is blanked from high-tensile carbon steel plate before undergoing a full electro-galvanizing process to ensure complete rust resistance and smooth joint articulation. We also offer material customization such as hot-dip galvanizing, stainless steel (SS304/SS316), or reinforced plate thickness to adapt to extreme operating environments.

Customized Solutions for Specialized Applications

To accommodate various machinery designs, we provide full custom manufacturing services for our steel cable carriers:

• Material Options: Available in electro-galvanized carbon steel, hot-dip zinc-coated steel, SS304, or SS316 stainless steel for aggressive chemical or marine environments.
• Custom Dimensions: Inner width and outer width can be tailored precisely to match your cable bundle arrangement and available installation space.

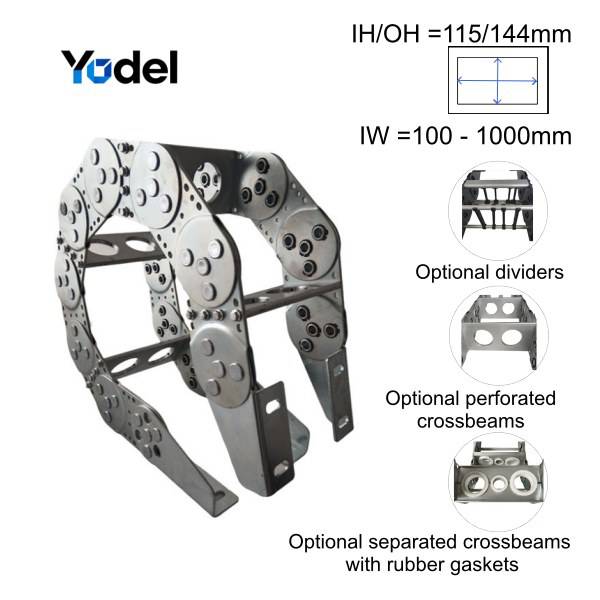

• Flexible Stay Structures: Choose from integral unsplit hole stays, split aluminum stays with plastic separators, or fully enclosed steel covers for total protection against debris.

Standardized Component Inventory & Modular Assembly

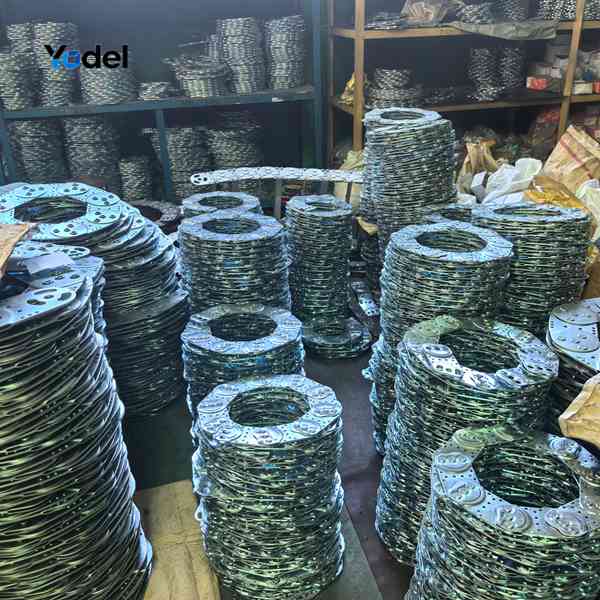

To support short delivery lead times for large-scale industrial projects, we maintain extensive stock of stamped side links and zinc-coated joint pins. The 180mm pitch design reduces total link joints per meter, reducing overall wear while significantly increasing self-supporting capacity over long travel distances.

Why Choose the Integral Unsplit Hole Stay Design?

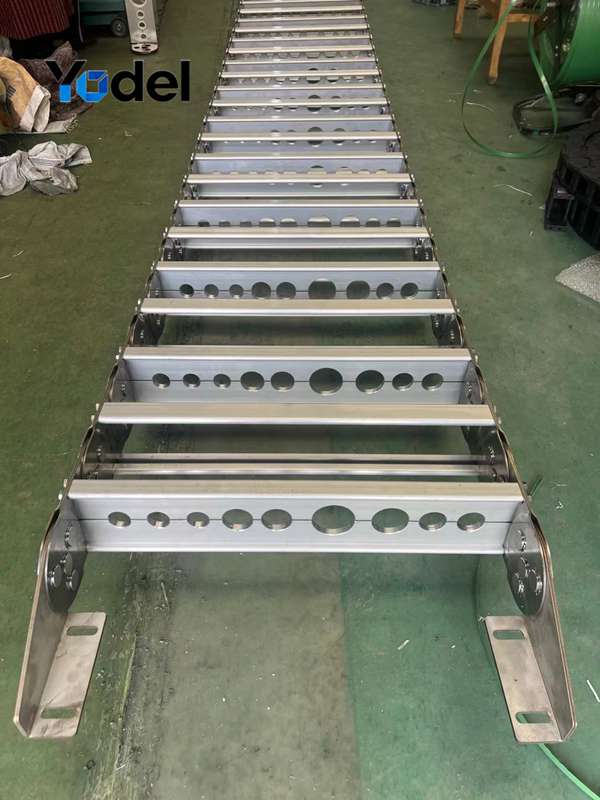

For heavy machinery equipped with rigid hydraulic hoses and large-diameter power cables, traditional plastic separators can suffer fatigue failure. Our TL180115144300 model features a solid aluminum profile stay with precision CNC-drilled pass-through holes.

Key Advantages of the TL180 Steel Drag Chain:

• Zero Cable Abrasion: Each hole is customized to the exact outer diameter of your cable/hose, preventing lateral shifting and internal friction.
• Heavy Load Capacity: Extruded aluminum crossbeams maintain structural rigidness across the full 300mm inner width without sagging.
• Corrosion Resistance: High-grade electro-galvanized coating protects steel side plates against moisture, oil mist, and industrial splashing.
• Smooth Operation: Optimized 180mm pitch curvature ensures quiet movement along crane runways and machine tool guide tracks.

Factory Pre-Assembly & Quality Inspection

Every galvanized steel cable carrier is fully assembled and test-run on our inspection floor prior to shipment. End mounting brackets are customized with mounting hole patterns according to client equipment requirements, ensuring plug-and-play installation upon arrival.

Typical Operating Environments

The TL180 heavy-duty zinc-coated steel cable carrier is specifically suited for demanding industrial sectors:

1. Overhead Crane & Gantry Systems: Providing long-travel cable support with minimal sag along runway beams.
2. Heavy CNC Machine Tools: Protecting hydraulic hoses and feedback cables against hot metal chips and coolant spray.
3. Steel Mills & Foundry Equipment: High mechanical strength withstands ambient heat and heavy mechanical impacts.
4. Oil & Gas Transfer Units: Isolates thick high-pressure fluid lines for safe, tangle-free operation.
