TL125 Stainless Steel Drag Chain TL12570100250 for Extreme Environments

Our premium TL125 stainless steel drag chain (Model: TL12570100250) is specifically engineered to provide robust cable and hose protection in demanding industrial applications. Manufactured from high-grade stainless steel (SUS 201, 304, 316, 316L), this heavy-duty cable carrier withstands severe corrosion, high temperatures, intense mechanical impacts, and heavy debris. With a pitch of 125mm, an inner height of 70mm, an outer height of 100mm, and an inner width of 250mm, model TL12570100250 delivers dependable, smooth, and long-lasting linear guidance for heavy hydraulic lines and power cables.

Technical Specifications

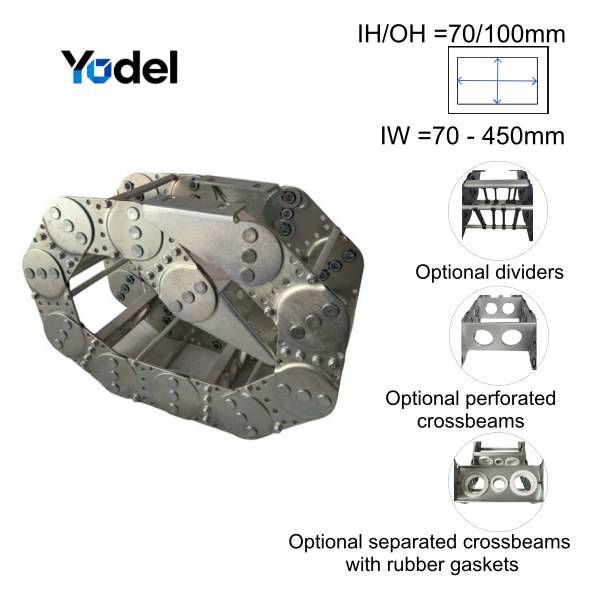

Versatile Stay Configurations and Flexible Arrangements

To accommodate diverse cable layout requirements, our TL125 stainless steel drag chain (TL12570100250) features multiple stay frame designs:

• Split T-Frame Stay: Allows quick installation and easy maintenance without dismantling connected cables or hydraulic hoses.
• Hole Stay & Profile Hole Stay: Precision-drilled or machined aluminum/stainless steel stays that hold each cable and hose in an isolated position, preventing friction, intertwining, and wear.

The stay arrangement for model TL12570100250 can be tailored based on load and weight requirements. Choose between stays positioned on every link for maximum weight support and rigidity, or on every second link to optimize weight without compromising integrity. Different stay structures can also be mixed within a single chain assembly for specialized industrial applications.

Heavy Industrial Applications

Thanks to its all-metal construction and high heat dissipation, the TL125 stainless steel drag chain excels in challenging operating conditions across multiple industries:

• Steel Mills & Foundries: Ideal for guiding hydraulic pipes and electrical cables near molten steel transport, rolling mills, continuous casting lines, and blast furnaces exposed to hot slag and radiant heat.
• Aluminum Plants: Resistant to corrosive chemical fumes and aluminum dust in smelting and extrusion processes.
• Heating Furnaces & Heat Treatment Facilities: Provides structural stability and reliable linear movement in extreme high-temperature zones where synthetic plastic carriers deform.
• Steel Mill Material Handling: Protects heavy cables on transfer cars, overhead cranes, ladle cars, and automated material handling equipment under high vibration and heavy loads.

Custom Engineering, OEM & ODM Services

If the standard dimensions or configurations of model TL12570100250 do not perfectly match your machinery layout, we offer comprehensive OEM and ODM services. Our engineering team can fully customize:

• Special inner widths ($W_i$) and bending radii ($R$).
• Custom hole stay patterns with or without protective rubber rings.
• Special stainless steel alloys (e.g., 316L for marine or chemical environments).
• Custom mounting bracket hole patterns for seamless retrofitting onto existing machinery.

Contact our technical support team today to receive a tailored quotation and engineering drawing for your custom TL125 / TL12570100250 stainless steel cable carrier project!
