Inner Height: 45mm(1.77in)
Inner Width: 50-250mm(1.97-9.84in)
Outer Height: 65mm(2.56in)
Outer Width: 77-277mm(3.03-10.90in)
Bending Radius: R75/100/125/150/175/200/250/300mm(2.95/3.94/4.92/5.91/6.89/7.87/9.84/11.81in)
Pitch : 68.1mm(2.68in)
Links per Meter: 15 pcs
Max cable diameter:40.5mm
Structure: non-openable enclosed type
End brackets :rectangular connectors
Material: engineering Nylon
Length: cut to length / customization
Color :black body with yellow pins

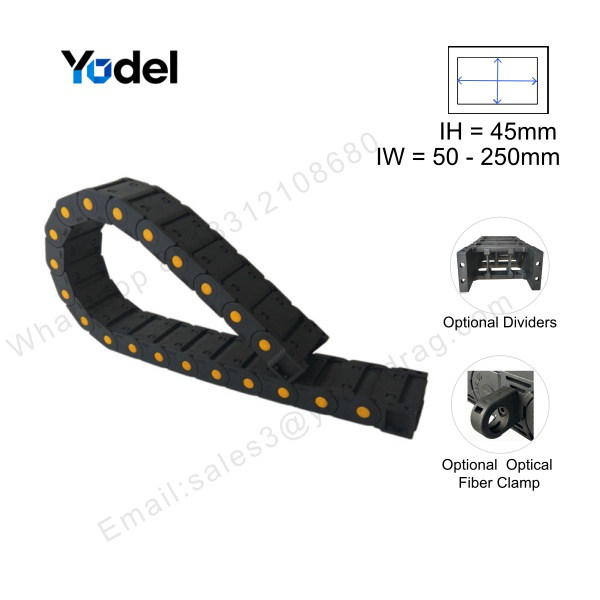

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link
MOQ : 1Meter or Set
Custom available (logo /color )

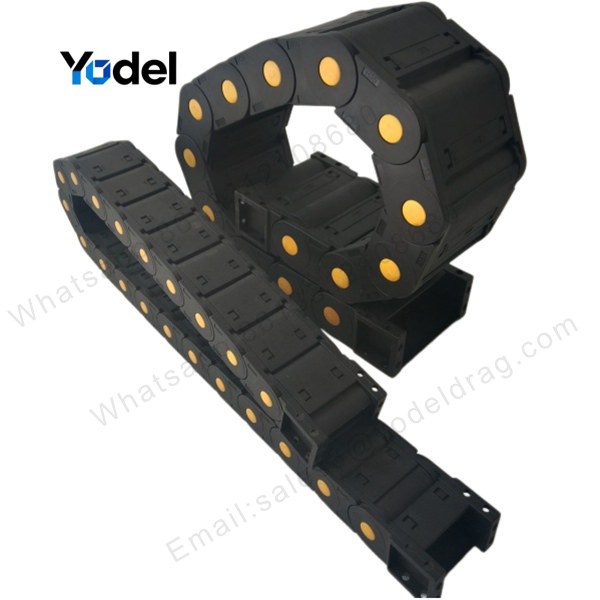

The 45x150 enclosed nylon drag chain is a heavy-duty, dust-proof cable carrier engineered from high-grade PA66 engineering nylon—delivering high strength, exceptional wear resistance, and excellent oil resistance for dusty and debris-laden worksites. Commonly searched as a 45x150 CNC cable carrier, enclosed nylon drag chain 45x150, or 45x150 dust-proof cable track, this model features a 45mm inner height and a generous 150mm inner width. It accommodates up to 12 standard cables, power lines, or hydraulic hoses up to 40.5mm in outer diameter, making it an ideal choice for large cable and hose bundles in industrial machinery where dust, debris, coolant, and sparks pose a constant threat to cable integrity.
|
Parameter |
Value |
|
Inner Height |
45 mm |
|
Inner Width |
150 mm |
|
Outer Height |
65 mm |
|
Outer Width |
177 mm |
|
Pitch |
68.1 mm |
|
Bend Radius |
R75 R100 R125 R150 R175 R200 R250 R300 |
|
Max Cable OD |
40.5 mm |
|
Material |
PA66 |
|
Structure |
Enclosed Type |
|
Operating Temp |
-40°C to +130°C |
|
Optional Configurations |
Inside separators / optical fiber clamps /steel mounting brackets /Color /Logo |

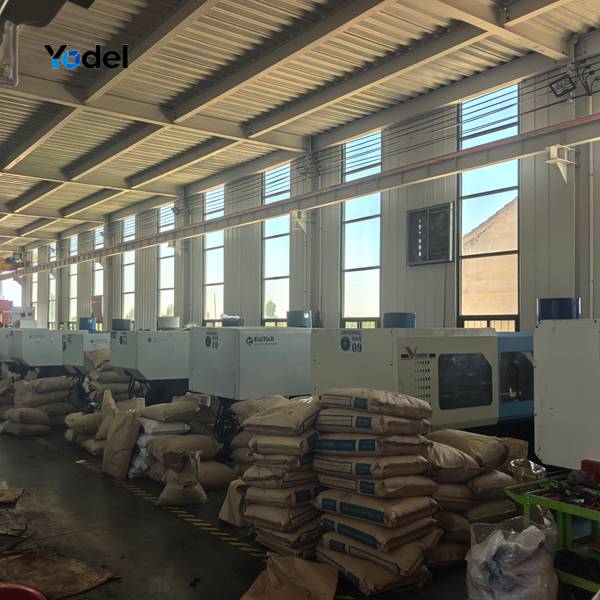

Every meter of our nylon drag chain is produced using premium PA66 nylon raw materials stored in controlled warehouse conditions. By strictly avoiding recycled plastics or low-tier blended compounds, we ensure high tensile rigidity, flame retardancy, and fatigue endurance over millions of motion cycles. Advanced multi-cavity injection molding equipment crafts each link to precise dimensional tolerances, guaranteeing low noise and smooth joint articulation under heavy cable loads.

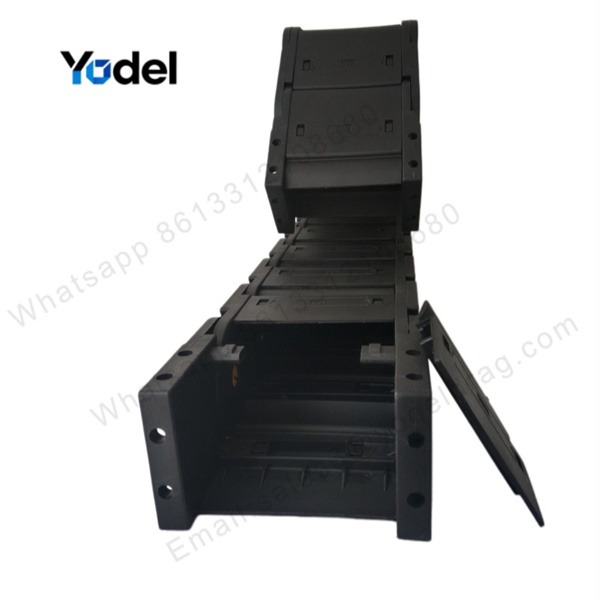

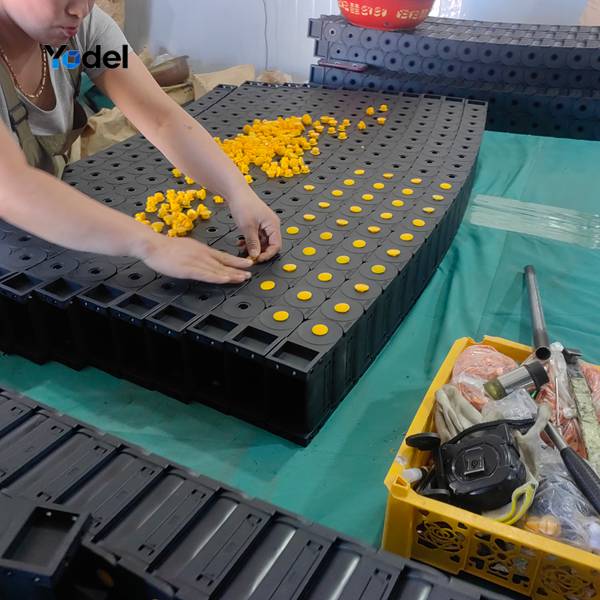

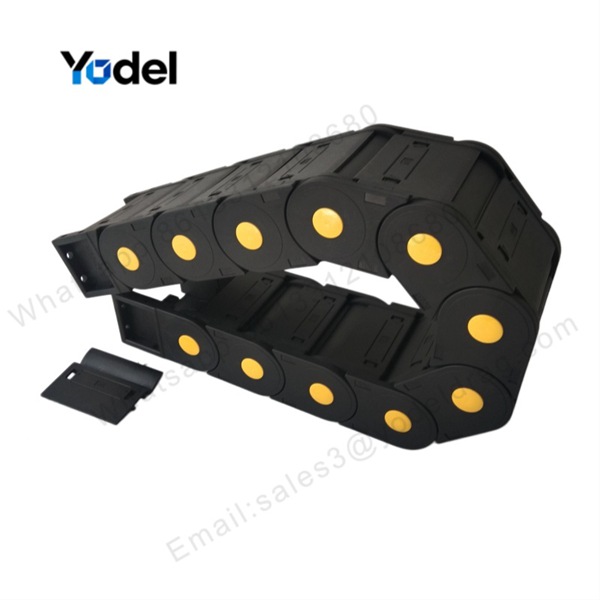

Skilled factory personnel manually assemble each nylon drag chain 45x150 unit, inspecting cover security and link flex. Snap-open covers along the inner radius make field retrofitting straightforward without removing the complete track setup from the machine axis. To further optimize internal routing, vertical separators and horizontal shelves can be configured to isolate heavy hydraulic lines from delicate signal cables, preventing internal cable jacket friction.
Available in a full range of sizes including 45x60 enclosed drag chain, 45x100 enclosed drag chain for standard cable bundles, the flagship 45x150 enclosed nylon drag chain for larger cable and hose loads, and the 45x250 size for heavy-duty applications. All models share a 45mm inner height with varying widths. For clean environments where lightweight solutions are preferred, consider our 45x100 bridge drag chain which offers open-top convenience at a lower cost point.

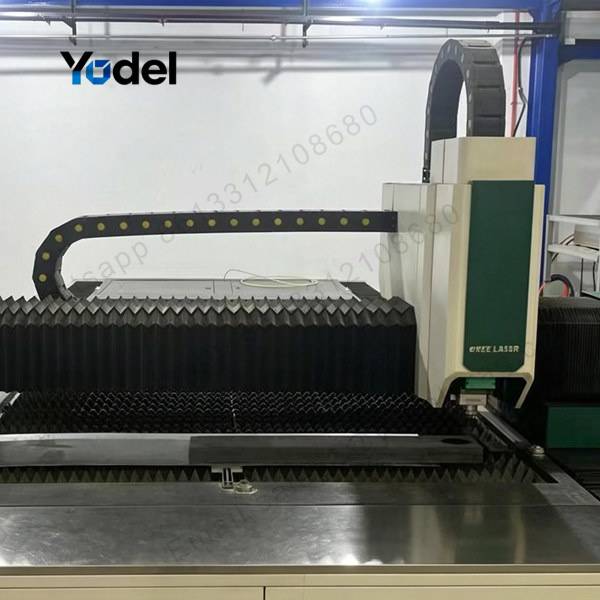

The 45x150 enclosed nylon drag chain is widely specified for CNC machine tools (machining centers, mills, lathes), robotics (welding and pick-and-place arms), woodworking (CNC routers, edge banders), stone and glass processing (bridge saws, edge profilers), laser or plasma cutting machinery, and injection molding equipment. Our products are securely packaged on reinforced pallets wrapped with stretch film to guarantee safe international transport. Contact our engineering team today for technical CAD files, custom separator layouts, or bulk price quotes!
|
