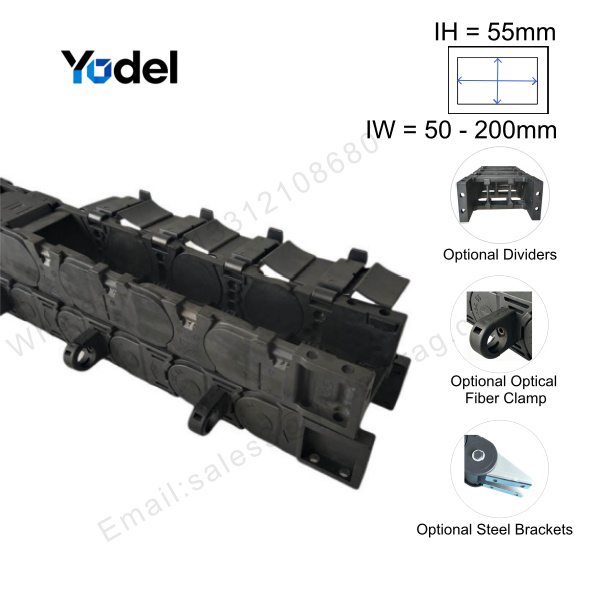

Energy Cable Chain 50x150mm Equivalent Heavy-Duty 55x150 Snap Open Enclosed Carrier

Energy Cable Chain 50x150mm Equivalent Heavy-Duty 55x150 Snap Open Enclosed Carrier

Product Attributes :

Inner Height: 55mm(2.16in)

Inner Width: 50-200mm(1.97-7.87in)

Outer Height: 75mm(2.95in)

Outer Width: 80-230mm(3.15-9.05in)

Bending Radius: R100/125/150/200/250/300mm(3.94/4.92/5.91/7.87/9.84/11.81in)

Pitch : 88mm(3.46in)

Links per Meter: 12 pcs

Max cable diameter:50mm

Structure: snap open enclcosed type

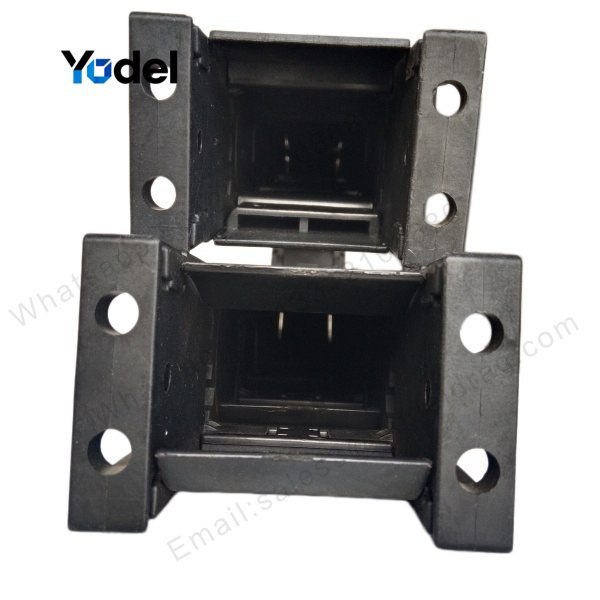

End brackets :rectangular connectors

Material: 30% glass fiber +nylon PA66

Length: cut to length / customization

Color : fully black

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link/steel mounting brackets

MOQ : 1Meter or Set

Product Description

Energy Cable Chain 50x150mm Equivalent: Heavy-Duty 55x150 Snap Open Enclosed Carrier

If you are sourcing an energy cable chain 50x150mm for demanding industrial automation, our heavy-duty 55x150 mm snap-open enclosed cable carrier provides the optimal heavy-load alternative. Manufactured in an all-black aesthetic finish using 100% virgin 30% glass-fiber reinforced PA66 nylon (PA66 + 30% GF), this enclosed carrier protects sensitive electrical cables, hydraulic lines, and pneumatic hoses from hot flying chips, dust, and aggressive liquid coolants during continuous high-speed movement.

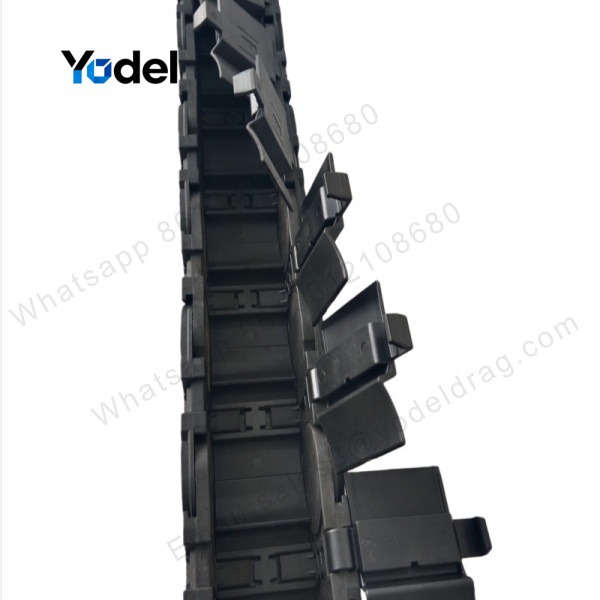

Equipped with a convenient side-opening snap-open lid mechanism, maintenance engineers can quickly pop open individual link covers using a standard flathead screwdriver. This user-friendly structural feature drastically accelerates cable laying, inspection, and replacement without requiring complete disassembly of the drag chain assembly from your equipment.

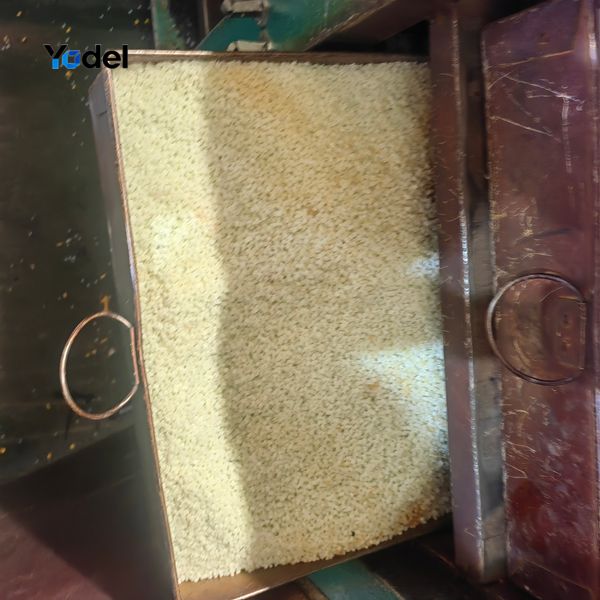

Premium 30 percent glass fiber reinforced PA66 raw nylon granules for heavy duty energy cable chain 55x150mm manufacturing

High-grade PA66 nylon raw material blended with 30% glass fiber reinforcement ensuring high load strength, thermal endurance (-40°C to +130°C), and abrasion resistance.

Technical Specifications (55x150 Model)

Parameter	Value
Inner Height	55 mm
Inner Width	150 mm
Outer Height	75 mm
Outer Width	180 mm
Pitch	88 mm
Bend Radius	R100 R125 R150 R200 R250 R300
Max Cable OD	50 mm
Material	30% GF + PA66
Operating Temp	-40°C to +130°C
Structure	snap-open enclosed type
Color	fully black
Configurations	Standard rectangular mounting brackets / Optional steel end brackets /inner separators /optical fiber clamps /custom logo /color

Selecting the Right Dimensions: 45x150 vs. 55x150

When seeking an energy cable chain 50x150mm, opting for standard adjacent tooling sizes ensures optimal structural rigidity and immediate stock availability:

Select 55x150 mm (Current Page): Ideal when your cable bundle or hydraulic hose diameter is up to 50 mm. It gives an extra 5 mm vertical margin over 50 mm, ensuring zero cable pinching during high-speed reciprocating movement.
Select 45x150 mm: Recommended if your maximum cable outer diameter is under 40.5 mm and your installation footprint requires a lower profile outer height (65 mm vs. 75 mm).

Precision Molds & Modular Manufacturing

Our factory maintains extensive arrays of high-precision steel molds dedicated to producing heavy-duty energy chains. Advanced injection molding machinery ensures each modular link achieves strict dimensional tolerance, high tensile strength, and smooth snap-locking engagement.

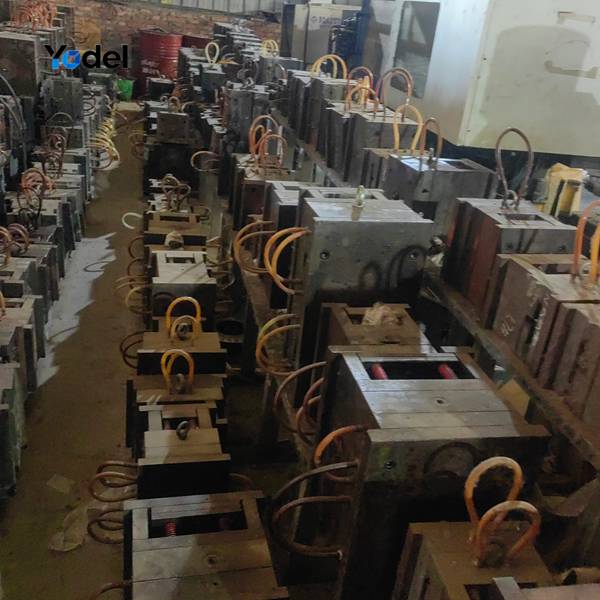

Precision steel injection molds array for energy cable chain 50x150mm and 55x150mm series carrier links

Factory mold workshop housing multi-cavity precision tooling for quick production of heavy-duty nylon energy chains.

Enclosed Protection vs. Open Ventilation

While this enclosed 55x150 carrier excels in debris-heavy machining environments, clean automation lines or longer stroke setups may benefit from lightweight open designs. For applications requiring maximum airflow and wider inner width clearance, explore our Cable Drag Chain 55x200 Snap Open Bridge Type Cable Carrier.

Strict Inspection & Heavy-Duty Packaging

Every batch of energy cable chain 55x150mm undergoes rigid tensile testing, articulation flex checks, and snap-latch inspection. Approved units are packed into heavy-duty corrugated export cartons, securely strapped, and labeled with precise specification details for safe global sea or air freight shipment.
