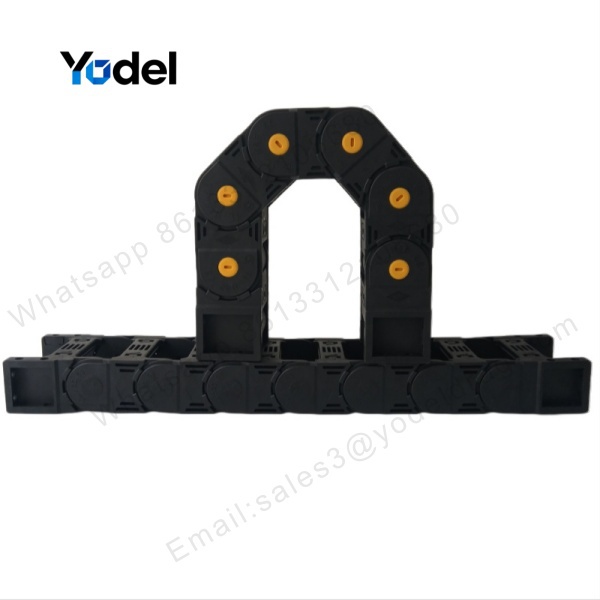

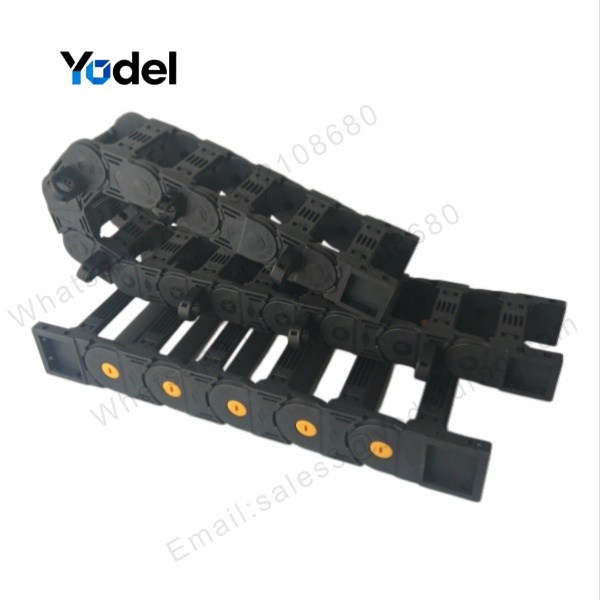

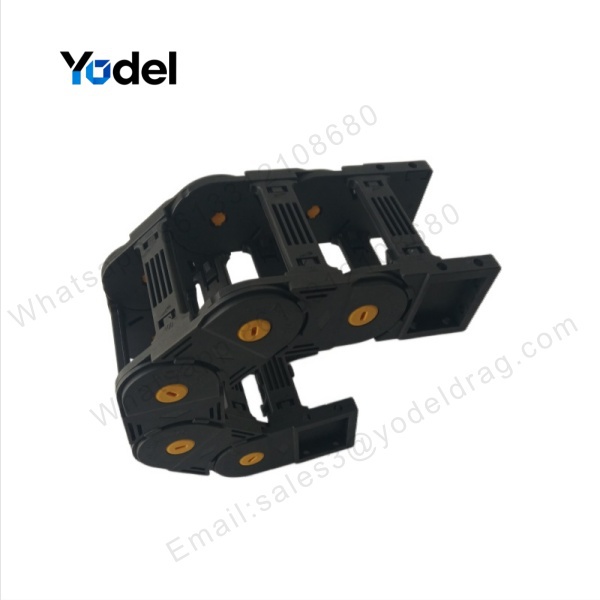

65x200 Bridge Type Drag Chain for CNC – Heavy-Duty Reinforced Cable Carrier

Product Overview

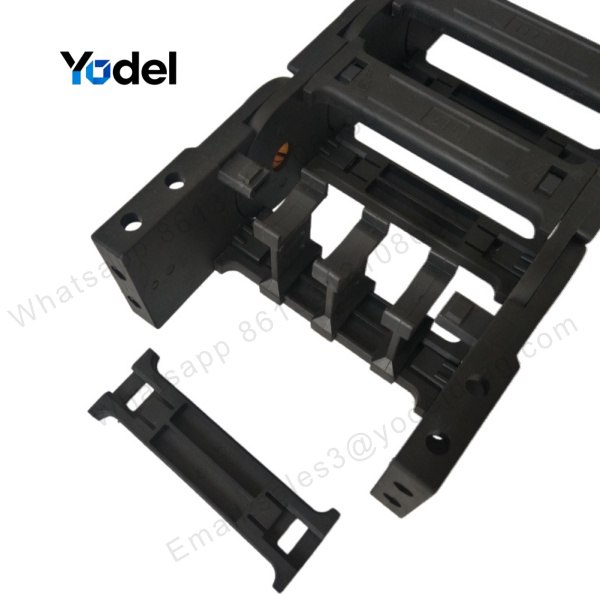

The 65x200 bridge open type drag chain for cnc machinery is a heavy-duty dynamic guidance solution precision-molded from premium 30% glass-fiber reinforced PA66 nylon. Featuring a generous 65mm inner height and a wide 200mm inner width, this high-capacity model accommodates heavy cables and hoses up to 58.5mm outer diameter, housing 20 to 25+ standard power lines or hydraulic conduits simultaneously. Its open-top bridge architecture ensures rapid heat dissipation and effortless cable routing using a standard screwdriver.

This heavy-duty drag chain for cnc applications is specifically engineered for environments where heavy cable and hose bundles exceed the load capacity of standard 45mm or 55mm plastic tracks. Reinforced side link joints and a robust cross-section provide high tensile strength to support thick power cables, high-pressure hydraulic lines, and fiber optic bundles without sagging or mechanical fatigue. Additionally, its high structural rigidity prevents "snaking" over long unsupported travel spans, making it an excellent energy chain choice for extended-stroke gantries and large-format CNC systems.

Technical Specifications

Raw Material Quality Assurance

To guarantee maximum dynamic load performance, every batch of our 65x200 drag chain for cnc production uses virgin PA66 polymer compound infused with 30% structural glass fiber. Our climate-controlled raw material warehouse maintains strict inventory management to preserve resin purity and mechanical integrity prior to processing.

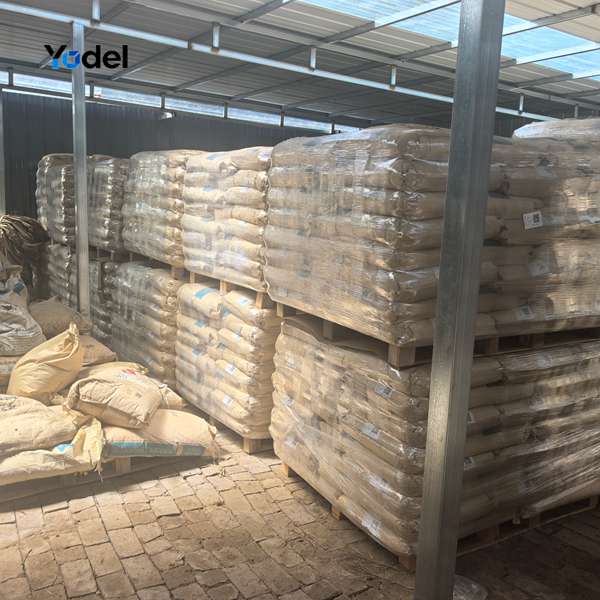

Figure 1: Palletized high-grade 30% glass-fiber PA66 resin prepared for heavy-duty cable chain injection molding.

Material Performance Advantages

• High Tensile Strength & Rigidity: Withstands heavy multiline cable loads across long horizontal spans without bending or sagging.
• Exceptional Fatigue Resistance: Delivers a dynamic flex fatigue life exceeding 10 million movement cycles under continuous production.
• High Thermal Stability: Maintains structural performance across a broad operating thermal range from -40°C to +130°C.
• Low Moisture Absorption: Resists humidity fluctuations to preserve tight dimensional tolerances at link joint connections.
• Superior Wear & Abrasion Resistance: Hardened joint surfaces minimize friction during rapid bending cycles, extending service life.
• Reduced Maintenance Costs: Long-term durability reduces machine downtime and component replacement frequency.

Precision Component Molding & Manufacturing

Each link component of the 65x200 drag chain for cnc is manufactured using high-tonnage automated injection molding machines. Automated ejection systems ensure precise pin alignment, smooth rotation clearances, and clean crossbar latches for reliable dynamic motion.

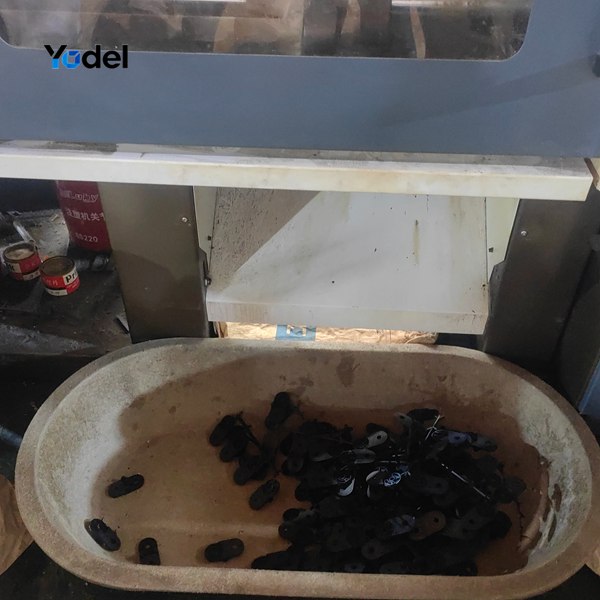

Figure 2: Precision automated molding collection of reinforced nylon side link components.

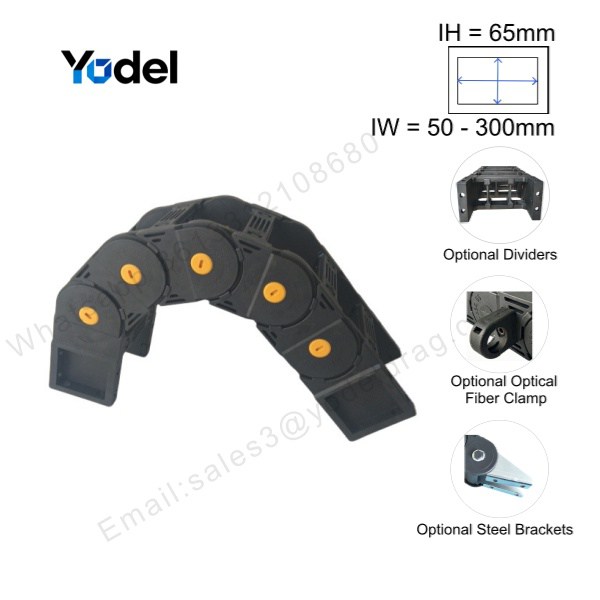

Customization Options

We provide full customization services for the 65x200 drag chain for cnc to fit specific equipment layouts:

• Internal Separators: Vertical dividers for multi-layer cable isolation, reducing jacket friction and tangling.
• Side-Mounted Fiber Clips: External clip attachments to route delicate fiber optic communication lines separately from power cables.
• Heavy-Duty Steel Brackets: High-strength steel end mounting brackets engineered to replace plastic brackets for high-vibration applications.
• Custom Color Configurations: Available in full black, black body with yellow pins, or custom RAL color schemes (subject to MOQ).
• Brand Logo Printing: Laser-etched or custom molded customer logos directly on link side plates.

Applications

The 65x200 drag chain for cnc is purpose-built for heavy industrial machinery with extensive cable and hose management requirements. Its high load capacity and structural stiffness also make it an ideal choice for long-travel motion tracks. Typical applications include large CNC gantry machining centers, heavy-duty CNC lathes, large-format laser and plasma cutting systems, heavy industrial automation gantries, and high-load material handling transfer units.

For machines with smaller mounting clearances or lighter cable loads, consider our 45mm or 55mm series models.

Export Packaging & Shipping

All finished 65x200 drag chain for cnc products are rigorously inspected, wrapped in heavy protective film, and palletized with reinforcement straps. Each bundle undergoes weight verification before dispatch to ensure secure global export shipping.

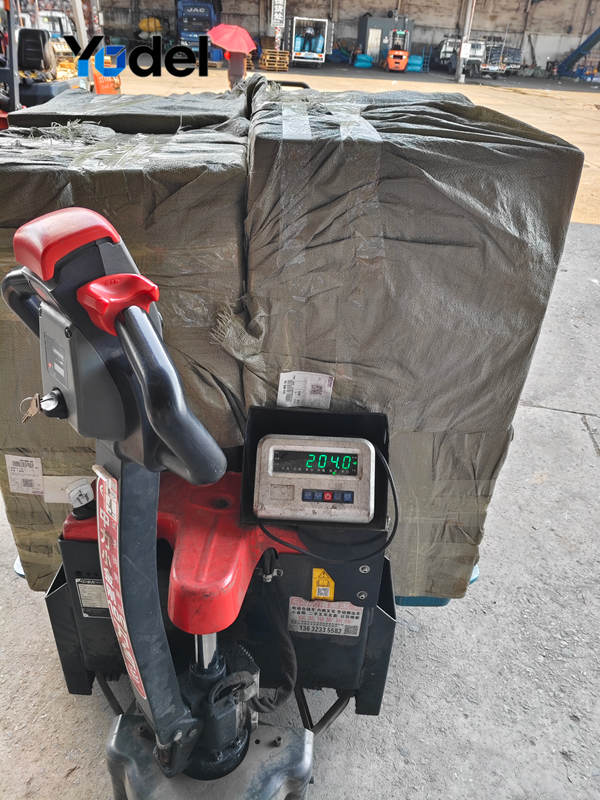

Figure 3: Secure weight-verified packaging prepared for safe international transit.
