30x75 Cable Track Cost-effective Cable Carrier for Glass Cutting Machines

30x75 Cable Track Cost-effective Cable Carrier for Glass Cutting Machines

Product Attributes :

Inner Height: 30mm(1.18in)

Inner Width: 25-103mm(0.98-4.06in)

Outer Height: 45mm(1.77in)

Outer Width: 45-123mm(1.77-4.84in)

Bending Radius: R55/75/100/125/150/175/200mm(2.17/2.95/3.94/4.92/5.91/6.89/7.87in)

Pitch :45.7mm(1.80in)

Links per Meter:22 pcs

Max cable diameter:27mm

Structure: non-openable bridge type

End brackets :rectangular connectors

Material: engineering Nylon

Length: cut to length / customization

Color :black body with yellow pins

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link

MOQ : 1Meter or Set

Custom available (logo /color )

Product Description

30x75 Bridge Drag Chain - Cost-Effective Cable Track 75x30 for Glass Cutting Machinery

The cable track 75x30 (model YDLB3075) is a heavy-duty, open-bridge cable management solution engineered with a 30mm internal height and a 75mm internal width. Molded exclusively from pure virgin PA66 engineering nylon—without low-grade recycled additives—this high-capacity cable track delivers exceptional wear resistance, mechanical strength, and long service life. Its snap-open bridge crossbar design allows for quick cable insertion, visual inspection, and routine maintenance without dismantling the entire chain assembly, significantly reducing downtime and labor costs during machine operations.

Specially optimized for automatic glass cutting machines, laser cutters, and high-speed CNC gantries, the cable track 75x30 accommodates up to 27mm outer diameter cables or pneumatic hoses. The open-bridge architecture facilitates continuous airflow around internal wiring, dissipating heat effectively during high-cycle reciprocating motion. Available in multiple bending radii from R55 to R200 (with R75 being the most popular choice for glass processing layouts), it ensures smooth articulation and low operating noise across tight machine enclosures.

Specifications & Parameter Matrix

Refer to the standard parameter matrix below for the 30x75mm bridge model and related 30mm series specifications:

Parameter	Value
Inner Height	30 mm
Inner Width	75 mm
Outer Height	45 mm
Outer Width	95 mm
Pitch	45.7 mm
Bend Radius	R55 R75 R100 R125 R150 R175 R200
Max Cable OD	27 mm
Material	PA66
Structure	Bridge Type
Operating Temp	-40°C to +130°C
Optional Configurations	Inside separators / optical fiber clamps /steel mounting brackets /Color /Logo

Component Customization & Accessories

To meet specific machine wiring requirements, our cable track 75x30 can be configured with vertical interior separators to prevent cable twisting, side-mounted fiber optical clamps, steel end mounting brackets for high-load anchoring, and customized color or logo printing options.

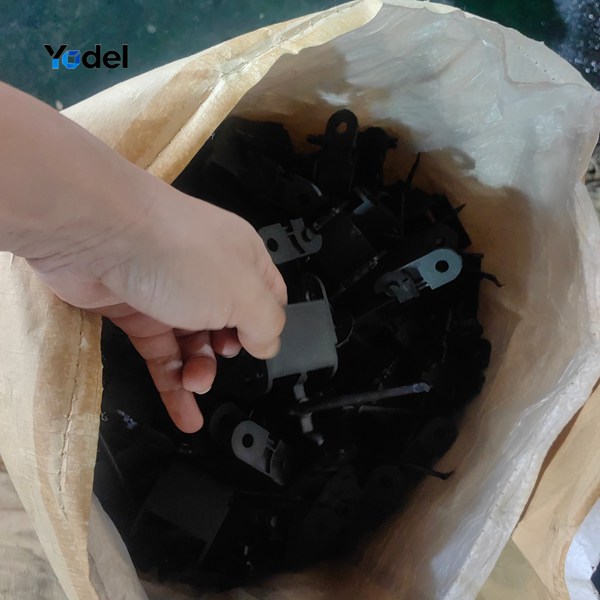

Unassembled nylon cable track 75x30 individual molded links and component parts inside woven bag

Reinforced Export Packaging

Every assembled cable track 75x30 unit is coiled, strapped, wrapped in protective film, and packed in heavy-duty corrugated cartons or fumigation-free wooden crates. Each box undergoes strict weight checks on digital scales before labeling to guarantee accurate order fulfillment.

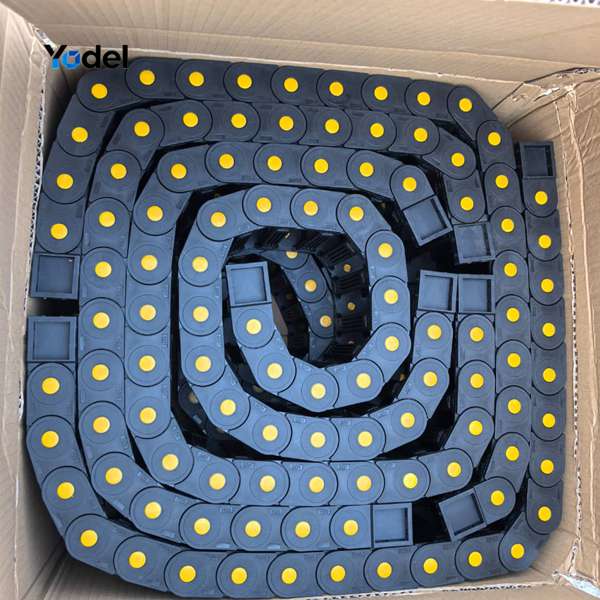

Coiled 30x75 bridge nylon drag chain neatly packed inside export carton box

Factory Dispatch & Industrial Applications

Our warehouse team systematically organizes and dispatches cable track 75x30 orders to global OEM machine builders. Beyond glass cutting equipment, this model is extensively installed on packaging machinery, CNC machining centers, and automated assembly tracks. For harsh environments with flying debris or liquid coolants, consider our 30x103 enclosed drag chain with sealed covers.

Reinforced corrugated carton packages with strapping for cable track 75x30 ready for pick-up
