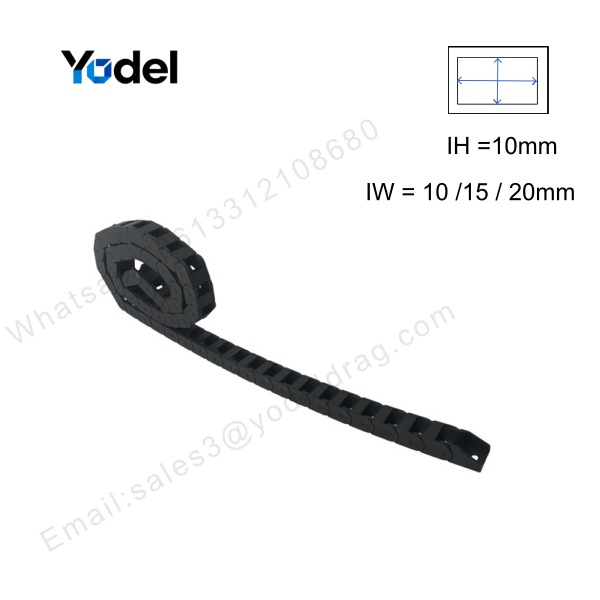

Inner Height: 10mm(0.40in)
Inner Width: 10/15/20mm(0.40/0.59/0.79in)
Outer Height: 16mm(0.63in)
Outer Width: 18mm/23/28mm(0.47/0.91/1.10in)
Bending Radius: R 18mm(0.71in)
Pitch :20mm(0.79in)
Links per Meter:67/50/50 pcs
Structure: One-Piece Bridge Type
End brackets :inclined /triangular connectors
Material: Engineering Nylon
Length: Cut to length / Customization
Color :fully black
MOQ : 1Meter or Set

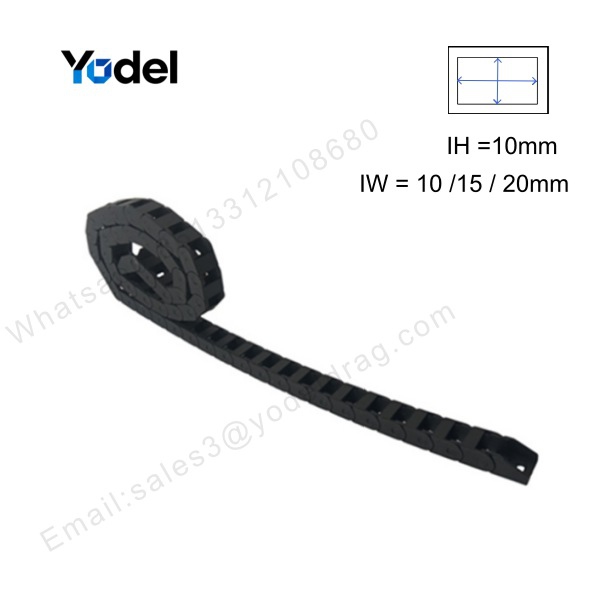

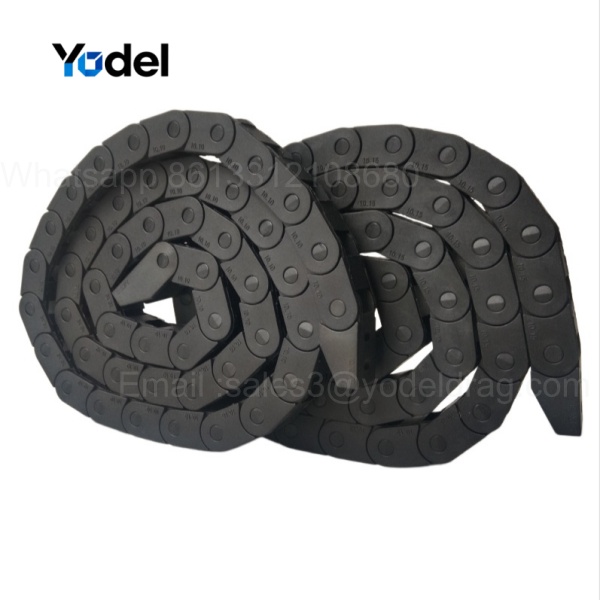

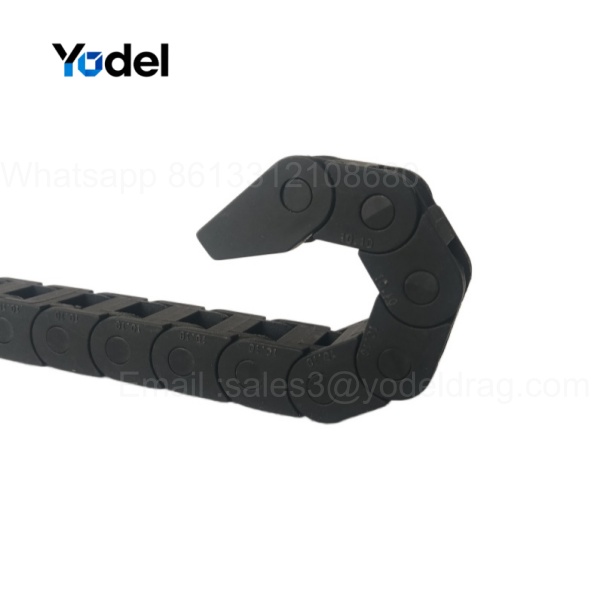

This drag chain 10x20 features an inner height of 10mm and an inner width of 20mm (14x28mm outer dimensions), making it an ideal lightweight cable protection solution for compact automation machinery. Engineered with an R18 bending radius and a 20mm link pitch, this bridge-type mini cable track prevents wire fatigue, reduces mechanical noise, and delivers continuous cable guidance in tight installation spaces. Built with a non-openable solid bridge structure, it provides high torsional rigidity for high-speed linear movements.
| Parameter | Value |
| Internal Dimensions (H x W) | 10 x 20 mm |
| External Dimensions (H x W) | 14 x 28 mm |
| Pitch | 20 mm |
| Bending Radius (R) | R18 mm |
| Max Cable Outer Diameter | 9 mm |
| Material Specification | 100% Virgin PA66 Polyamide |
| Operating Temperature | -40°C to +130°C |

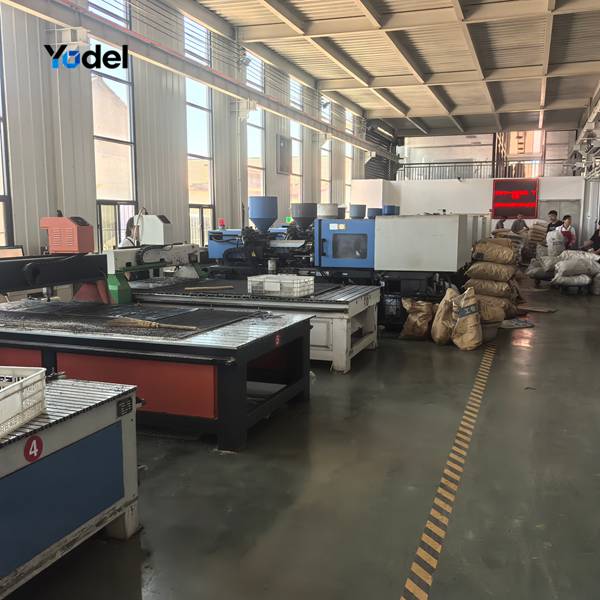

Our drag chain 10x20 series is manufactured using high-precision automated injection molding equipment. Every batch undergoes strict quality checks to ensure consistent link articulation, accurate pitch dimensions, and uniform wall thickness. This precision molding process ensures that the cable track maintains smooth, low-friction operation during rapid reciprocating strokes on desktop CNC routers, 3D printers, and automated testing devices.

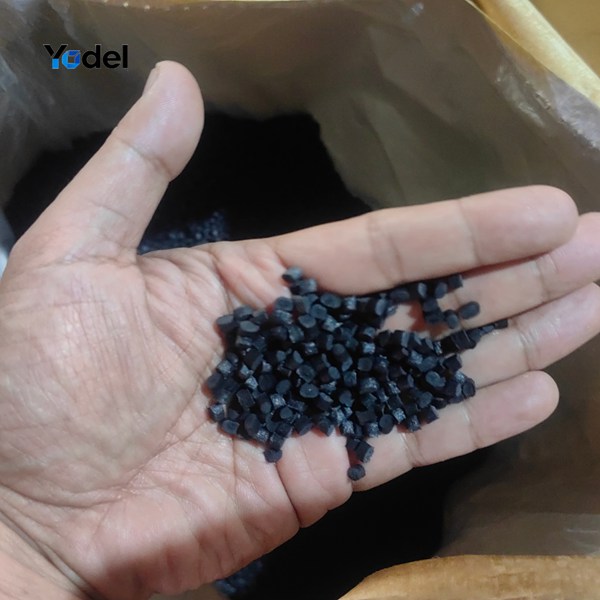

To withstand millions of continuous flexing cycles, each drag chain 10x20 is molded exclusively from high-grade virgin PA66 reinforced polyamide granules. Superior to low-cost recycled plastic blends, our pure PA66 nylon raw material delivers high tensile strength, flame retardancy, and high thermal stability (-40°C to +130°C). This ensures the micro cable carrier remains crack-resistant even when exposed to lubricants, cutting fluids, and ambient heat.

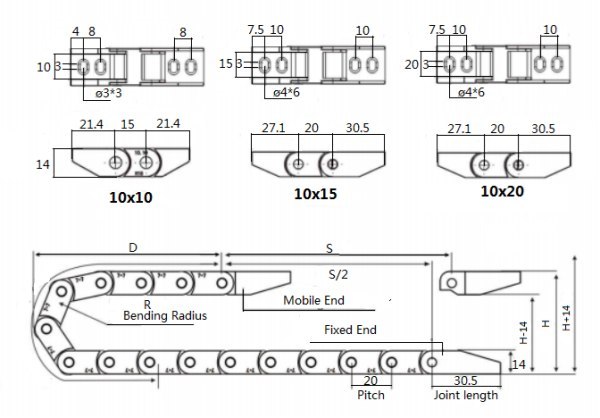

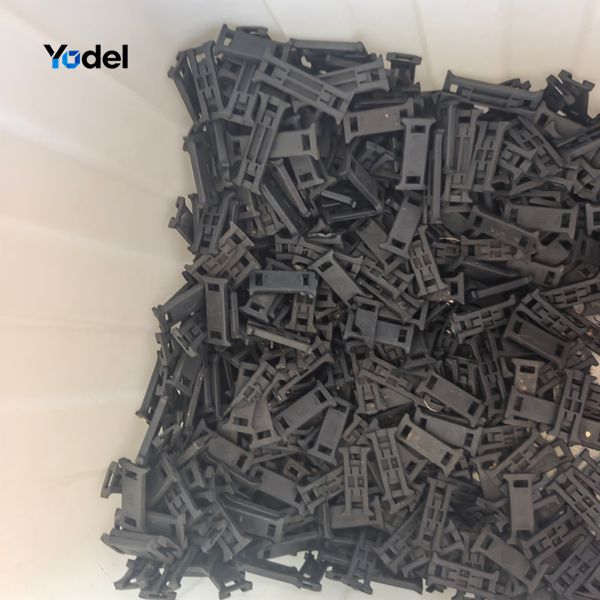

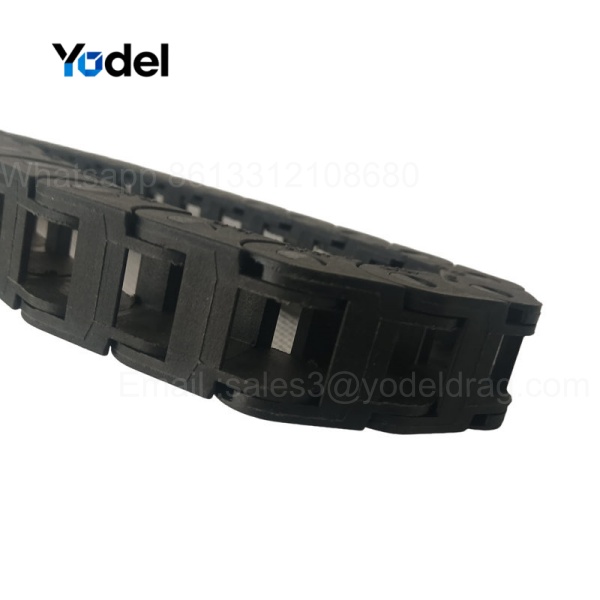

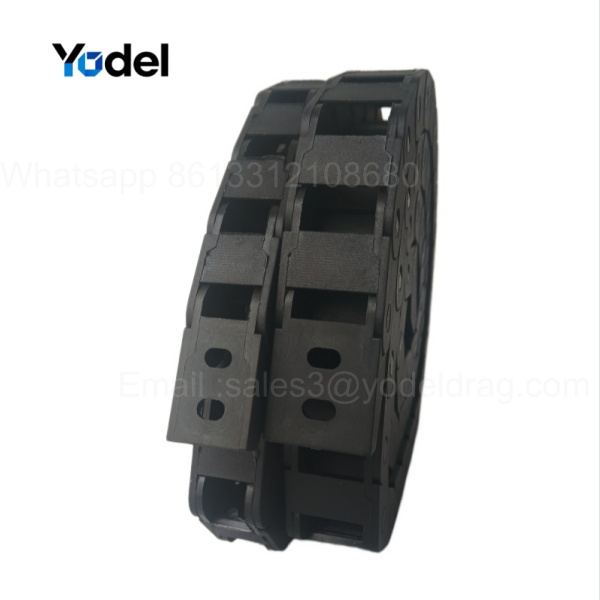

The integrated one-piece bridge structure eliminates external joint wear while reducing total moving mass. Each drag chain 10x20 assembly comes with specialized end-connector mounting brackets designed for quick, secure attachment to fixed and moving machine gantries. Links can be easily snapped together or lengthened without complex tools to match exact stroke requirements.
The drag chain 10x20 is the most widely adopted specification within our 10mm inner height family, safely accommodating power wires, stepper motor cables, or signal lines up to 9mm in outer diameter. If your mechanical enclosure demands an even more compact solution for ultra-tight spaces, check out our micro 7x7mm small drag chain series.
|
