Selecting the ideal cable drag chain is essential for protecting dynamic electric cables, hydraulic lines, and pneumatic hoses in industrial automation. When choosing a cable carrier, the primary material decision comes down to Reinforced Nylon (Plastic) versus Steel (Steel/Stainless Steel). Understanding their mechanical differences in load capacity, weight, service life, and operating environments will ensure your machinery runs smoothly with minimal downtime.
Reinforced Nylon Cable Carriers
Nylon cable carriers are manufactured from high-grade Polyamide (PA66) often reinforced with glass fibers. They offer a flexible, lightweight, and modular cable management solution for modern high-speed machinery.
Figure 1: Yodel reinforced PA66 nylon cable carrier running smoothly on high-speed automated equipment.
Key Advantages & Characteristics:
- Material & Structure: Injection-molded modular chain links with snap-open crossbars, offering flexible assembly and versatile inner dividers.
- Light Weight & High Speed: Low dead weight allows rapid acceleration and high-velocity travel without taxing motor drives.
- Quiet Operation: Polymer-on-polymer contact minimizes friction noise, ensuring a low-decibel workplace environment.
- Economic Cost: Lower raw material and manufacturing costs make nylon carriers highly cost-effective for general machinery.
Best Applied Environments:
Indoor CNC machining tools, pick-and-place robotics, 3D printers, packaging machines, automated assembly lines, and medical apparatus.
Heavy-Duty Steel Cable Carriers
Steel cable carriers (often available in carbon steel, galvanized steel, or stainless steel 304/316) are engineered for extreme load demands, ultra-long unsupported spans, and harsh external working conditions.

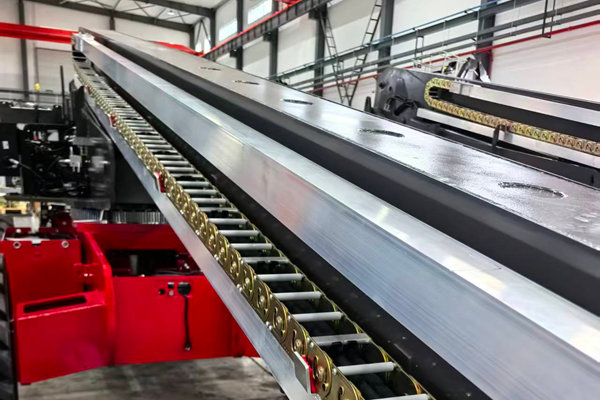

Figure 2: Yodel heavy-duty steel cable drag chain supporting extra-heavy hydraulic hoses in extreme industrial applications.
Key Advantages & Characteristics:
- Extreme Load Capacity: Robust steel side bands easily support heavy multi-layer hydraulic hoses, thick power cables, and large-diameter pipes without sagging.
- High Temperature & Debris Resistance: Impervious to hot metal chips, welding spatter, radiant heat, and aggressive industrial chemicals.
- Ultra-Long Service Life: Exceptional fatigue resistance and rigidity ensure decades of continuous operation under heavy dynamic stresses.
- Customizable Support Frame: Aluminum separator stays can be custom-drilled or configured to isolate each hose individually.
Best Applied Environments:
Heavy-duty machine tools, steel rolling mills, metallurgy plants, foundry machinery, oil & gas drilling rigs, outdoor port cranes, and mining installations.
Comprehensive Comparison: Steel vs. Nylon Cable Carriers
To help engineering teams select the optimal carrier, the matrix below directly compares steel and nylon drag chains across core technical parameters:
| Comparison Factor | Nylon Cable Carrier (PA66) | Steel Cable Carrier |
|---|---|---|
| Material Construction | Glass-Fiber Reinforced PA66 | Galvanized Steel / Stainless Steel |
| Load Carrying Capacity | Moderate to High | Extraordinary Heavy Duty |
| Dead Weight & Inertia | Very Light (Low Acceleration Load) | Heavy (High Inertia) |
| Max Unsupported Length | Short to Medium Spans | Very Long Unsupported Spans |
| Heat & Chip Resistance | Up to 120°C - 180°C (Short term) | Extreme Temp (>300°C) & Hot Chips |
| Operating Noise | Quiet Running (<60 dB) | Slightly Louder Metallic Sound |
| Economic Investment | Lower Initial Investment | Higher Initial Cost / Extended Duty Life |
Engineering Selection Guide: Which Should You Choose?
When specifying between steel and nylon drag chains for your machine build, evaluate these core engineering criteria:
- Choose Nylon Carriers if: Your priority is high moving speed, fast acceleration, quiet indoor operation, light-to-medium cable loads, and cost optimization.
- Choose Steel Carriers if: Your application involves heavy hydraulic hoses, long travel without intermediate support, exposure to red-hot metal slag or sharp chips, or aggressive corrosive environments (using Stainless Steel 316).
At Yodel Technology, we engineer and supply both high-performance reinforced nylon drag chains and heavy-duty steel cable carriers engineered to precise industrial standards. Contact our technical engineering team today for material selection support, custom dimensions, and CAD drawings.
