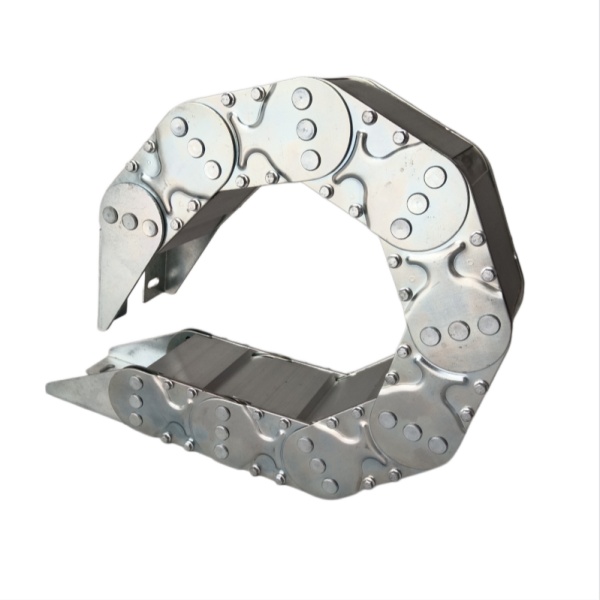

TL75 series (open bridge type ss drag chain ) featuring an open structure offers good heat dissipation and easy cable layout , inspection & maintenance and are mainly applied for dry environments with limited metal chips and medium travel distances.

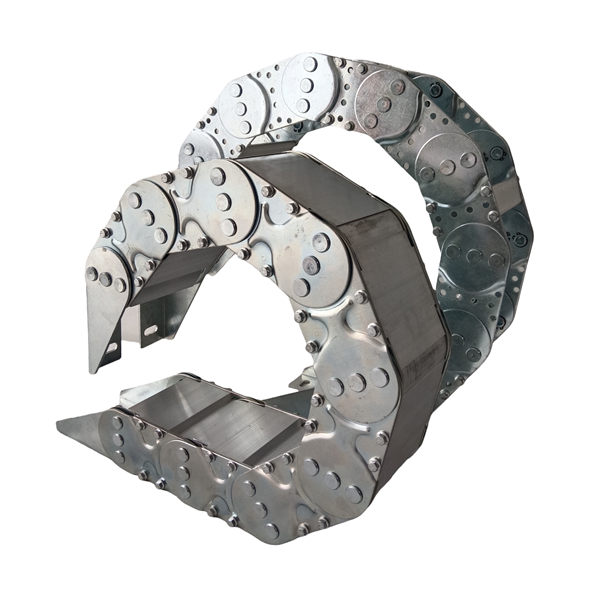

TLG75 series (fully enclosed steel cable carriers ): installed with aluminum alloy or stainless steel cover plates for excellent protection against dust, metal debris ,hot chips and coolant or oil contamination the closed cable chain is excellent fit for grinders, milling machines, long-travel applications and harsh working conditions.
Structure & Materials ：
（1)Chain link plates: High-quality quenched steel or stainless steel (ss),hot-zip galvanized /zinc coated/dacromet finish, metrit for wear-resistance , sturdiness nd anti-rust and anti-corrosion

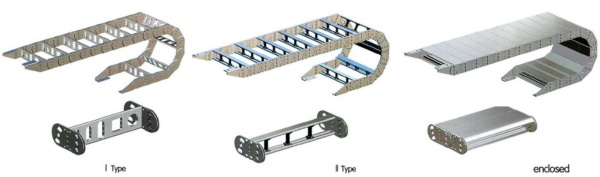

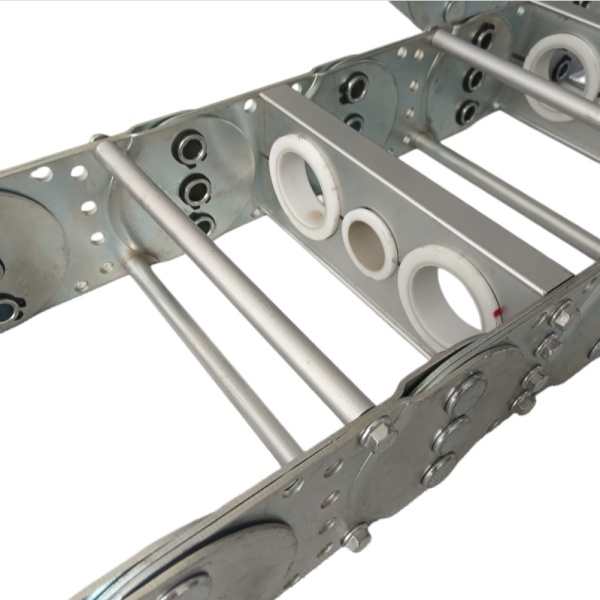

(2)Support crossbeams or cover plates: aluminum alloy or stainless steel , high strength and light weight. Available in I type integral crossbeams, Ⅱsplitted up and down plate and Ⅲ frame types to suit various cables
(3)Hinged screw pins rubber seal rings and carbon steel end mounting brackets or connectors : Alloy steel or stainles steel , featuring superior wear resistance, low noise and flexible rotation.
TL75 open bridge type drag chain /TLG75 fully enclosed galvanized /ss cable drag chain and accessories

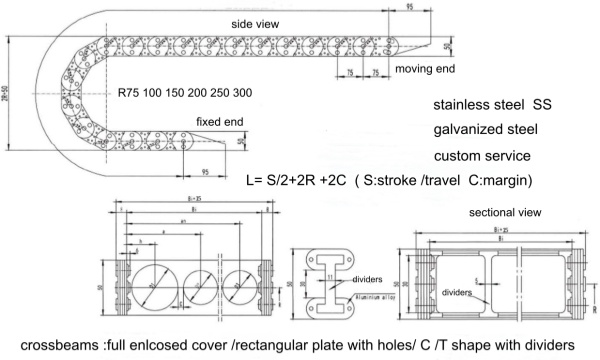

Side view and sectional view for steel cable drag chain drawings :

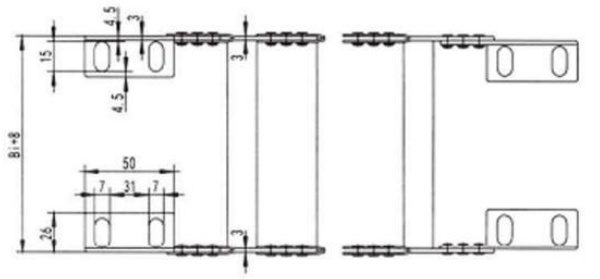

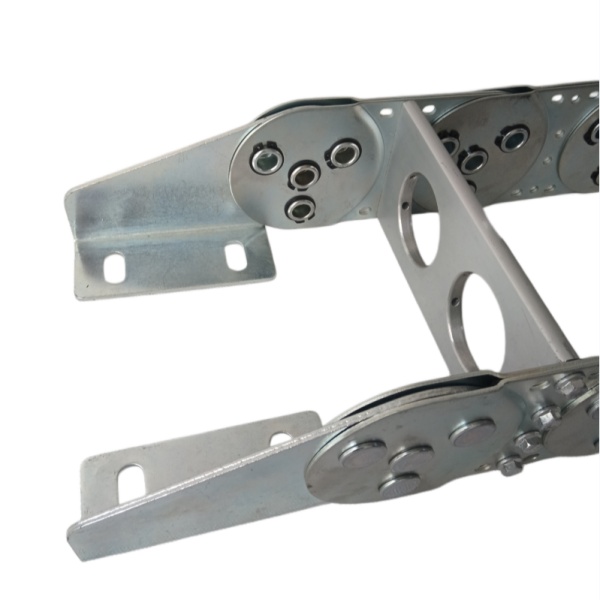

Standard mounting type and custom installed brackets

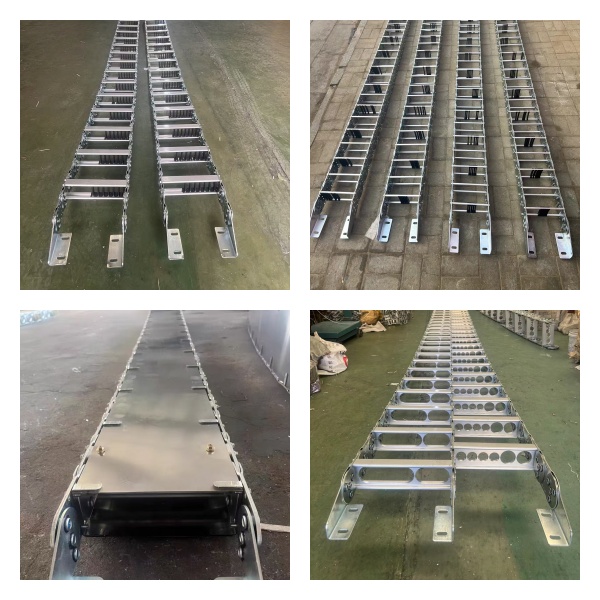

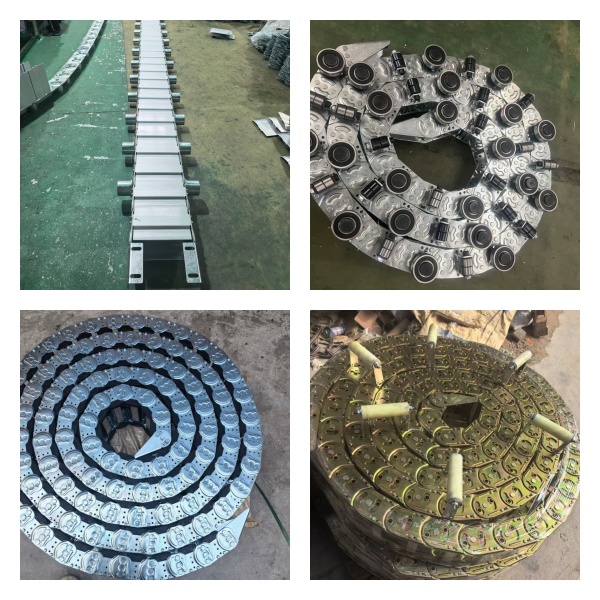

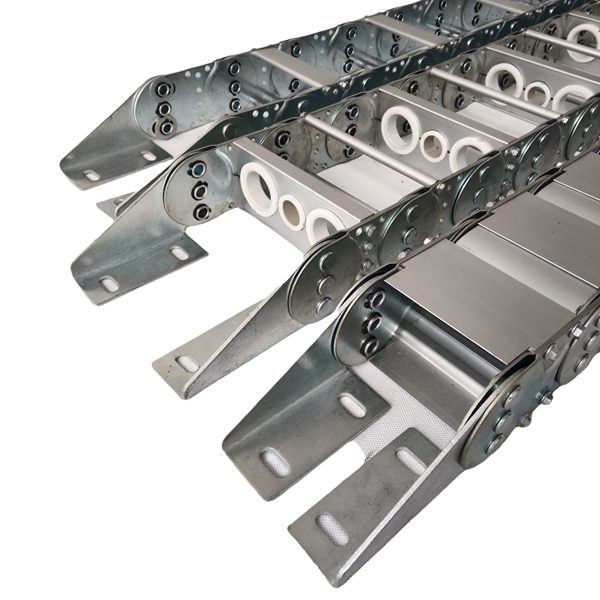

Available customized steel cable carrires for your reference
