TL100 bridge open type with internal height 55mm ,external height 75mm ,internal width 50-350mm ,external width can be tailored ,bending radii150-400mm

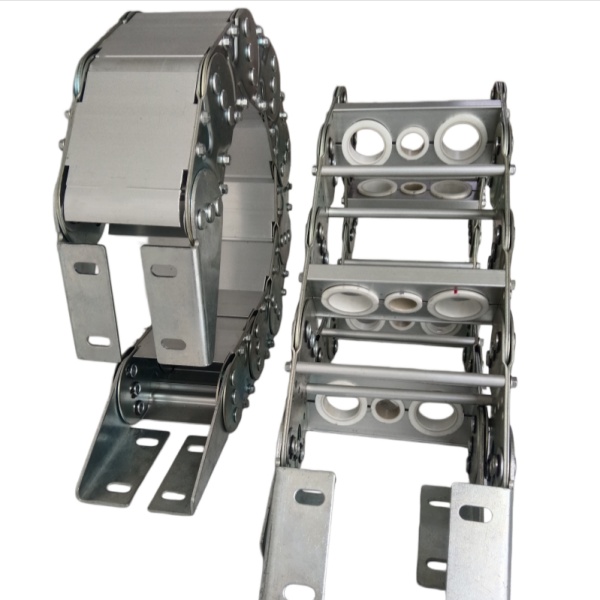

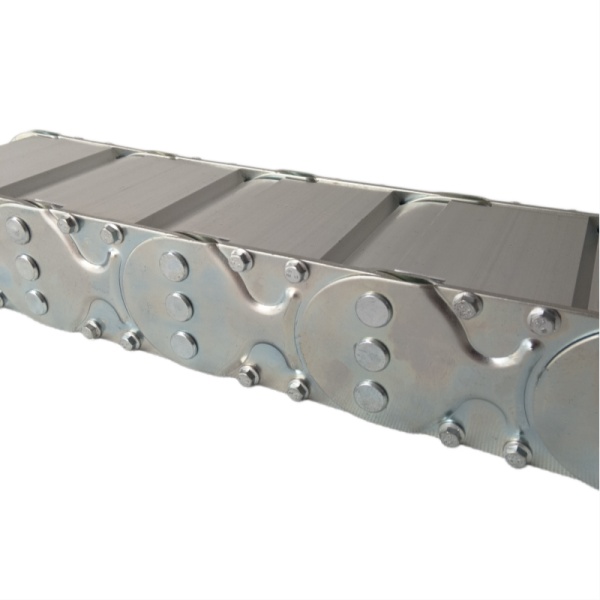

TLG100 enclosed type with internal height 55mm ,external height 75mm ,internal width 50-350mm ,external width can be tailored ,bending radii150-400mm
Materials : stainless steel (ss) or carbon steel with hot-zip galvanized /dacromet /zinc coated surface treatment for anti-rust and anti-corrosion
Customization on sizes and materials is supported as per your drawing

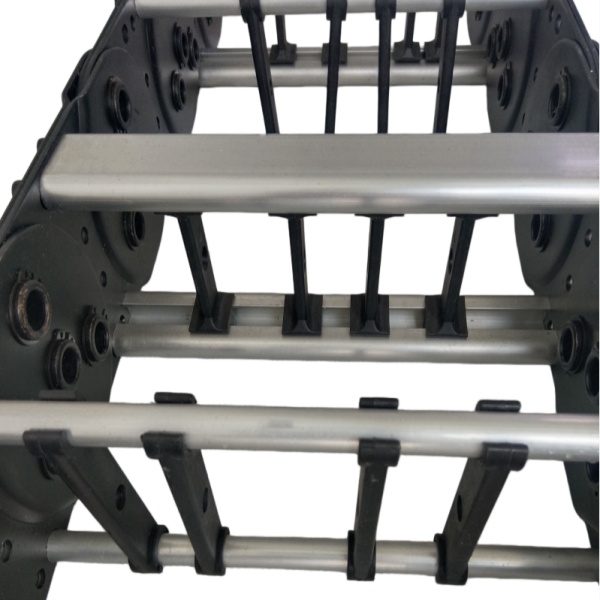

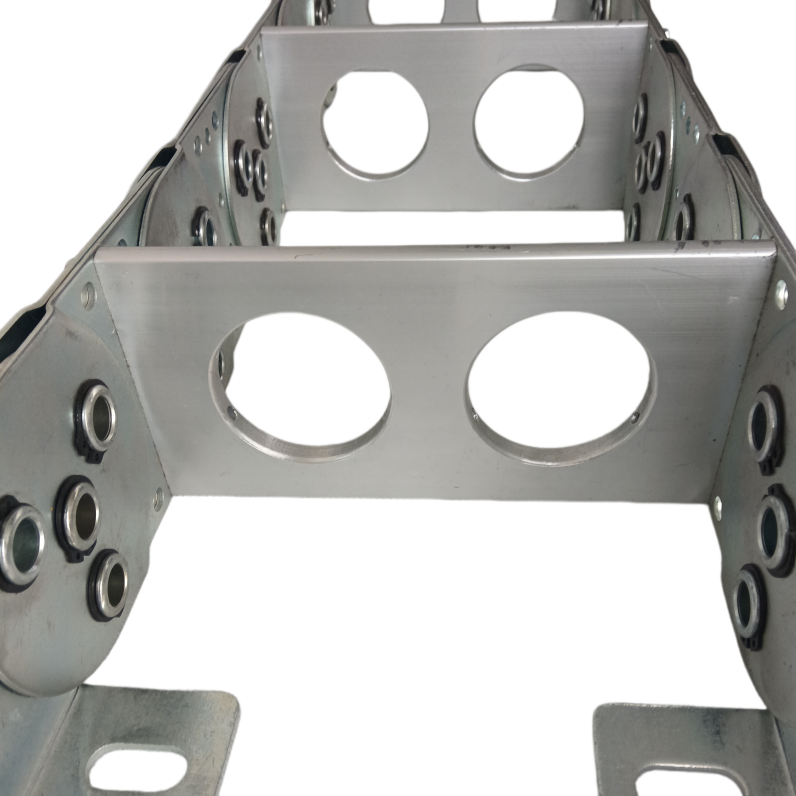

A particular crossbar shape can be tailored

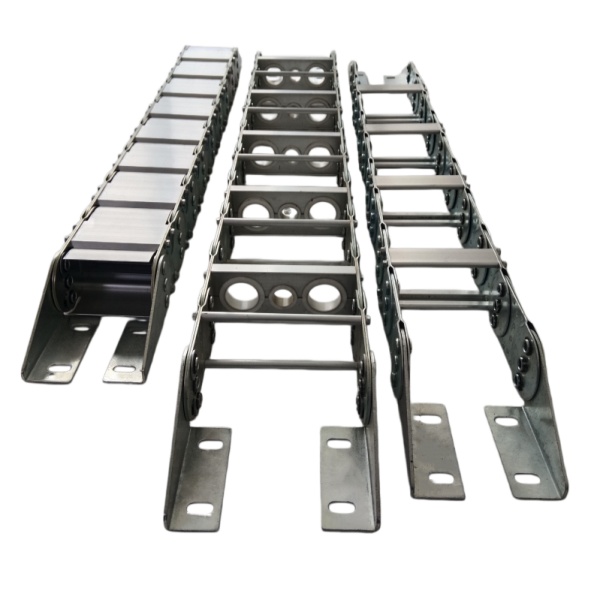

Designed to carry a large number of cables and hoses (oil, air, water) ，the side chain plates of TL100 metal drag chain adopts galvanized-plated ,zinc-plated or stainless steel , giving a bright gray or matte appearance and enhances durability against wear and corrosion resisting deformation. TL100 series steel cable guide track is a bridge open type while TLG100 series is a fully enclosed cover plate structure for a particular real work environment . The materials for TL100 galvanized energy chains are available in carbons teel , galvanized steel ,zinc coated steel and stainless steel with aluminum alloy crossbeams or cover plate featuring robustness and durablilty meanwhile light weight .Heavy duty steel cable carrier TL100/TLG100 are applied in a lot of industries like machine Tools (such as working machines),industrial automation equipment,CNC machinery (including lathes and machining centers),heavy-duty mobile machinery and material handling systems,port equipment, chemical machinery, engineering machinery and tobacco/pharmaceutical manufacturing equipment.

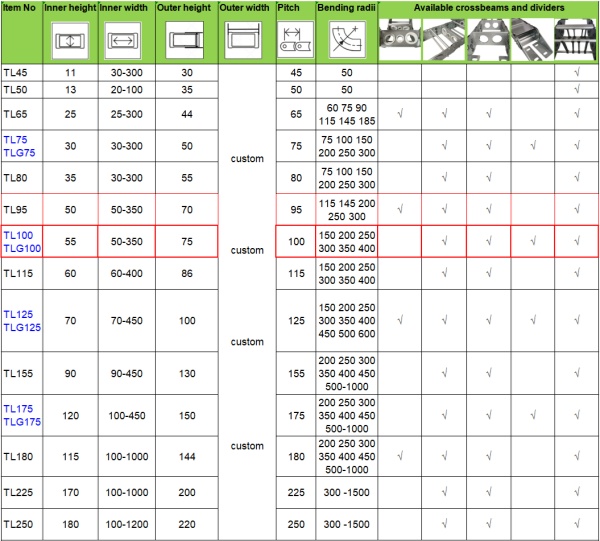

Optional sizes chart and technical parameters for TL100 TLG100 Series SS energy chain

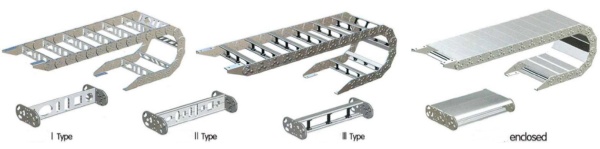

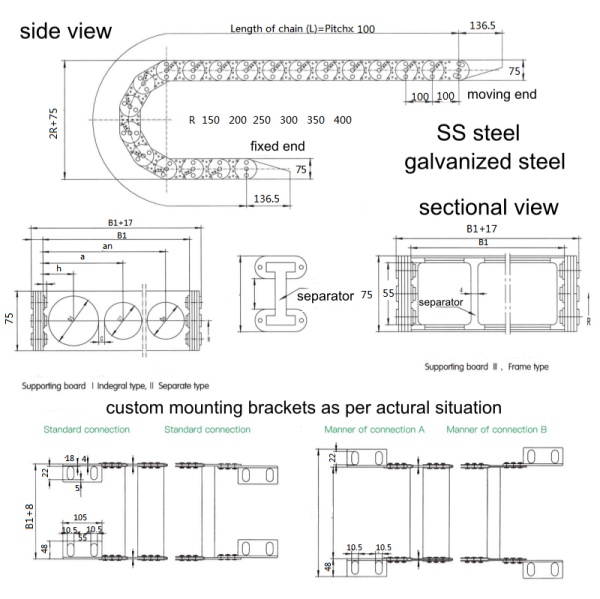

Structural drawings of hard-wearing metal bridge cable guide chains TL100 energy chain

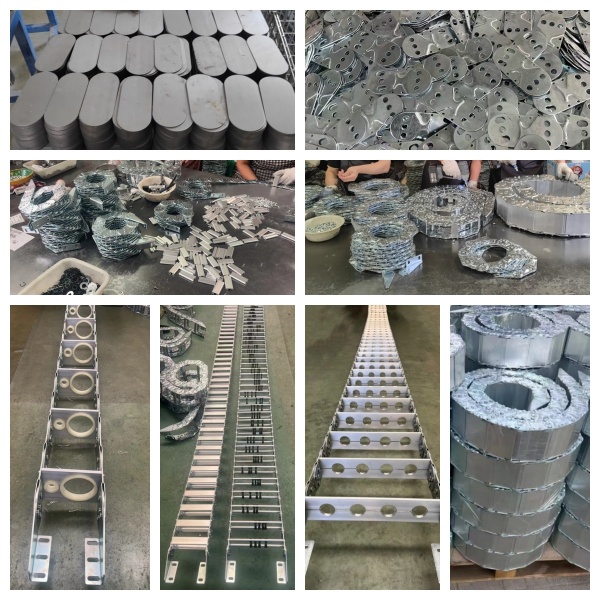

Manufacturing and assembled process of galvanized cable chain

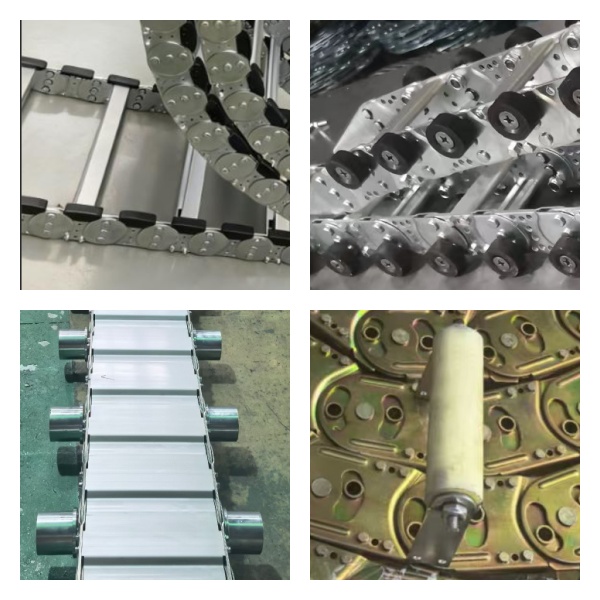

Customized accessories for long travel steel cable chain (slide shoes /supported rollers)

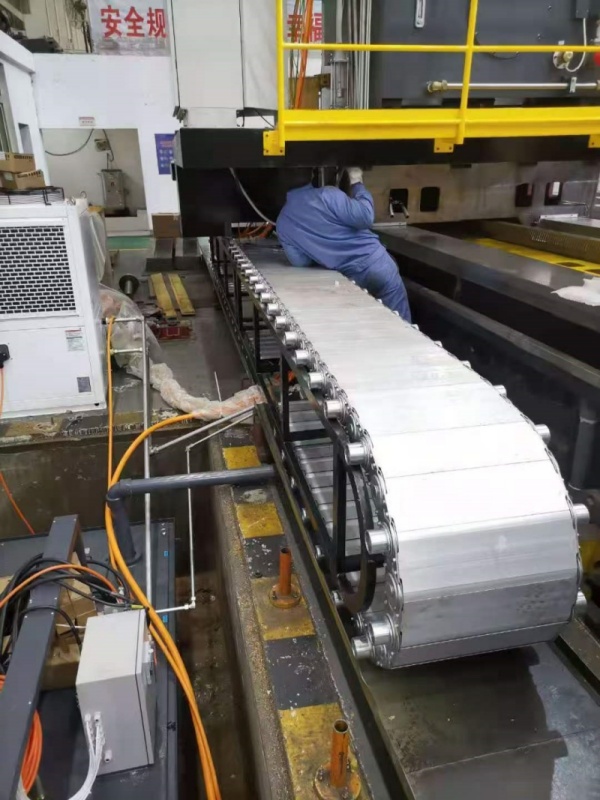

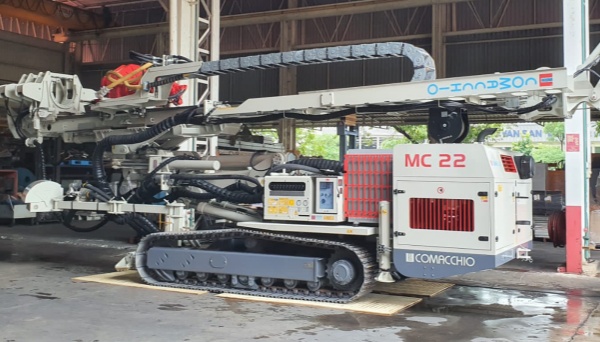

Applications of steel aluminum cable chain
