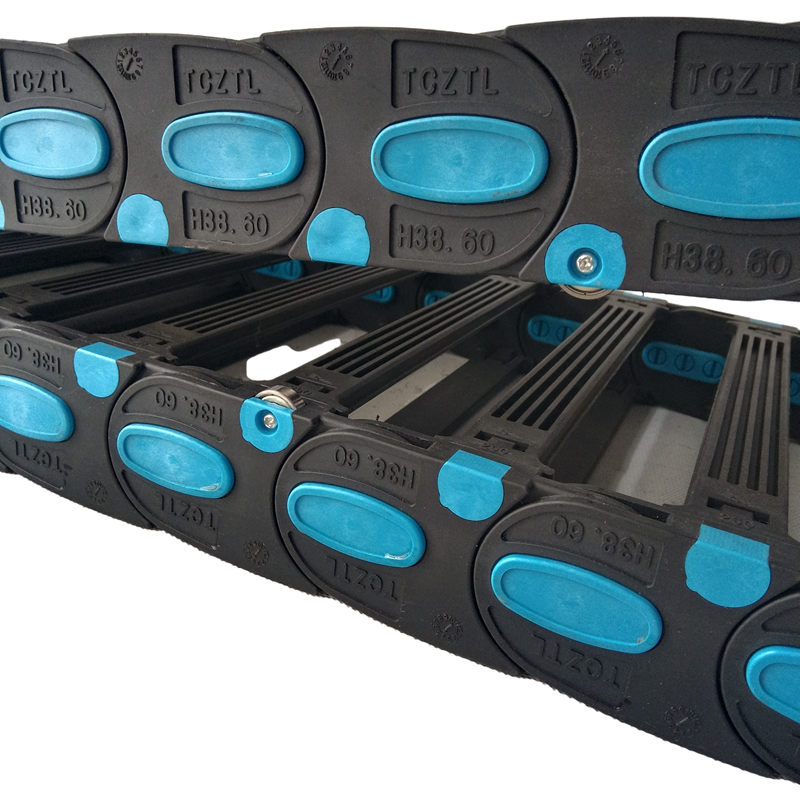

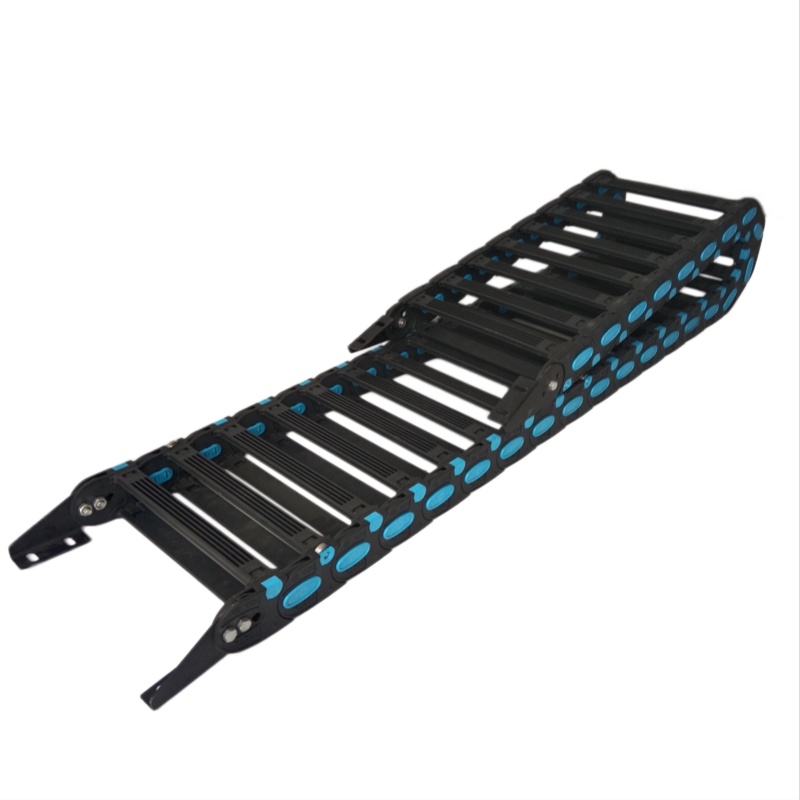

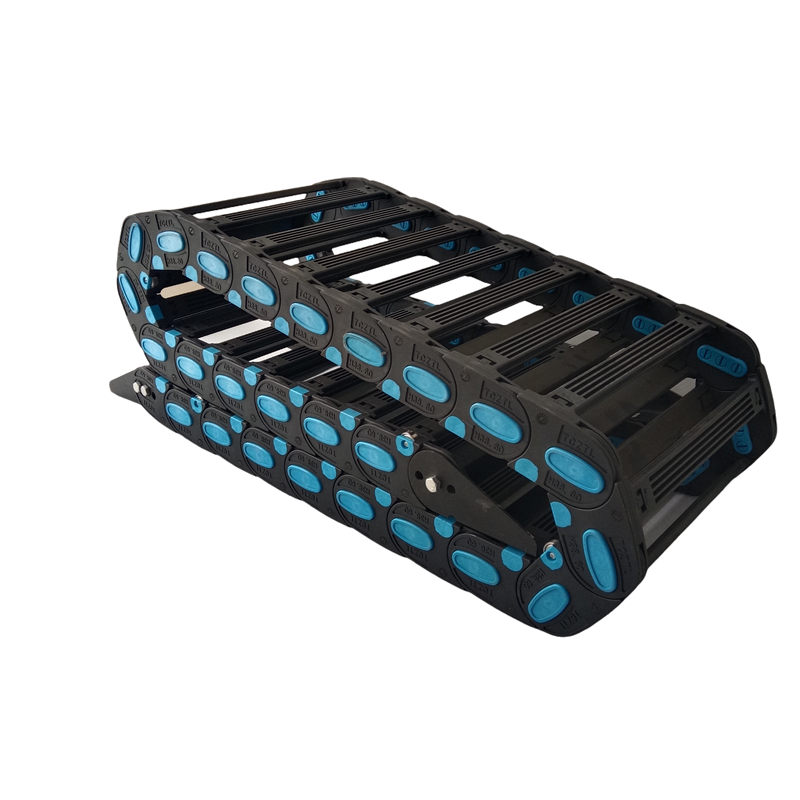

Main body of inner height 38mm long travel sliding energy chain will rollers adopts bridge type design with stable structure. It is made of high-strength glass fiber reinforced nylon, featuring high pressure resistance, high tensile load, excellent toughness and wear resistance. Equipped with sturdy metal joints end brackets to adapt to harsh industrial environments. To overcome self-weight and load resistance, this drag chain is fitted with pulley or rollers . The pulley sliding mode heavy duty cable drag chain enables higher running speed, lower wear and energy consumption, which is the key to efficient long-travel operation.
Key Features:

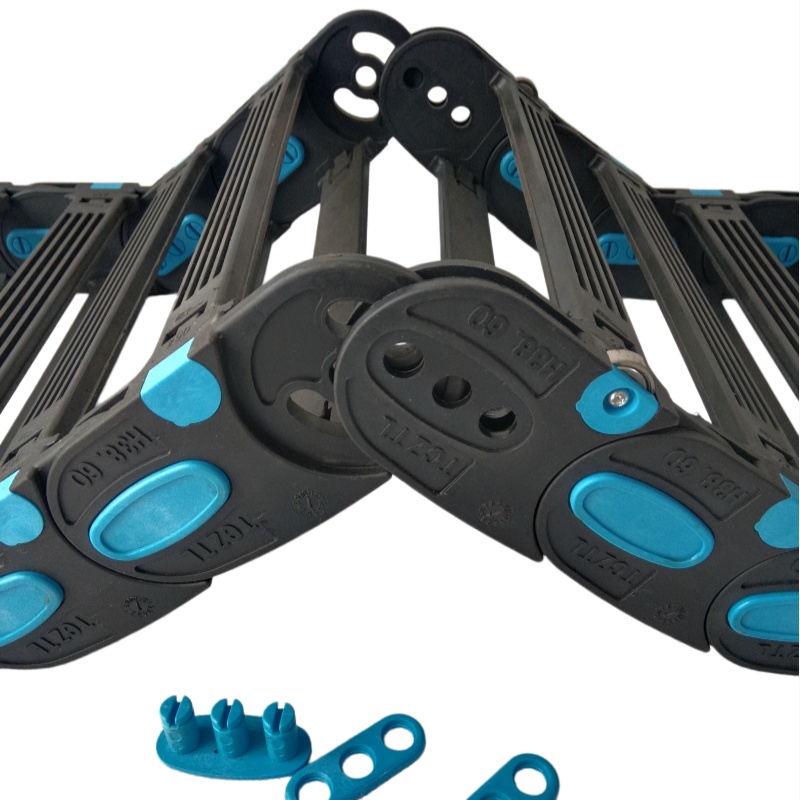

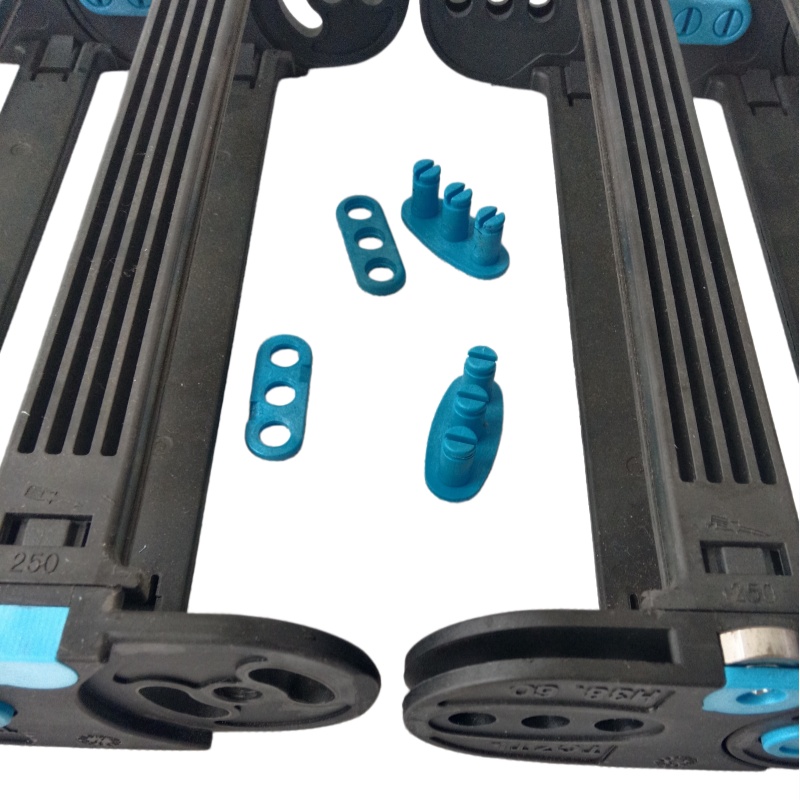

(1)Bridge-Type Easy-Fill Design：Removable bridge crossbars on both sides allow to access quickly and install easily of cables,fibers, hoses and pipes .
(2)Heavy Loading Reinforced Nylon：Engineered with reinforced nylon featuring a PA6/PA66 adding 30% glass fiber that supply high strength, abrasion resistance, and chemical resistance (oil, salt, alkali) for harsh industrial environments
(3)Long Travel Wear Solutions：Optimized for gliding applications.with optional glide rollers at side chain linkes with stainless steel materials to achieve rolling friction
(4)High Dynamics & Temperature Range：Supports max travel speed of 5 m/s, max acceleration of 5 m/s², and operates reliably in temperatures from -40°C to +120°C

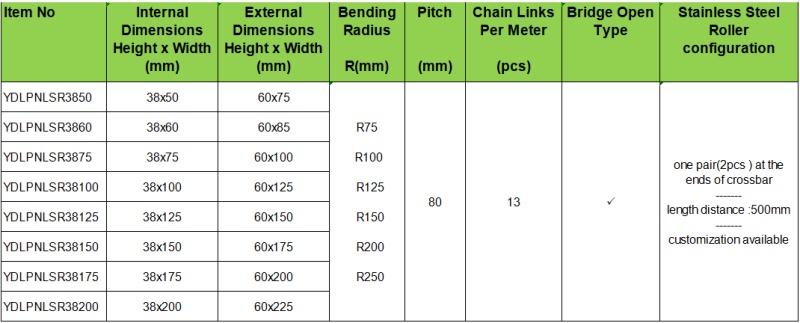

Popular Sizes and Applications :
●38X50/75mm-High-speed reciprocating motion, long travel, and heavy-duty gliding application
-Gantry milling machines, machining centers, wire cutting machines, industrial robots, glass edging machines, stone cutting machines, injection molding machines, AS/RS stacker cranes, cranes, and material handling equipment
●38X100/150mm-Long-travel gliding applications,modular design, high strength, and excellent dynamic performance
-Port Cranes: STS (Ship-to-Shore) & RMG cranes, ship unloaders, bulk material transport systems
-Industrial Automation: ASRS (Automated Storage & Retrieval) stacker cranes, linear robots, large gantry systems, tripper cars
-Heavy Machinery: Large laser / plasma / waterjet cutting machines, mining equipment, steel mills
