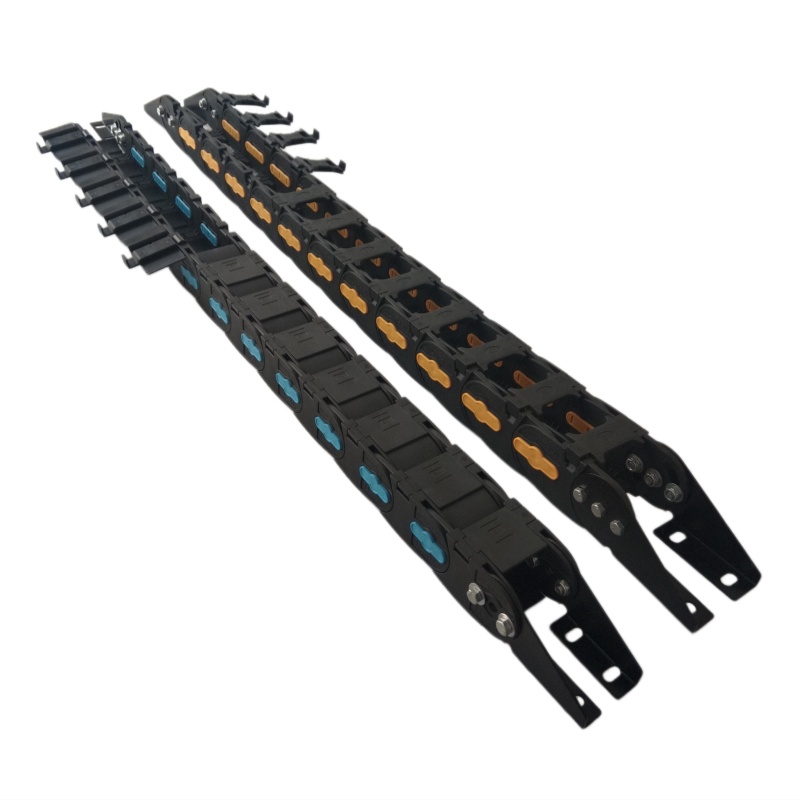

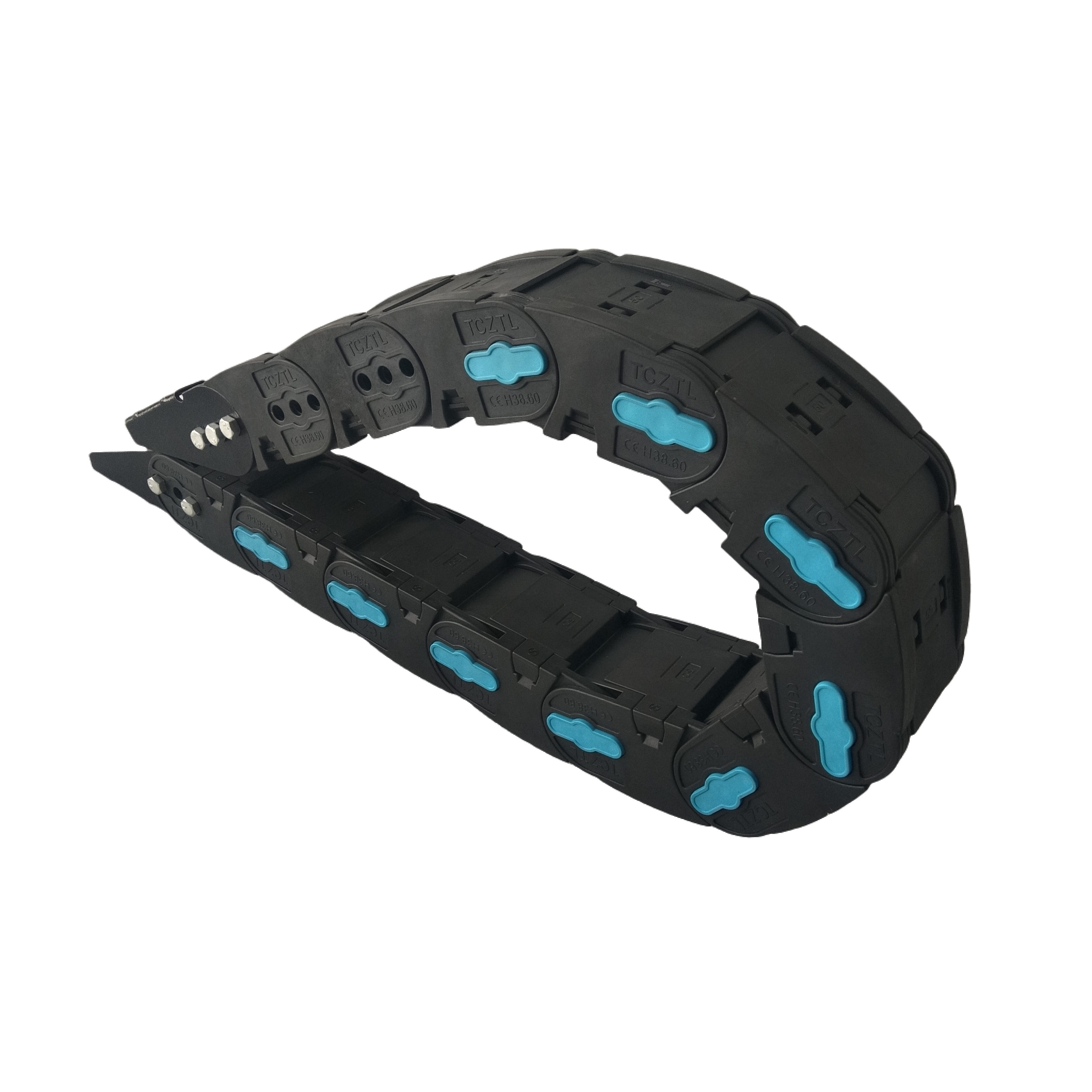

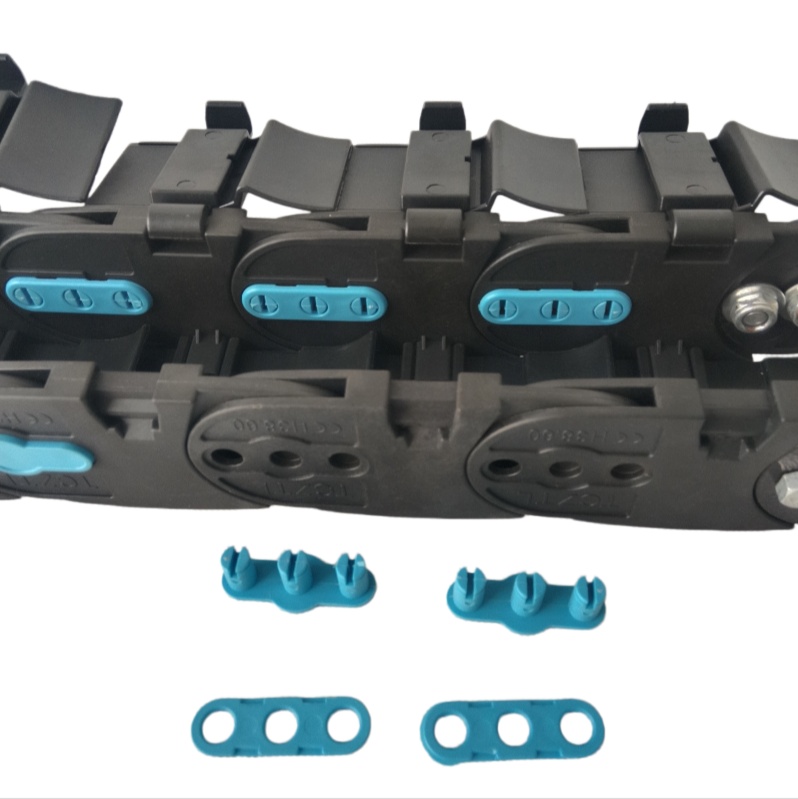

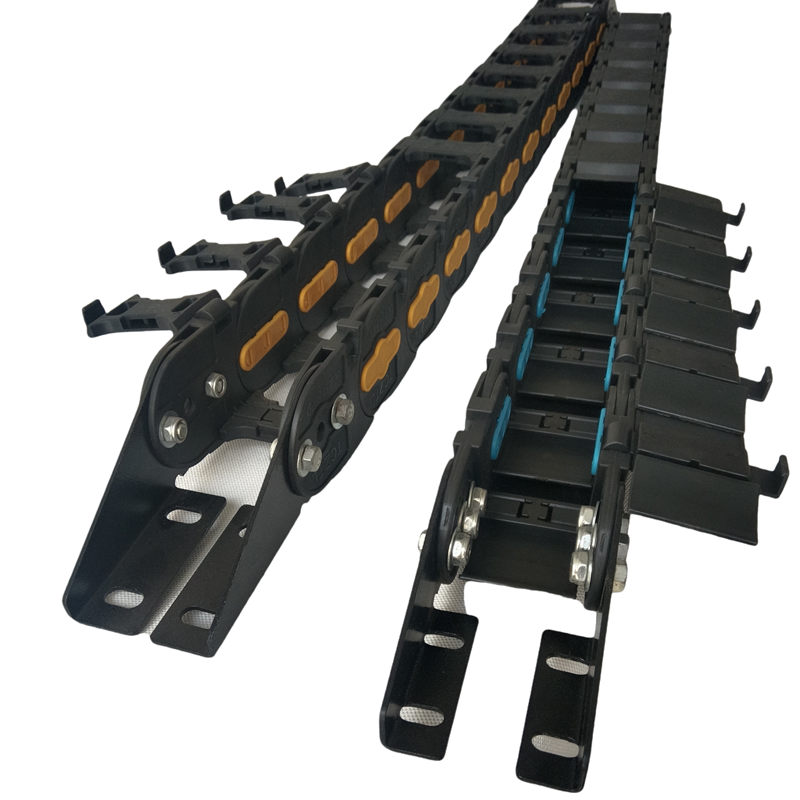

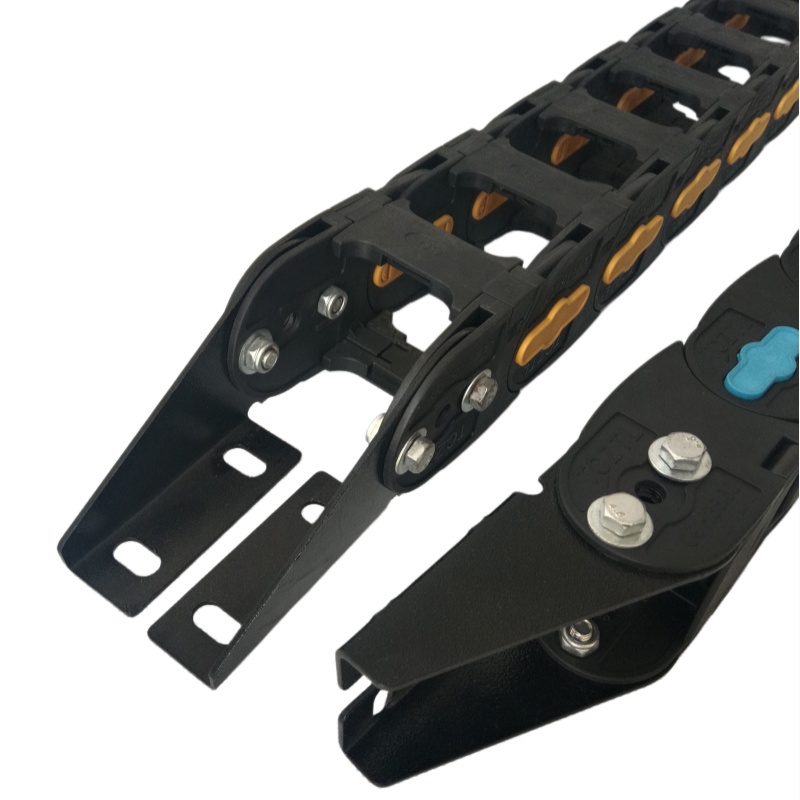

Heavy duty enery chain reinforced plastic cable drag chain is designed with side open structure for fast wiring and daily maintenance. Adopts 3 pins and pocket body link design, the robust openable cable chain keeps stable operation without distortion or falling off during frequent reciprocating movement.Equipped with high-strength metal end connectors for strong tensile resistance and firm mounting.The advantages of side open type drag chain are as followed :flexible, wear-proof, oil-resistant and easy for cable installation and maintenance as well as supportting high dynamic loads and long travel distances.

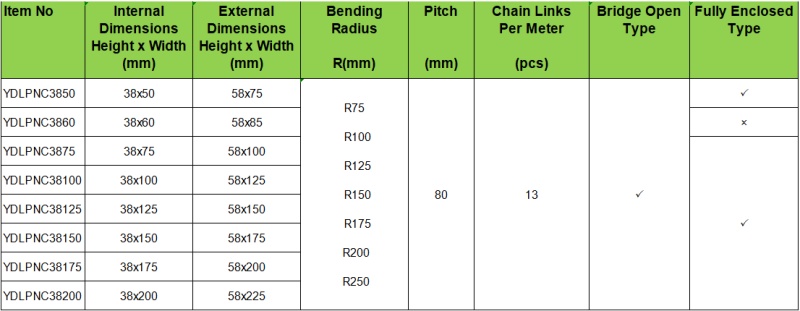

Popular Sizes and Applications :
●38X50mm-2 to 4 small cables, air hoses, control wires and signal wires
-small CNC lathes, engraving and milling machines, small robotic arms, dispensing machines, 3D printers and small packaging machines
●38X75mm-conventional power cables, control cables, plus 2–4 oil pipes or air hoses for medium wire harness layout
-CNC milling machines, machining centers, laser cutting /engraving machines, bending machines, punching machines, automated conveyor lines and gantry robot manipulators
●38X100mm-multiple cables plus several oil hoses, large wire harness quantity, internal separator plates required
-gantry machining center, small gantry crane, overhead crane trolley, plasma cutting machine, wood cutting machine and automatic spraying equipment
●38X125mm-multiple wires with mixed thick and thin sizes, requiring layered and separated wiring layout
-large automated assembly lines, photovoltaic equipment, lithium battery assembly equipment and heavy-duty gantry robots
Selection Guide :
●Bridge open type nylon cable chain with metal end brackets-clean environment with no iron filings and little oil pollution, featuring good heat dissipation, visible cables for easy inspection and maintenance, cost performance, light weight and lower operating noise
●Enclosed side openning nylon cable carrier with steel end connectors-workshops with iron filings, cutting fluid, oil contamination and heavy dust; outdoor sites, gantry cranes and welding slag environments; requires full cable protection against water ingress and debris
