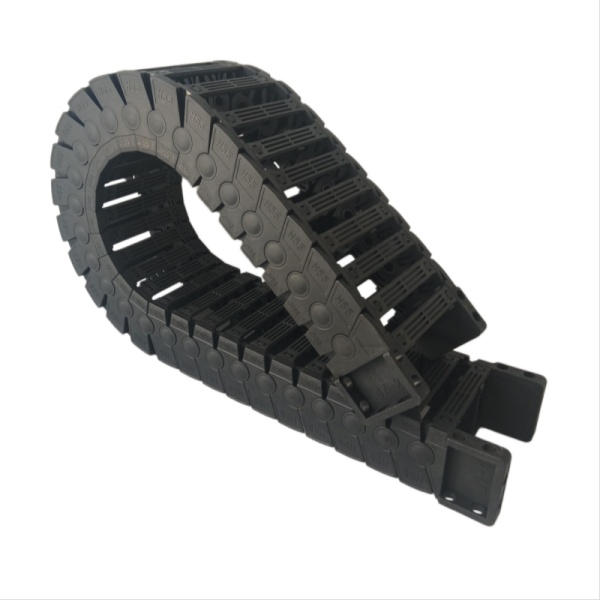

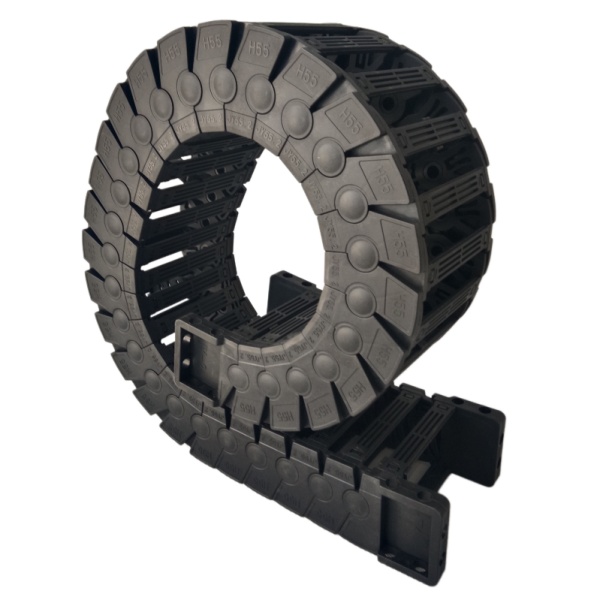

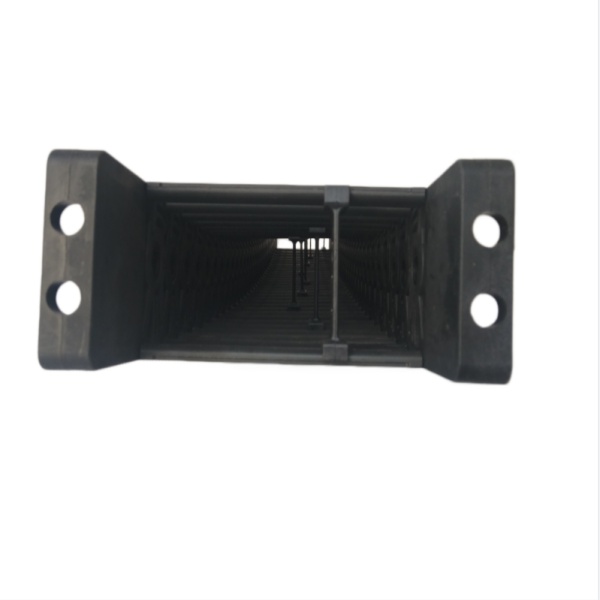

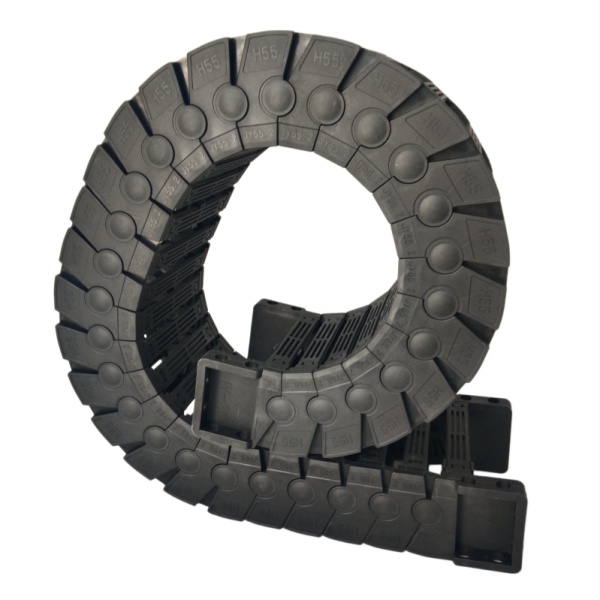

This product series is a low noise and high speed plastic (reinforced nylon PA66+30%glass fiber ) cable drag chain (also known as silent energy chain or mute cable carrier). The marking "H55" indicates its inner height is 55mm, and it is a bridge-type, partially open design (common in JY series drag chains.
Key Features:
(1)High-Speed Operation (10 m/s)
(2)Ultra-Low Noise (40 dB)
(3)30% Glass Fiber Reinforced PA66
(4)Wide Operating Temperature (-30°C to 130°C)

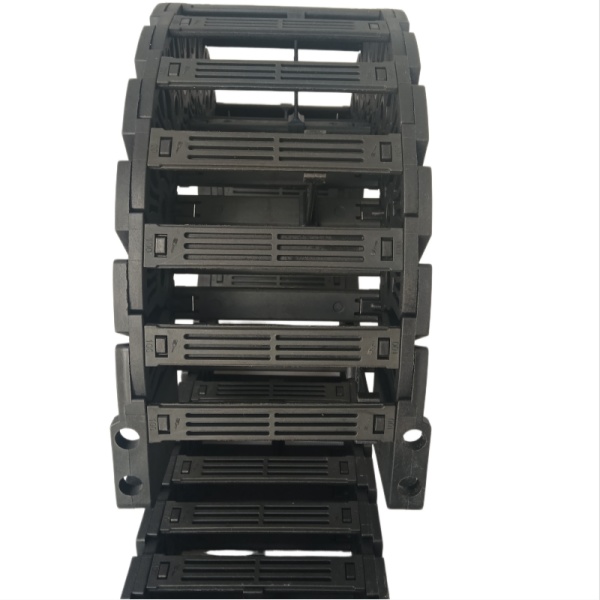

(5)Dual Bridge Open Lid +separators optional
(6)Self-Supporting Design with lighter weight and smaller external sizes
(7)CE & RoHS Compliant

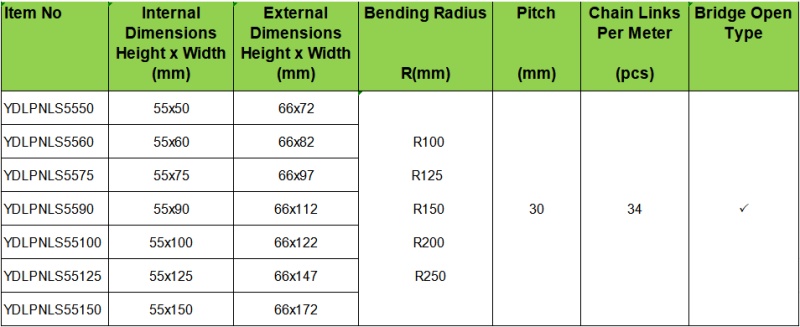

Popular Sizes and Applications :
●55x75mm,R100mm-CNC Vertical Machining Centers (VMC),3-axis CNC lathes,Automated packaging machines
●55x100mm,R100/125mm-Small CNC router, compact machining center, single-axis gantry
●55x125mm,R125/150mm-Standard 3–4 axis CNC mill, medium industrial robot, waterjet cutter
How to Choose the Right Size:
Step 1: Choose Inner Height-Inner height of drag chain ＞ 1.2~1.5 times of wire diameter
Step 2: Choose Inner Width- Inner width of cable chain = total wire width + reserved 20% space
Step 3: Choose Bending Radius-Check the arc size at the drag chain turning point of the equipment, prefer a larger radius over a smaller one

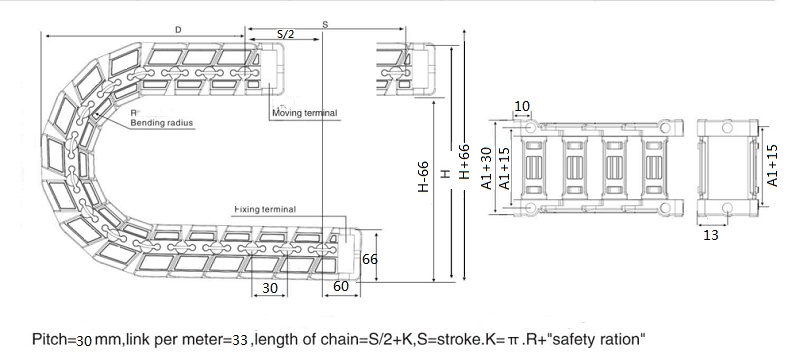

Step 4: Confirm Installation Length-S/2+K (Rπ+2P)
