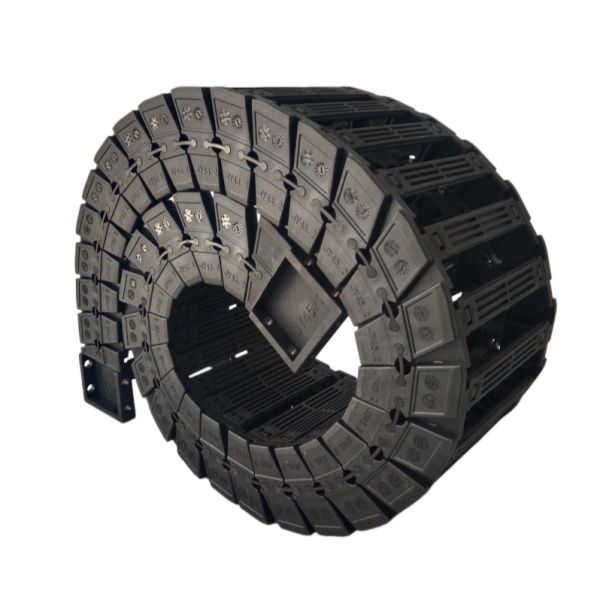

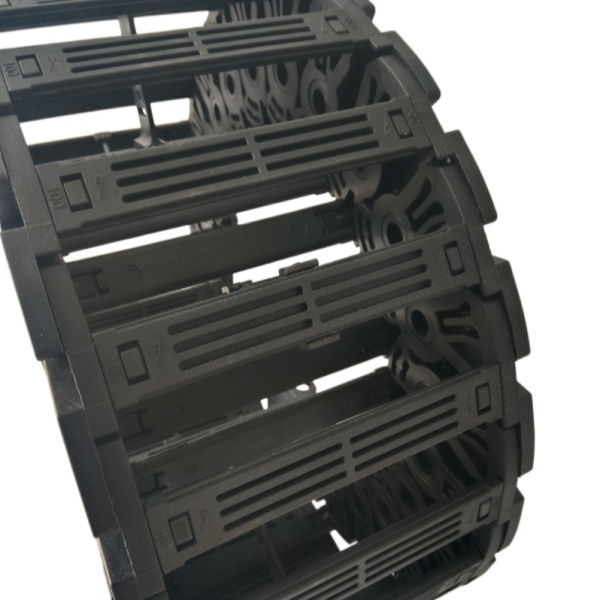

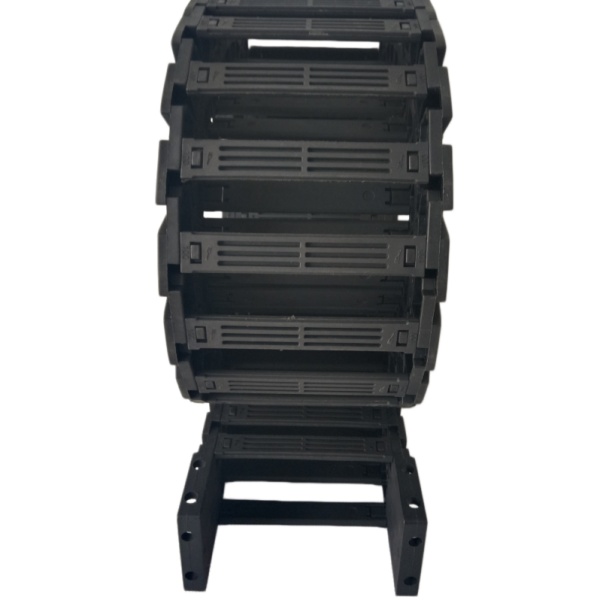

Our JY45 series 45mm inner height high-speed energy chains silent cable track chains is specially engineered for precision linear motion industries. Made of glass fiber reinforced PA66 nylon, the low noise plastic drag chains runs stably at high speed with ≤55dB ultra-low noise, effectively protecting power cables, signal wires and air hoses from winding, friction and damage during reciprocating movement.Adopt open bridge modular hinged design structure, easy to disassemble, install and arrange internal cables or hoses. The optimized high elasticity hinged rubber spring joint design reduces running resistance, greatly extends service life, and fits long-stroke frequent reciprocating equipment.

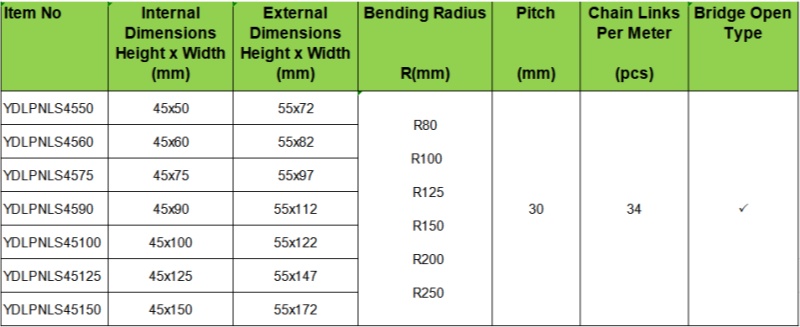

Popular Sizes and Applications :
●45x50mm,R80mm-Small CNC lathes, control cabinets, electronic equipment

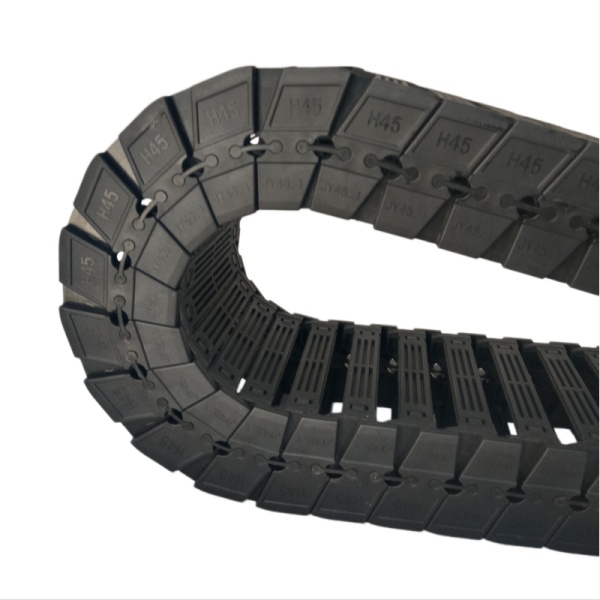

●45x75mm,R100mm-Industrial robots, pick-and-place units, semiconductor equipment

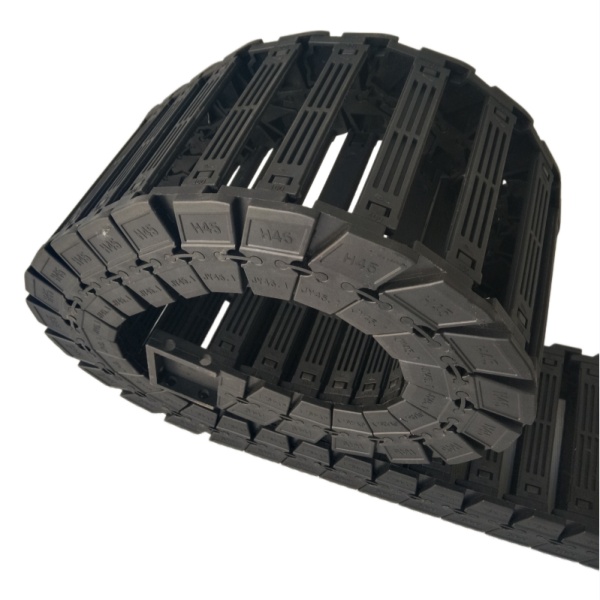

●45x100mm,R150mm-Gantry systems, large injection molding machines, heavy automation
How to Choose the Right Size:
Step 1: Choose Inner Height-Inner height of drag chain ＞ 1.2~1.5 times of wire diameter
Step 2: Choose Inner Width- Inner width of cable chain = total wire width + reserved 20% space
Step 3: Choose Bending Radius-Check the arc size at the drag chain turning point of the equipment, prefer a larger radius over a smaller one

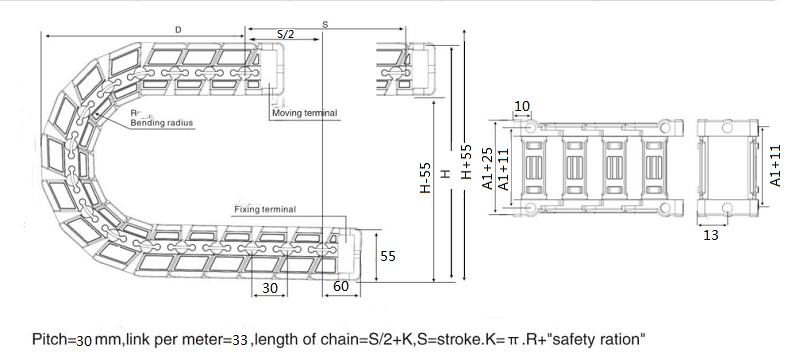

Step 4: Confirm Installation Length-S/2+K (Rπ+2P)
