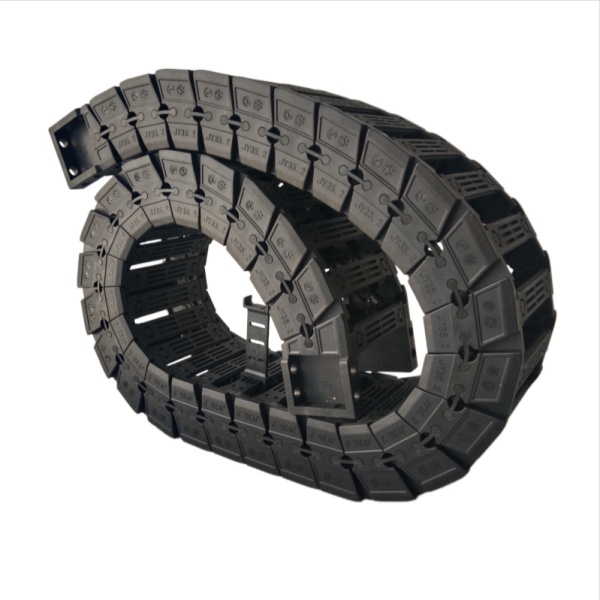

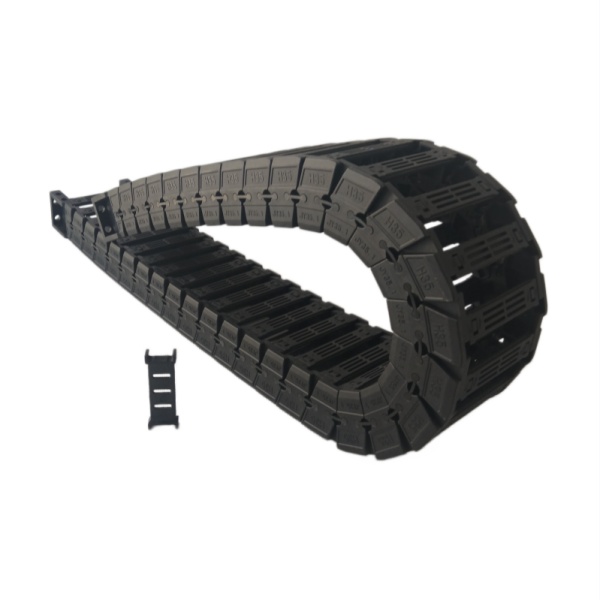

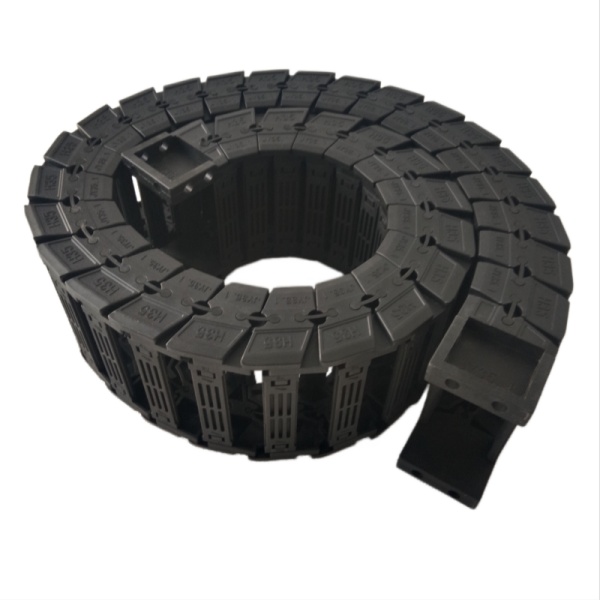

35mm inner height high-speed silent cable carrier is designed for demanding high speed cyclic motion with smaller external height Unlike standard drag chains that generate friction noise and vibration, JY35 mute cable chain series features specially damped link stoppers and a rounded inner contour that reduces cable abrasion.the JY35.2 model plastic tow chain features a lightweight bridge structure that minimizes load on moving parts. Its optimized link geometry enables speeds up to 5m/s with low noise and minimal vibration, making it perfect for precision applications like SMT machines and 3D printers where accuracy and quiet operation are critical.
Key technical highlights:
●Inner height: 35mm
●Material: Reinforced PA66 Nylon
●Noise Level: ≤55dB
●Max Speed: 5m/s

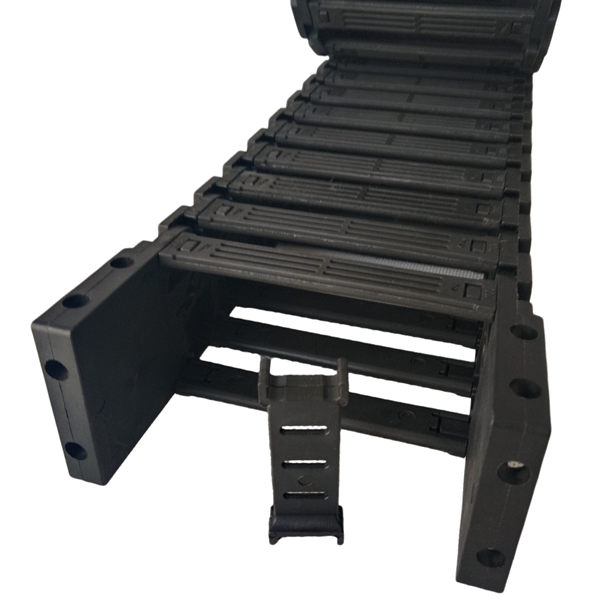

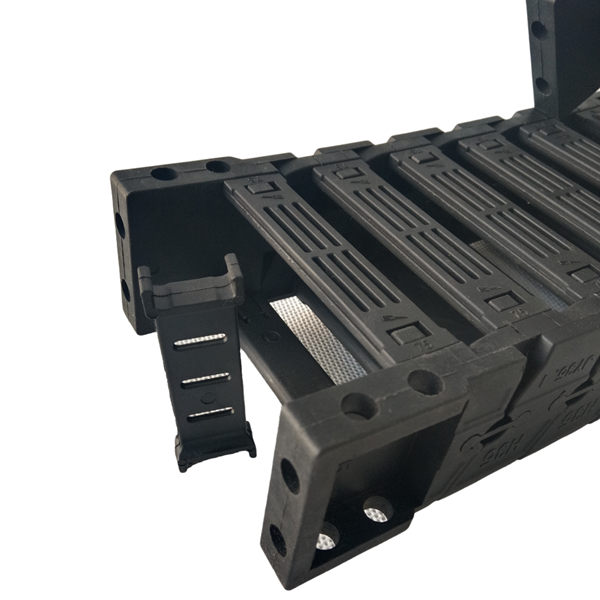

●Structure: Open Bridge Type ,separators optional

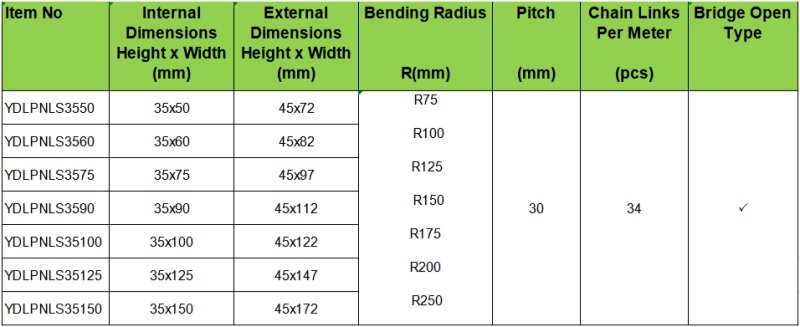

Popular Sizes and Applications :
●35x75mm,R100mm-3‑axis CNC machining center
●35x100mm,R125mm-High‑speed pick‑and‑place robot (PCB assembly)
●35x125mm,R150mm-Woodworking CNC router
How to Choose the Right Size:
Step 1: Choose Inner Height-Inner height of drag chain ＞ 1.2~1.5 times of wire diameter
Step 2: Choose Inner Width- Inner width of cable chain = total wire width + reserved 20% space
Step 3: Choose Bending Radius-Check the arc size at the drag chain turning point of the equipment, prefer a larger radius over a smaller one

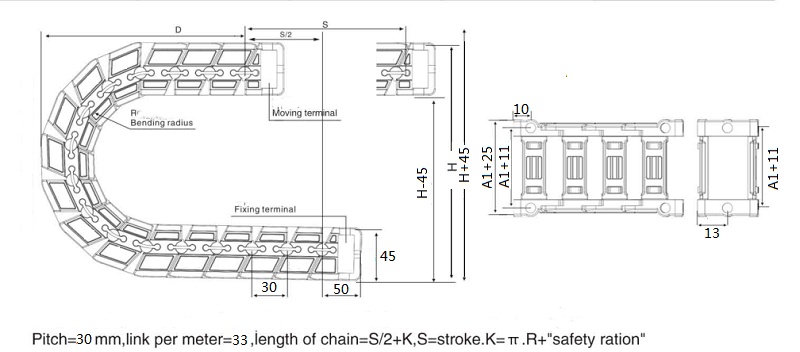

Step 4: Confirm Installation Length-S/2+K (Rπ+2P)
