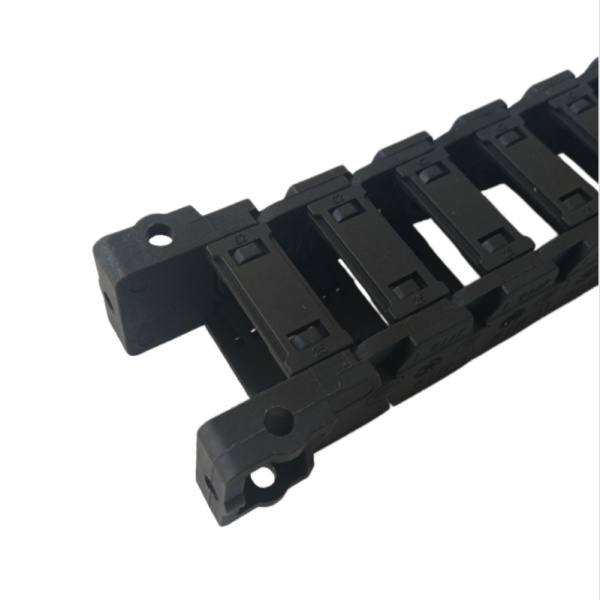

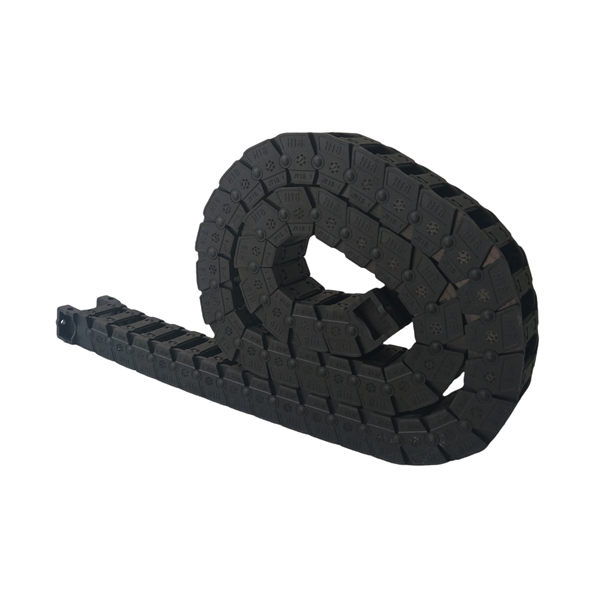

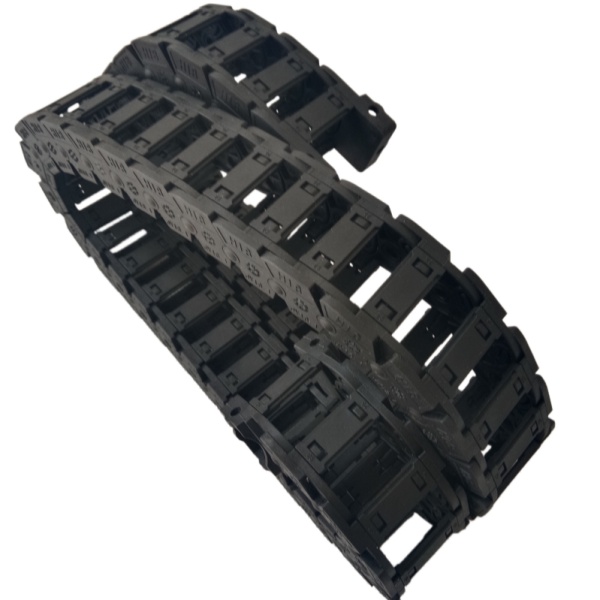

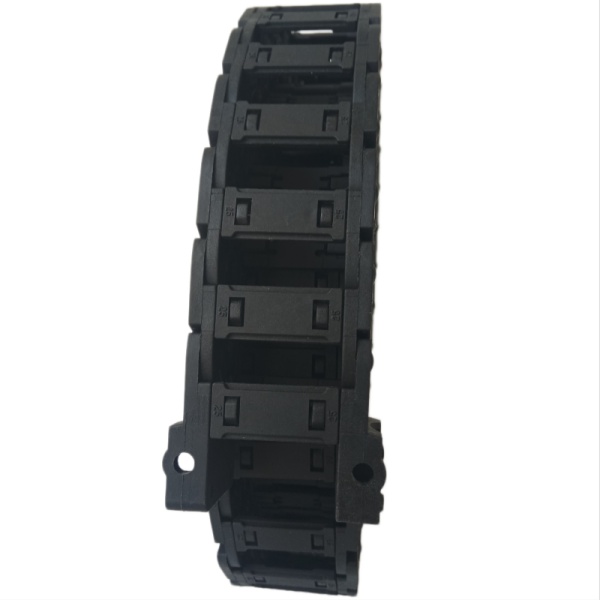

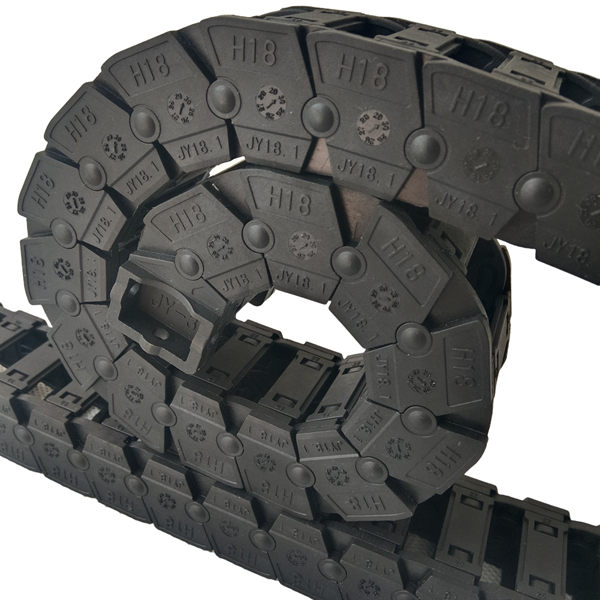

This is the H18 series open-type silent nylon cable drag chain, a high speed and flexible low noise cable carrier designed to protect wires, cables, hoses and tubes as well as optimizing your equipment’s cable routing in CNC machines, 3D printers, industrial robots, packaging machinery and other automation systems.With a precise 18mm inner height,this miniature slient cable carrier is ideal for tight spaces and high-frequency reciprocating motion.Made of reinforced PA66 nylon with glass fiber, the mute plastc chain features an openable bridge structure for easy cable installation and maintenance come along with low noise, high wear resistance and long service life.

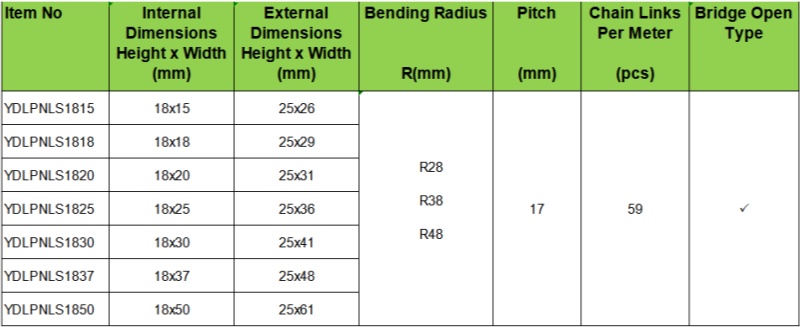

Popular Sizes and Appllications :
●18x20mm,R38mm-Desktop 3D Printers, Mini CNC Engravers,Small CNC Routers, Desktop Pick-and-Place Robots,Laser engraver/cutter (CO₂ or diode)
●18x25mm,R38mm-Small CNC Routers, Desktop Pick-and-Place Robots,SCARA or desktop robot (e.g., uArm)
●18x30mm,R48mm-Medium Laser Cutters, Gantry Automation Systems,Small pick-and-place machine
How to Choose the Right Size:
Step 1: Choose Inner Height-Inner height of drag chain ＞ 1.2~1.5 times of wire diameter
Step 2: Choose Inner Width- Inner width of cable chain = total wire width + reserved 20% space
Step 3: Choose Bending Radius-Check the arc size at the drag chain turning point of the equipment, prefer a larger radius over a smaller one

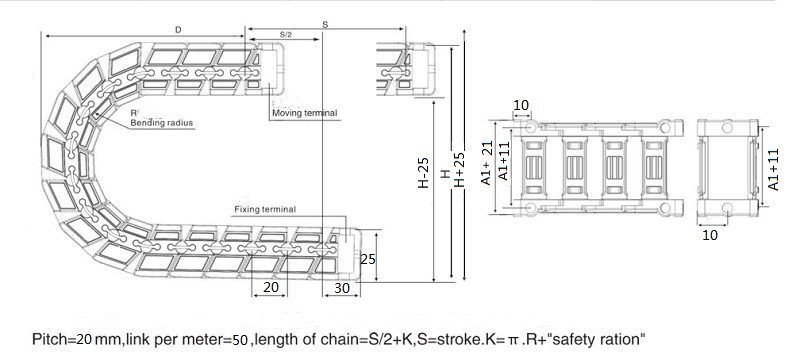

Step 4: Confirm Installation Length-S/2+K (Rπ+2P)
