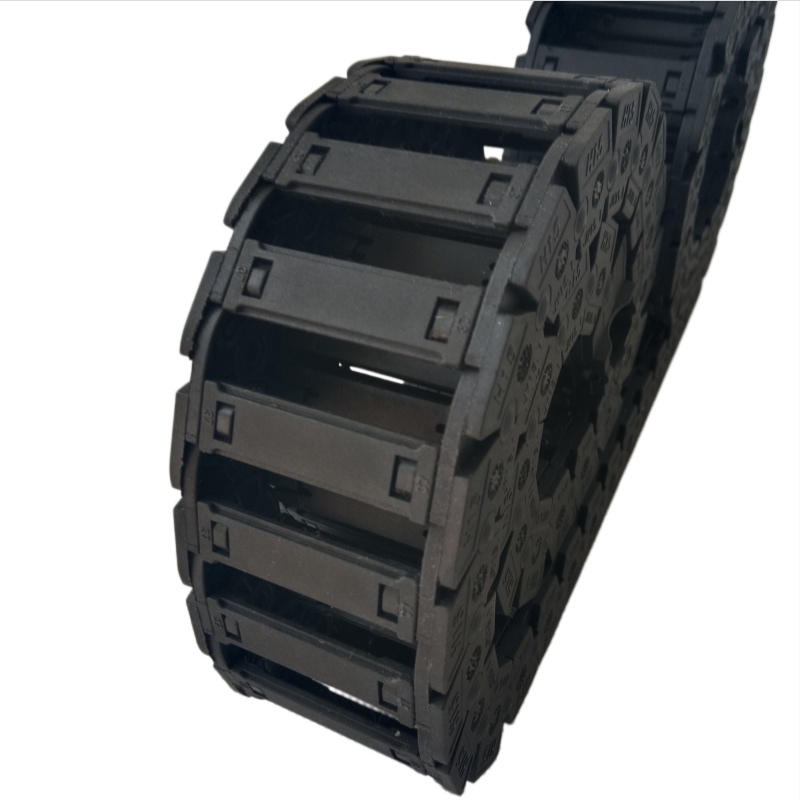

When your machine must run fast, smooth, and silent or extremely low noise ,every millimeter of space counts , our 15 mm inner height silent nylon drag chain is the answer. Inner height 15mm series mute drag chain combines the low‑noise, low‑vibration characteristics of a premium cable carrier with an extremely compact cross‑section, making it ideal for a new generation of lean, automated equipment.

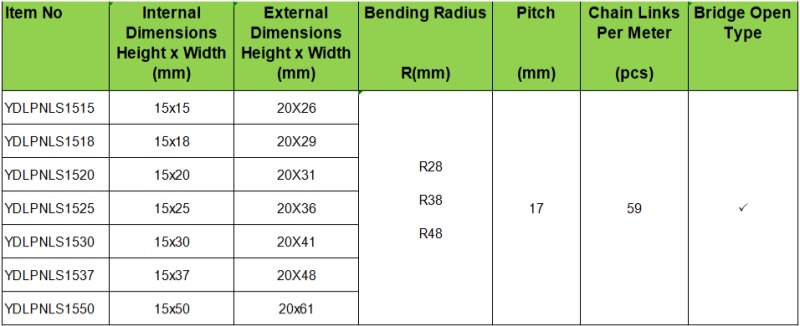

Popular Sizes and Appllications :
●15x20mm,R38mm-Desktop FDM 3D Printer, Mini Linear Module, Small PCB Engraving Machine,chip mounter,semiconductor
●15x25mm,R38mm-Mid-range Desktop 3D Printer, Small Automation Equipment, 3C Electronic Sorting Machine
●15x30mm,R38mm-High-speed 3D Printer, Small Laser Engraver, Mini Robotic Arm, AOI Inspection Machine
How to Choose the Right Size:
Step 1: Choose Inner Height-Inner height of drag chain ＞ 1.2~1.5 times of wire diameter
Step 2: Choose Inner Width- Inner width of cable chain = total wire width + reserved 20% space
Step 3: Choose Bending Radius-Check the arc size at the drag chain turning point of the equipment, prefer a larger radius over a smaller one

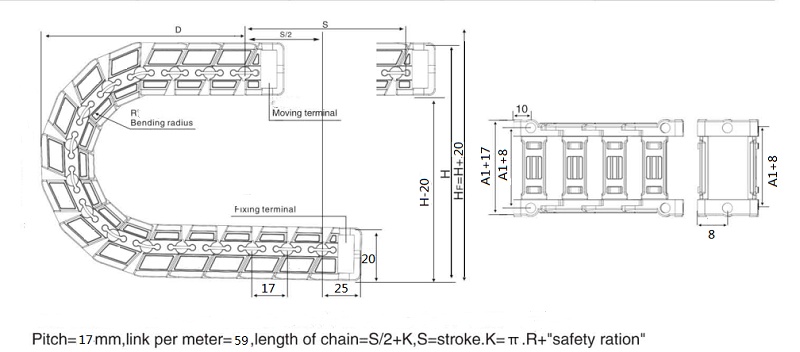

Step 4: Confirm Installation Length-S/2+K
