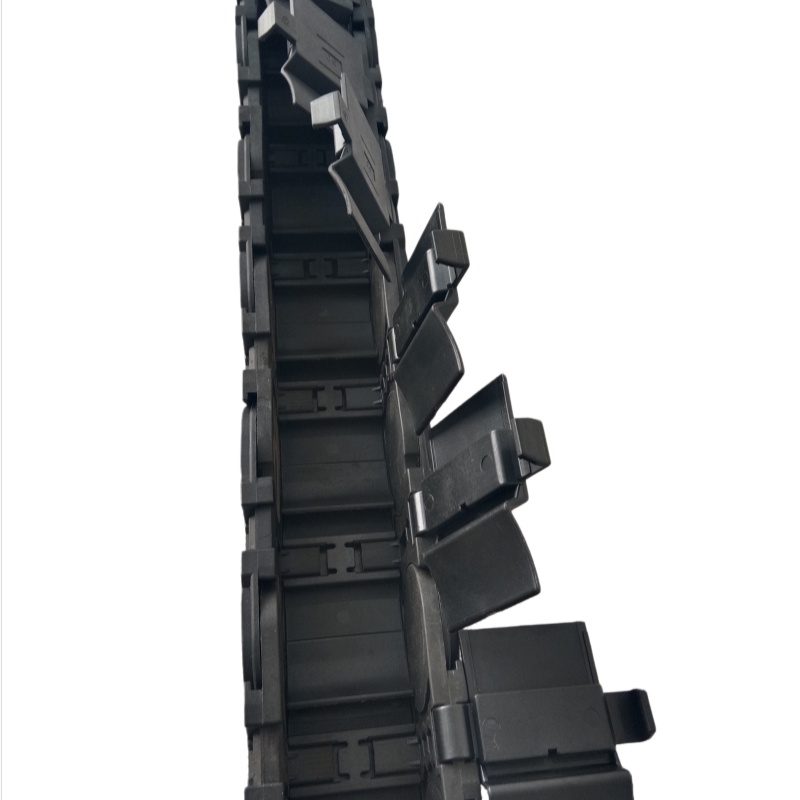

This side-opening reinforced cable carrier is specifically designed for applications that demand heavy loads, long travel distances and high‑dynamic motion. The 55mm inner height of plastic drag chains provides generous space for thick power cables, control cables, hydraulic hoses, and pneumatic tubes. The innovative side‑access design allows snap‑opening of crossbars or cover plate from either side, making cable filling and replacement extremely fast – even in tight machine spaces.The upgraded reinforced structure from nylon cable chain ensures high impact resistance and stable long-term operation.
Applications :
●CNC machine tools: gantry machining center, heavy duty CNC lathe, vertical/horizontal machining center, CNC boring and milling machine, floor type CNC machine tools
●Laser cutting equipment: fiber laser cutting machine, plasma cutting machine, flame cutting machine, waterjet cutting machine, stone & glass cutting equipment
●Automated production line: automotive welding / coating production line, 3C electronic assembly line, logistics sorting equipment, intelligent warehouse stacker, industrial robot (six-axis / seven-axis /truss manipulator)
●Large woodworking engraving machine:CNC panel saw, edge banding machine, stone CNC machining center, marble /granite cutting machine
●Heavy-duty special equipment: injection molding machine, die-casting machine, hydraulic machinery, construction machinery (crane / excavator), wind power equipment, port machinery, large packaging machine

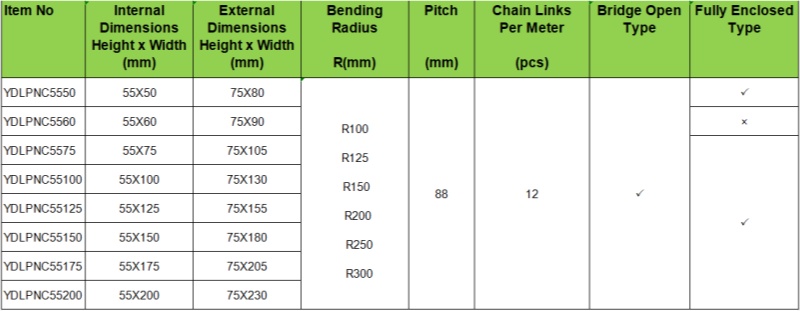

Popular sizes :
(1)55x75mm-CNC machine tools-typically 4 to 10 standard cables
(2)55x100mm-The most popular 'golden' size, widely adopted by CNC machine tools, robots, and automated production lines, 6 to 15 standard cables
(3)55x125mm-An upgraded choice, commonly in CNC machine tools, automated production lines, and small to medium-sized cranes, 8 to 20 standard cables
(4)55x150mm-A wide-body option, typically found in large machine tools, port machinery, and lifting equipment, 10 to 25 or more standard cables
Selection Guide :

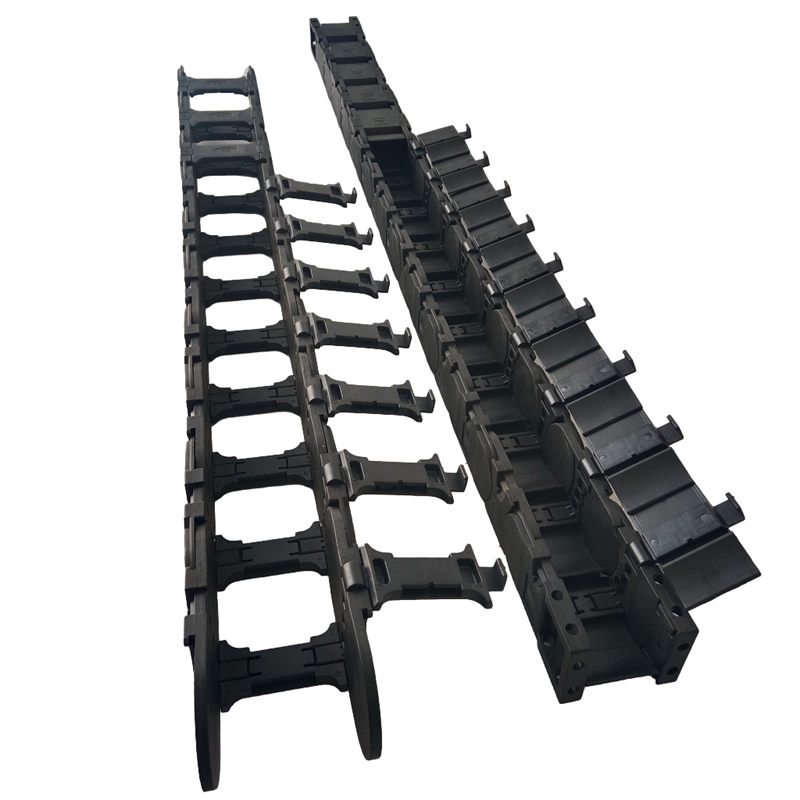

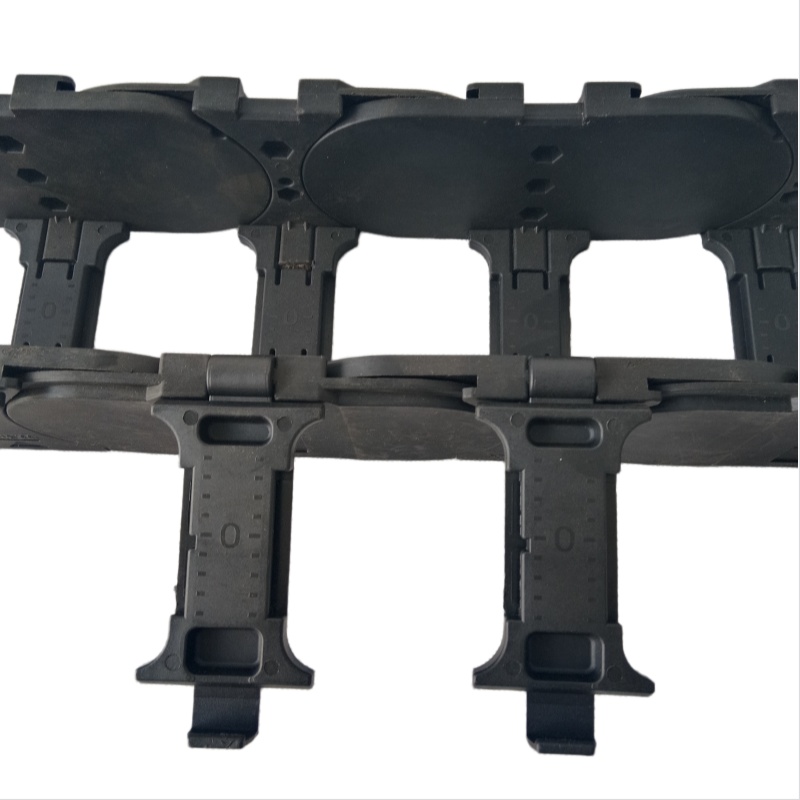

●Bridge nylon drag chain-When the working environment is relatively clean and dry, and you need to frequently inspect, maintain, or add/remove internal cables and hoses

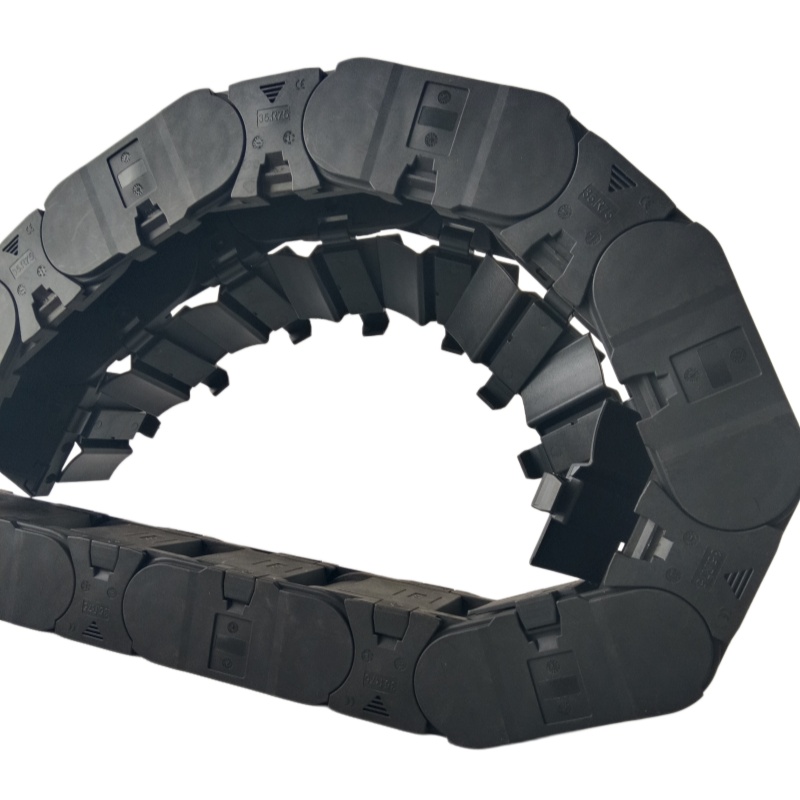

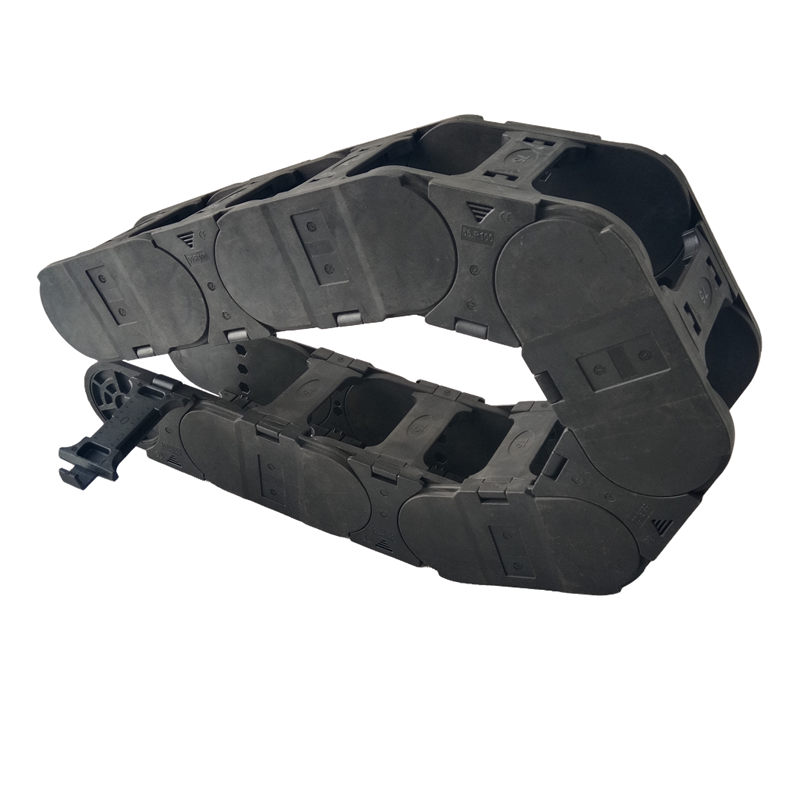

●Enclosed nylon cable chain-When the working environment is harsh, with large amounts of debris, dust, and oil that may damage cables/hoses and equipment
