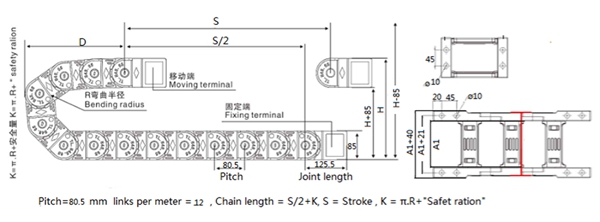

Inner Height: 65mm(2.56in)
Inner Width: 50-300mm(1.97-11.81in)
Outer Height: 85mm(3.35in)
Outer Width: 82-332mm(3.23-13.07in)
Bending Radius: R100/125/150/200/250/300mm(3.94/4.92/5.91/7.87/9.84/11.81in)
Pitch : 80.5mm(3.17in)
Links per Meter: 13 pcs
Max cable diameter: 58.5mm
Structure: openable bridge type
End brackets :rectangular connectors
Material: 30% glass fiber +nylon PA66
Length: cut to length / customization
Color :black body with yellow pins/fully black

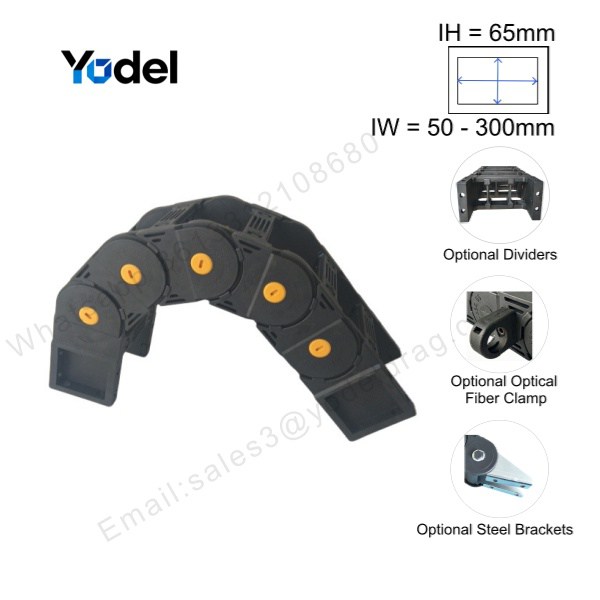

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link/steel mounting brackets
MOQ : 1Meter or Set
Custom available (logo /color )

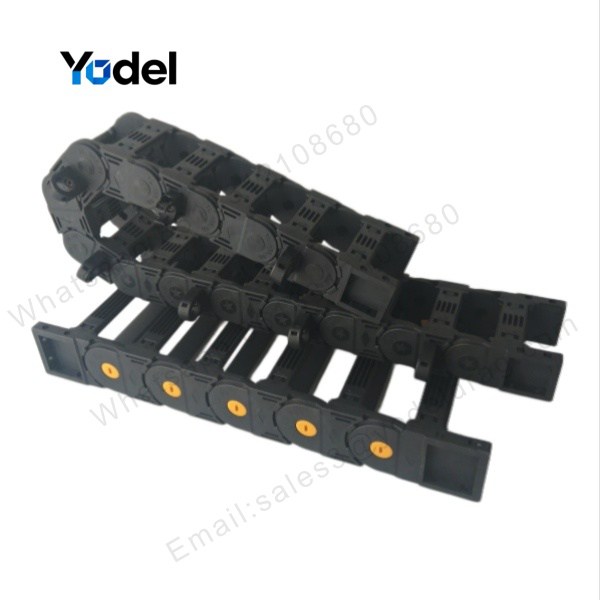

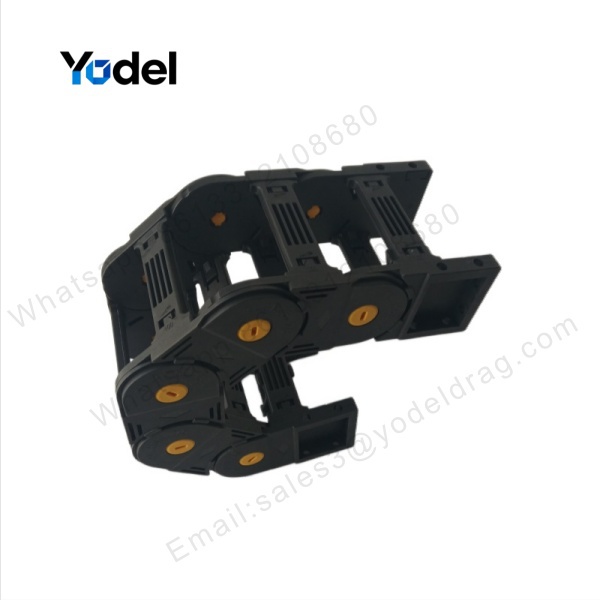

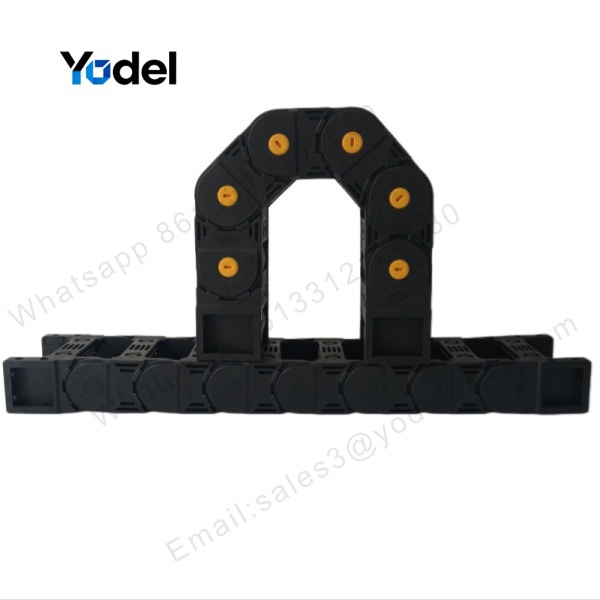

The 65x200 bridge type CNC drag chain is a reinforced heavy-duty cable carrier molded from 30% glass-fiber reinforced PA66 nylon. With 65mm inner height and 200mm inner width, this model accommodates cables up to 60mm outer diameter and supports 20-25+ standard cables or hoses. The open-top design ensures fast heat dissipation and easy cable access — whether you search for it as a cable carrier, cable chain, or cable track.
This model is specifically engineered for heavy-duty applications where substantial cable and hose loads would exceed the capacity of standard 45mm or 55mm plastic drag chains. The reinforced side links and larger cross-section provide the structural strength needed to handle heavy power cables, thick hydraulic hoses, and large fiber optic bundles without deformation or premature wear. While built primarily for heavy loads, this robust construction also enables excellent performance in long-travel applications — the high rigidity prevents sagging and "snaking" over extended distances, making it equally suitable for large gantry systems and long-stroke automation equipment.
|
Parameter |
Value |
|
Inner Height |
65 mm |
|
Inner Width |
200 mm |
|
Outer Height |
85 mm |
|
Outer Width |
232 mm |
|
Pitch |
80.5 mm |
|
Chain Links per Meter |
13 pcs |
|
Bend Radius |
R100 R125 R150 R200 R250 R300 |
|
Max Cable OD |
58.5 mm |
|
Material |
30% GF + PA66 |
|
Operating Temp |
-40°C to +130°C |
♦High strength & rigidity – withstands heavy cable loads without bending
♦Excellent fatigue resistance – 10M+ cycle life under continuous operation
♦Heat tolerance up to 125°C – stable in high-temperature environments
♦Low moisture absorption – maintains dimensional precision in humid conditions
♦Superior wear resistance – reduces friction-related damage over extended service
♦Long service life – less frequent replacement, lower maintenance costs
We offer full customization services for this model:

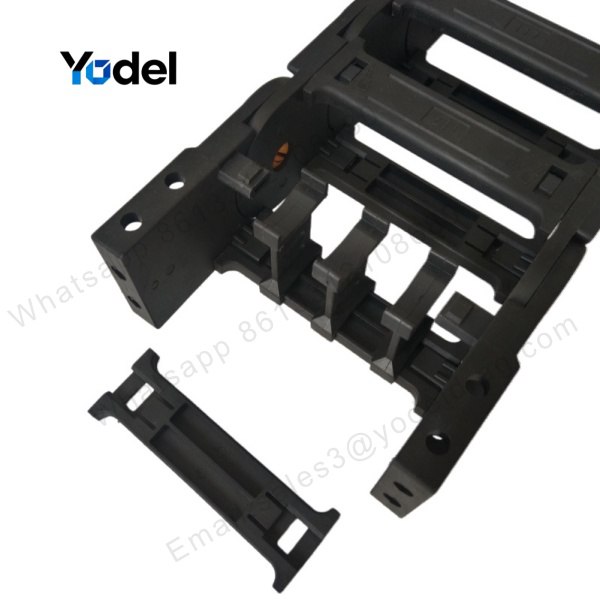

♦Inner separators – vertical dividers for organized cable routing and reduced friction
♦Side-mounted fiber clips – secure fiber optic cables separately from power lines
♦Steel mounting brackets – replace standard plastic brackets with steel for increased load capacity and durability in heavy-duty applications
♦Logo printing – brand marking on chain links
♦Custom colors – available in any RAL color (standard: fully black /black body with yellow pins )
The 65x200 is purpose-built for heavy-duty equipment with large cable and hose bundles. Its high load capacity and structural rigidity also make it an excellent choice for long-travel systems. Typical applications include large CNC gantry machining centers, heavy-duty CNC lathes, large-format laser and plasma cutting systems, heavy industrial automation, and high-load material handling equipment.
For machines with smaller routing spaces or lighter cable loads, we recommend our 45mm or 55mm series instead.
