Reinforced glass fiber added PA66 nylon cable carrier, 45mm inner height, high load capacity , openable bridge and enclosed design structure , temp -40℃ to +120℃,for CNC machine tools, industrial robots & automation
Our 45mm Inner Height Reinforced Nylon Energy Chain is a high-performance cable protection solution engineered to excel in heavy-duty industrial scenarios, standing out with superior strength, durability and versatility that surpass ordinary nylon PA66 or PA6 drag chains. Crafted from high-strength reinforced glass fiber added PA66 nylon, the enhanced plastic cable track chain boasts enhanced rigidity and load-bearing capacity, ensuring stable operation without deformation even during long-term heavy-duty reciprocating motion.The fixed inner height of 45mm is paired with multiple common sizes and flexible bending radius options, while its openable cover plate design allows for quick cable installation and maintenance—internal dividers can also be added for neat cable arrangement, reducing tangling and wear.
Applications:
●CNC machine tools
●Small and medium machining centers
●Automatic production lines
●Industrial robots and robotic arms
●Laser cutting machines
●Engraving and milling machines
●Injection molding machines
●Packaging machinery
●Automation conveying equipment

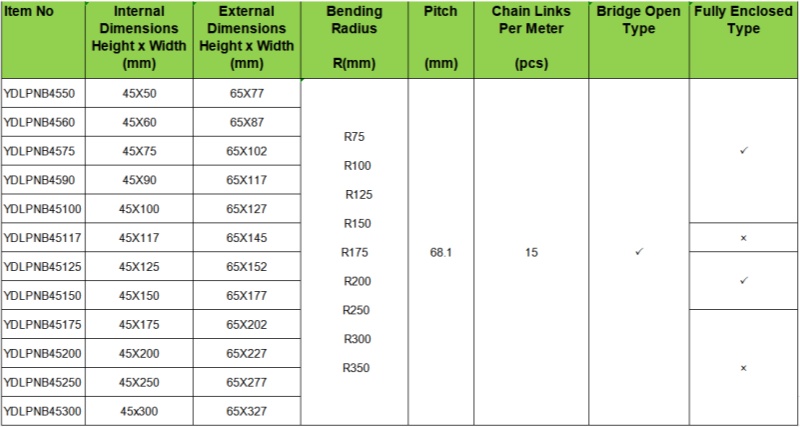

Popular Sizes :
(1)45×50/45×75mm-for just a few thin cables/hoses /wipes
(2)45×100/45×125mm-the most popular size range, ideal for CNC machines, robots, and other equipment requiring a mix of power cables, encoder cables, air hoses, and more
(3)45×150 /45×300mm-Many lines or thicker hydraulic hoses
Selection Guide :
●Bridge energy chain -promotes heat dissipation, allows easy visual inspection of cables, convenient for adding, removing, or replacing cables, simple structure, and cost-effective
●Enclosed cable chain -blocks chips, dust, oil, and coolant; lowers noise during operation;for harsh environments: CNC machines, welding robots, outdoor equipment, and more
