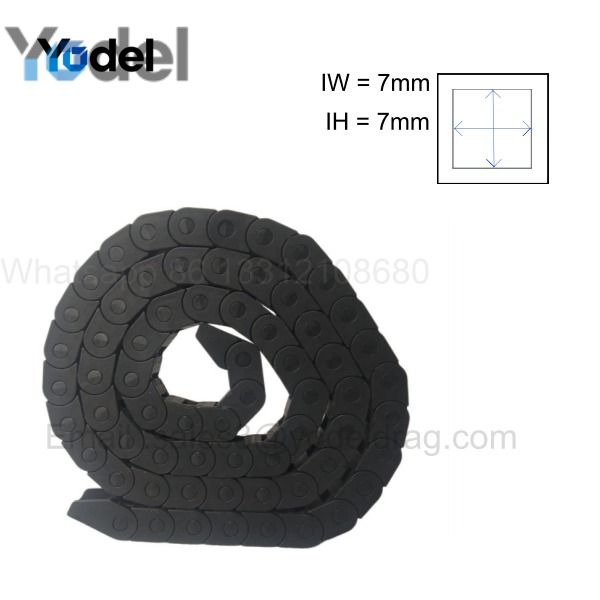

Inner Height: 7mm(0.28in)
Inner Width: 7mm(0.28in)
Outer Height: 10mm(0.39in)
Outer Width: 12mm(0.47in)
Bending Radius: R 18mm(0.71in)
Pitch :17mm(0.67in)
Links per Meter:59pcs
Structure: One-Piece Bridge Type

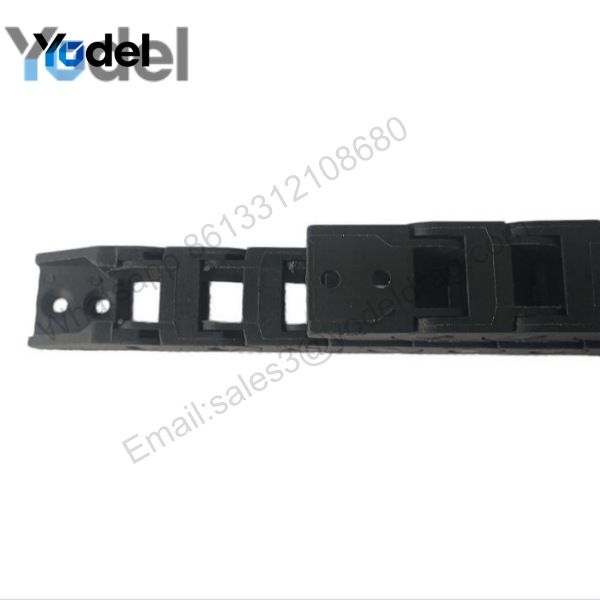

End brackets :inclined /triangular connectors
Material: Engineering Nylon
Length: Cut to length / Customization
Color :fully black
MOQ : 1Meter or Set

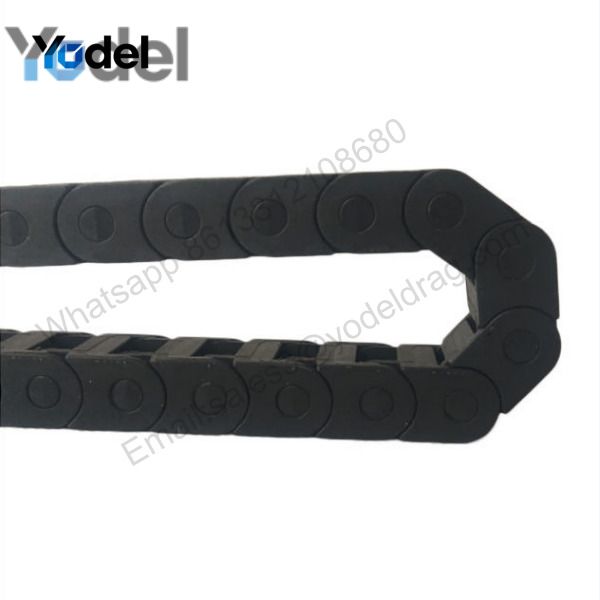

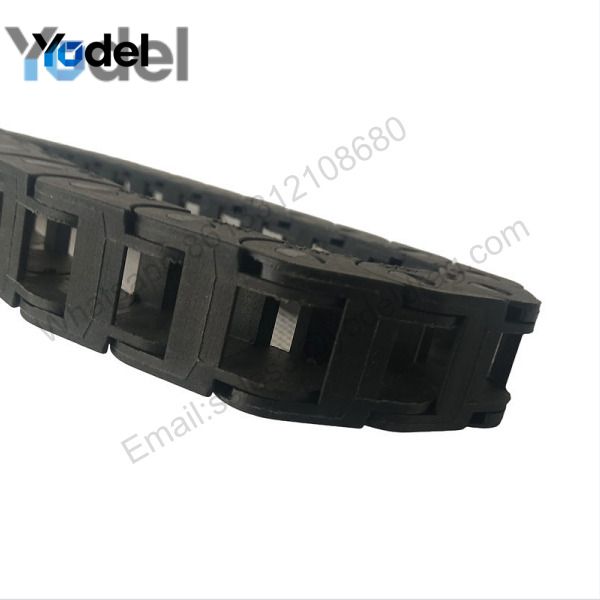

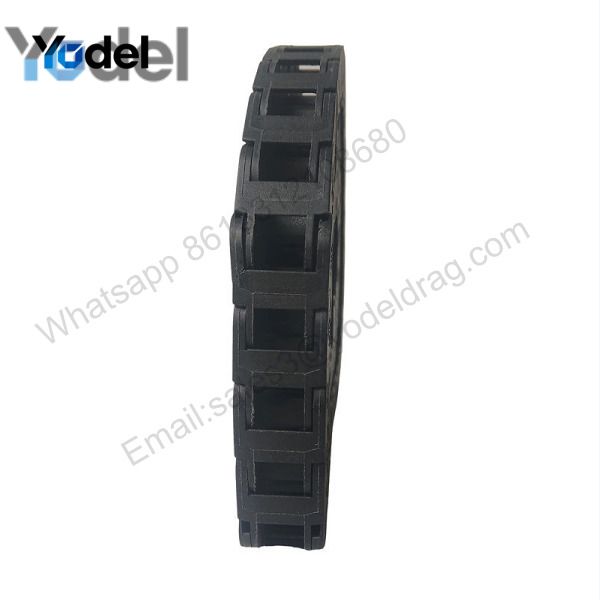

The 7x7mm miniature cable carrier is one of the smallest industrial-grade PA66 energy chains on the market. With an inner heigth and width of 7x7mm, it is specifically engineered for applications where space is extremely limited but reliable cable protection is still required.
| Item No | YDLS77 |
| Internal Dimensions (H x W) | 7x7 mm |
| Outer Dimensions (H x W) | 10x12 mm |
| Bending Radius (R) | 18 mm |
| Pitch | 17 mm |
| Chain Linkes per Meter | 59 pcs without end connectors |
| Opening Principle | one-piece |
Typical Applications:
●Desktop 3D Printer Extruders – Heater, thermistor, and stepper motor cable management
●Desktop CNC (e.g., 3018) – Spindle control cableMini CNC and small engraving machines
●Electronic and semiconductor testing equipment
●Micro Gimbals – Signal cable protection for pitch and yaw axes
●Miniature Drones – Fine signal wires between flight controller and ESCs
●Microfluidic Devices – Ultra-fine tubing and signal wire organization
Selection Advice:
●5×5mm – When space is extremely limited (e.g., only 10mm clearance near the extruder)
●7×7mm – When space is slightly more generous and you need to accommodate thicker cables (e.g., 6mm air hose)
●10×10mm – When space is ample and medium load capacity is required
|
