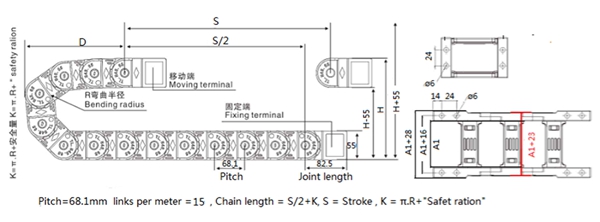

Inner Height: 35mm(1.38in)
Inner Width: 50-300mm(1.97-11.81in)
Outer Height: 55mm(2.17in)
Outer Width: 75-325mm(2.95-12.80in)
Bending Radius: R75/100/125/150/175/200/250/300mm(2.95/3.94/4.92/5.91/6.89/7.87/9.84/11.81in)
Pitch : 68.1mm(2.68in)
Links per Meter: 15 pcs
Max cable diameter:31.5mm
Structure: openable bridge type
End brackets :rectangular connectors
Material: 30% glass fiber +nylon PA66
Length: cut to length / customization

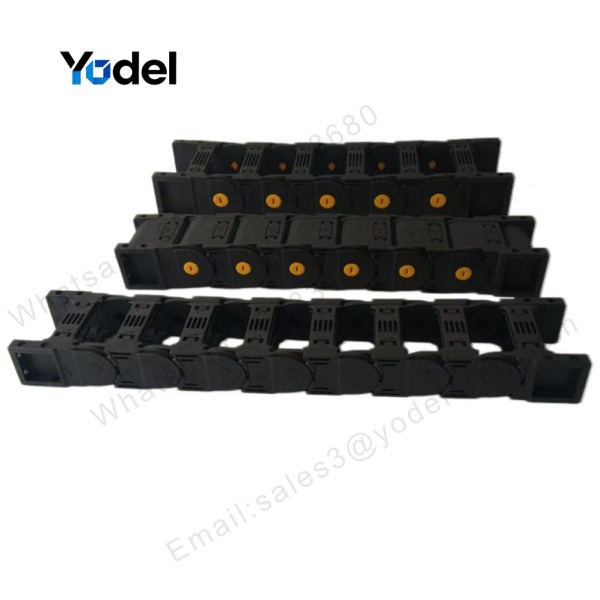

Color :black body with yellow pins/fully black

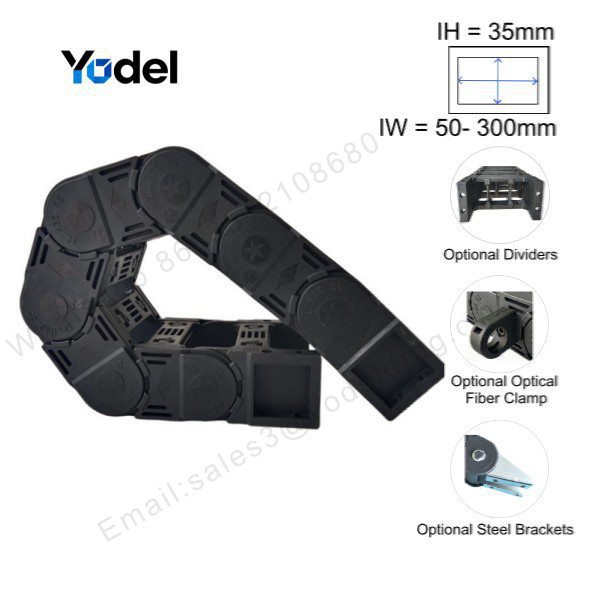

Available accessaries :inside separators (dividers )/optical fiber clamps on one side link/steel mounting brackets
MOQ : 1Meter or Set
Custom available (logo /color )

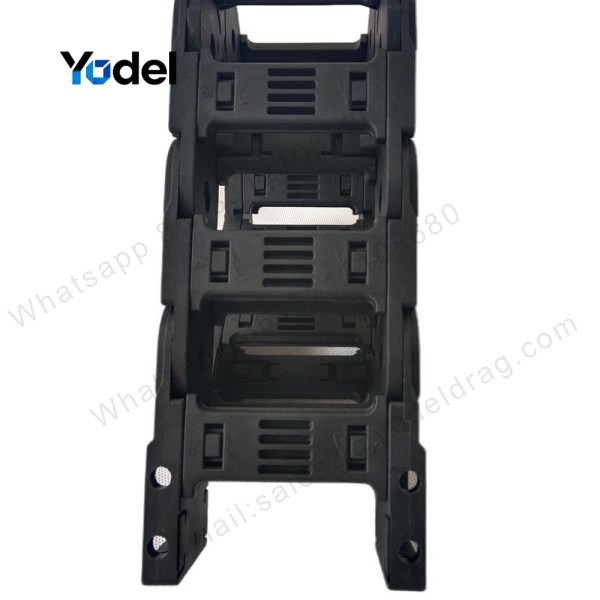

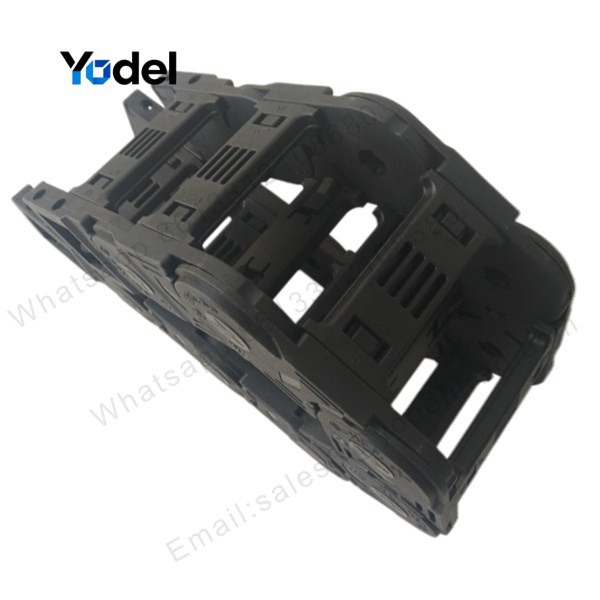

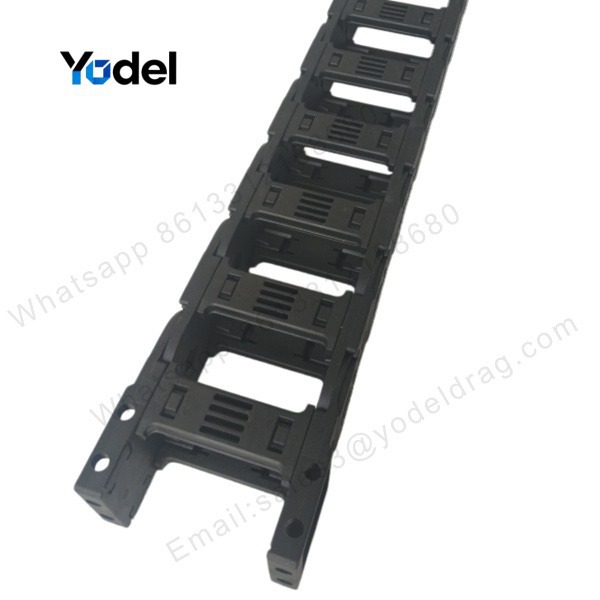

The 35x150 bridge openable type CNC drag chain is molded from 30% glass-fiber reinforced PA66 nylon. With 35mm inner height and 150mm inner width, this model accommodates up to 12-14 standard cables or hoses, making it ideal for CNC machining centers, milling machines, and laser cutters with medium to large cable bundles. The open bridge design allows fast heat dissipation and easy cable access without threading. Also referred to as 35x150 cable carrier, cable chain, or cable track.
Compared to the 25mm series, the 35x150 offers significantly more internal space — 150mm width vs. 75mm width — making it the right choice when your cable bundle exceeds the capacity of smaller plastic chains. The larger cross-section also allows for better cable separation and reduced wear between lines.
| Parameter | Value |
| Inner Height | 35 mm |
| Inner Width | 150 mm |
| Outer Height | 55 mm |
| Outer Width | 175 mm |
| Pitch | 68.1 mm |
| Bend Radius |
R75 R100 R125 R150 R175 R200 R250 R300 |
| Max Cable OD | 31.5 mm |
| Material | 30% GF + PA66 |
| Operating Temp | -40°C to +130°C |
•Higher strength & rigidity – withstands heavier loads without bending
•Better fatigue resistance – lasts longer under continuous high-speed motion
•Higher heat tolerance – performs stably up to 125°C
•Lower moisture absorption – maintains precise dimensions in humid conditions
•Superior wear resistance – reduces friction-related damage over time
•Longer service life – less frequent replacement, lower maintenance costs
We offer full customization services for this model:
•Logo printing – brand marking on chain links
•Custom colors – available in any RAL color (MOQ=1000meters)
•Inner separators – vertical dividers for organized cable routing
•Side-mounted fiber clips – secure fiber optic cables separately
•Steel mounting brackets – replace standard plastic brackets with steel for increased load capacity and added durability in heavy-duty applications
Please specify your requirements in the inquiry form below.
