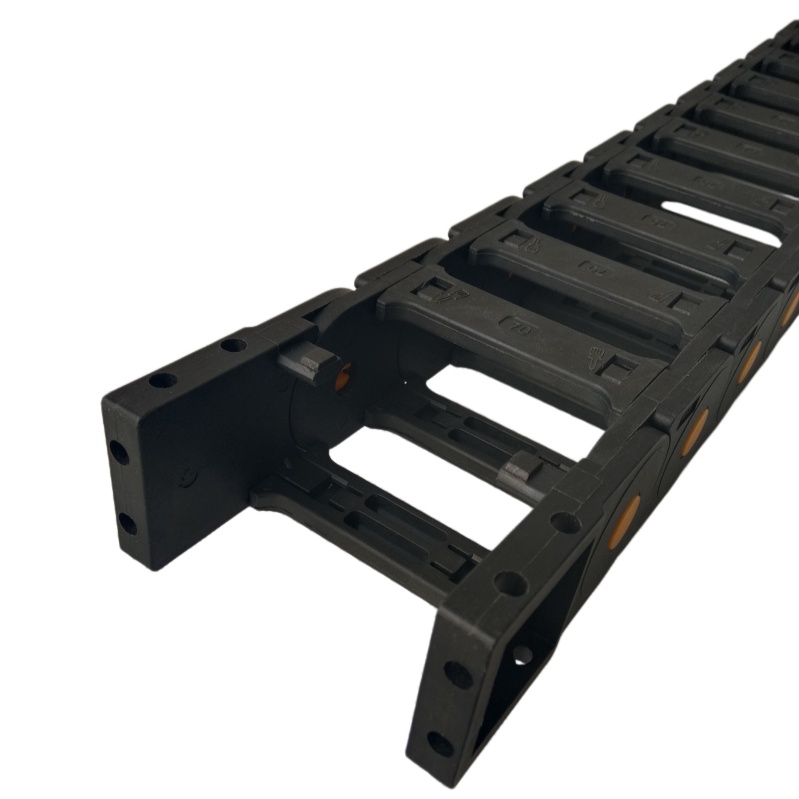

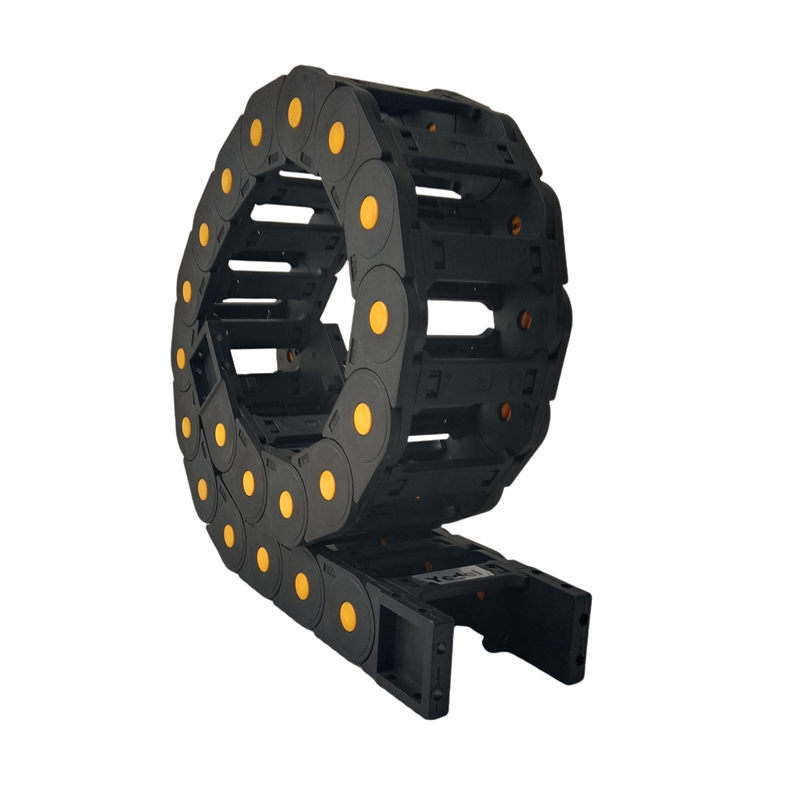

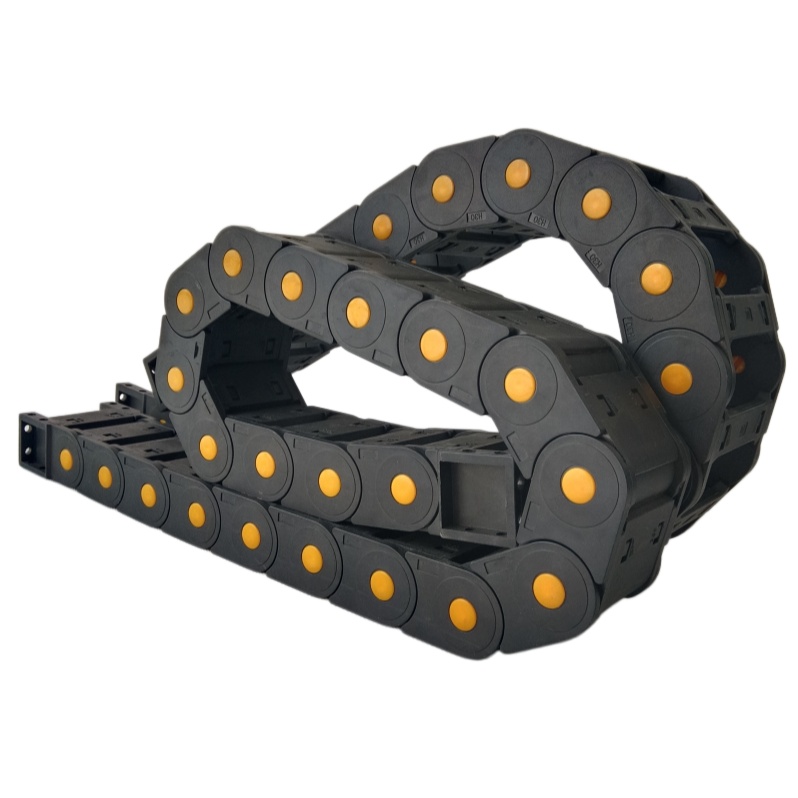

The 30mm inner height series plastic nylon drag chain is used for protecting cables, oil hoses, and water pipes in industrial machinery, extending their service life. The fully enclosed energychain is mainly used in applications where metal chips or coolant need to be prevented from entering. The openable bridge-type cable drag chain has a wider range of applications due to its easy installation, maintenance, and cable replacement. Multiple sizes and bending radii are available to choose from.
Applications :
●CNC machine tools (milling machines, lathes, machining centers
●Automated production lines and conveyor systems,automated warehouses and material handling equipment
●Industrial robots (pick & place robots, articulated robots)
●Glass machinery and door/window processing machinery
Selection Guide :
●Bridge (Openable) Type: The better choice for clean environments where frequent cable maintenance is required

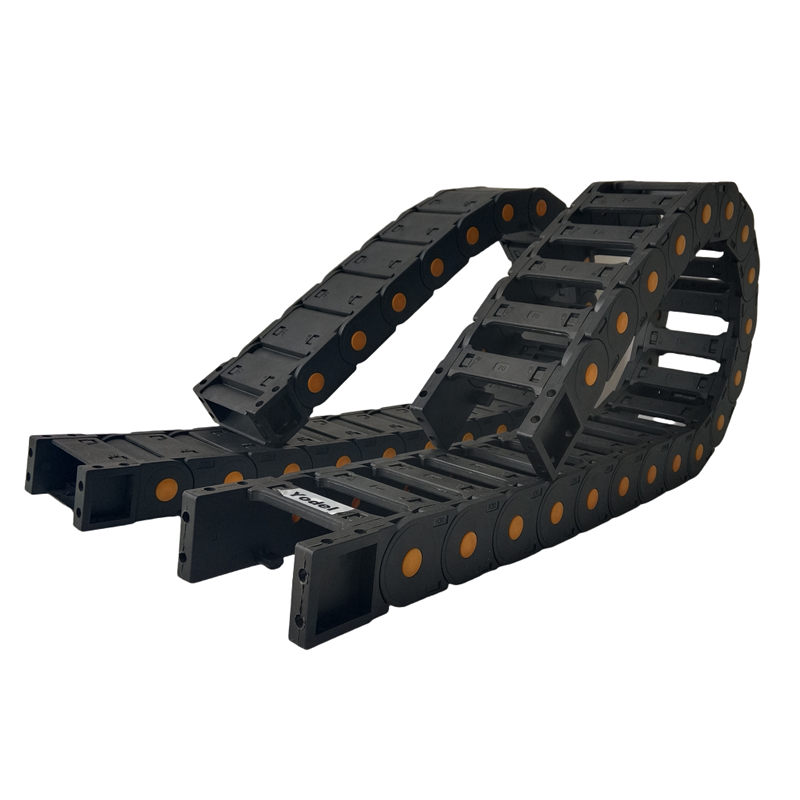

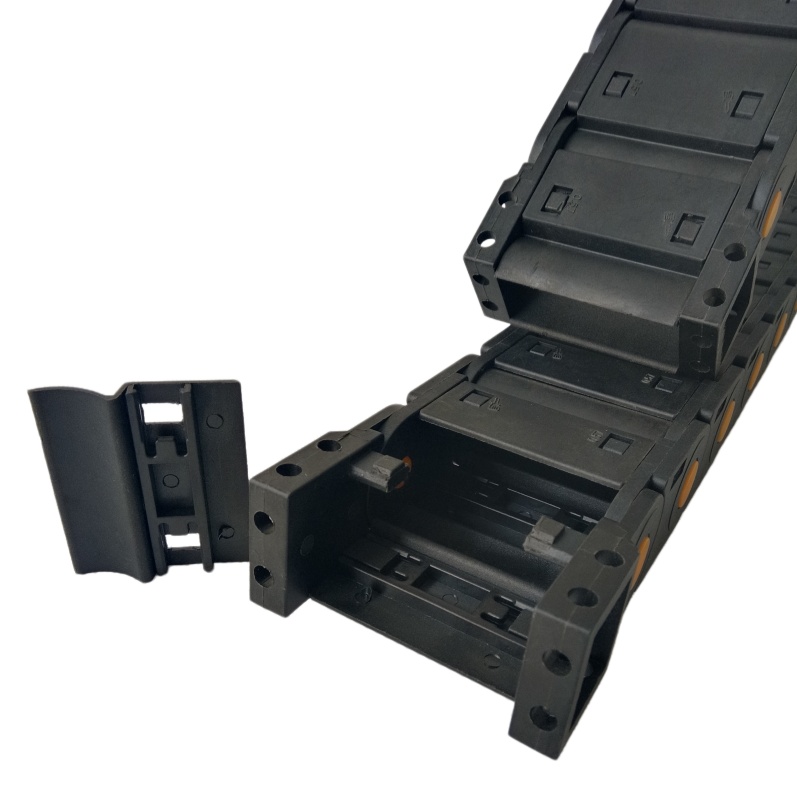

●Fully Enclosed Type: The most reliable cable protection for equipment operating in environments with metal chips, dust, coolant splash, or outdoor conditions

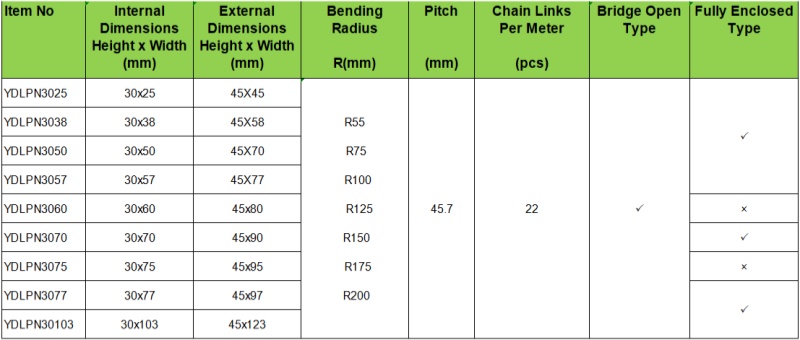

Popular sizes :
(1) 30x38mm-Compact automation, 2-4 small cables
(2) 30x50mm-Most popular – CNC machines, 4-8 cables
(3) 30×57mm-Medium cable bundles, injection molding
(4) 30×75mm-Large cable bundles, robotic arms
