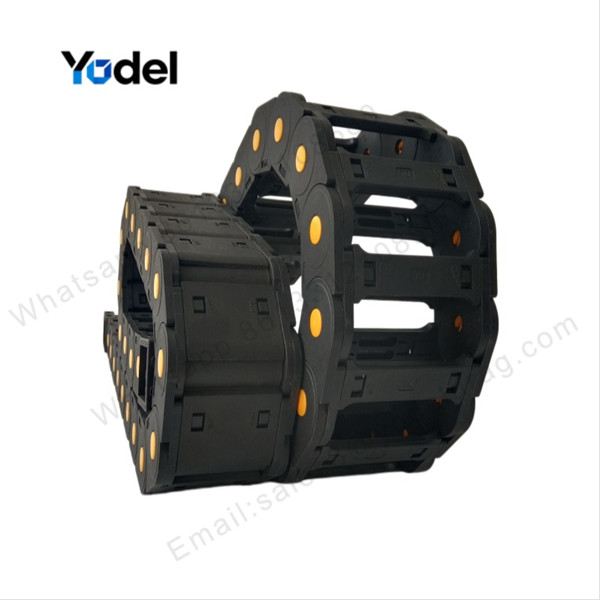

25x38 Drag Chain - Open Style Nylon Cable Carrier

The 25x38 drag chain is an bridge-style cable carrier featuring a 25mm inner height and 38mm inner width, commonly searched as 25x38 cable carrier, 25*38 drag chain, or 25 X 38 drag chain; engineered from virgin PA66 nylon, this 25mm series delivers excellent wear resistance, mechanical strength, and long service life at a highly cost-effective price point; the bridge crossbars design allows for quick cable installation, visual inspection, and routine maintenance without dismantling the entire chain, significantly reducing downtime and labor costs in daily operations.

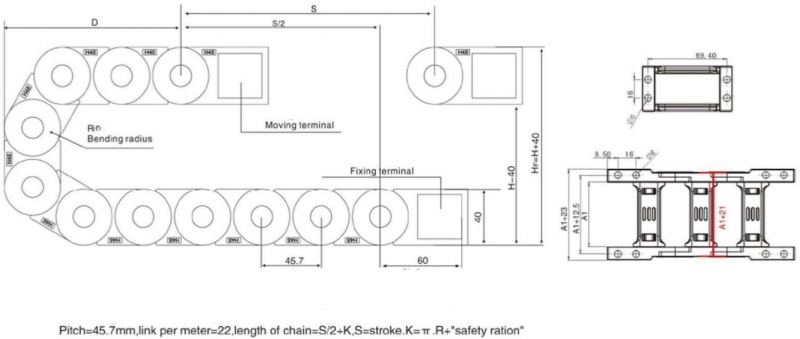

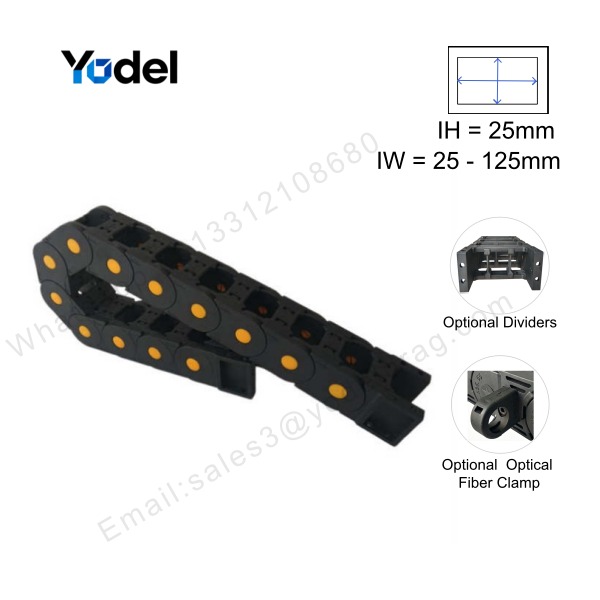

This 25x38mm drag chain accommodates up to 21.5mm diameter of cables or hoses within its 38mm inner width, with outer dimensions of approximately 57mm width and 40mm height depending on the specific bending radius selected; popular bending radii include R55MM, R75mm, R100mm, R125mm, and R150mm to suit various stroke and space constraints; beyond the 25x38 model, this open series also includes 25x57 drag chain, 25x77 drag chain, 25x103 drag chain, and 25x125 drag chain to accommodate larger cable bundle requirements; to further enhance functionality, we offer customizable options including inner separators for cable organization, side-mounted fiber clips for optical cable routing, customized colors, logo printing, and steel mounting brackets for heavy-duty or high-stroke applications.

Ideal for laser cutting machines, glass cutting machines, stone cutting machines, small packaging machinery, machining centers, and container stackers where cable access frequency is high and environmental contaminants are not a primary concern; its open-top structure provides excellent heat dissipation while maintaining reliable cable protection against mechanical stress; for applications requiring full dust, coolant, and spark protection, consider our 25x57 enclosed drag chain  which offers sealed top and bottom covers for harsh CNC and machining environments.
